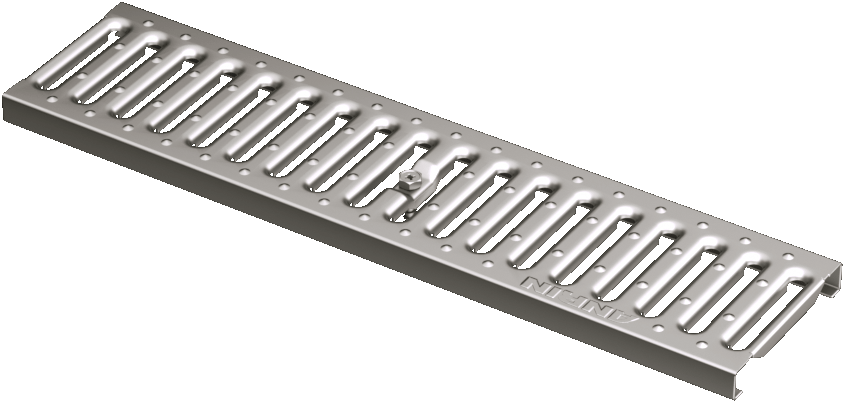

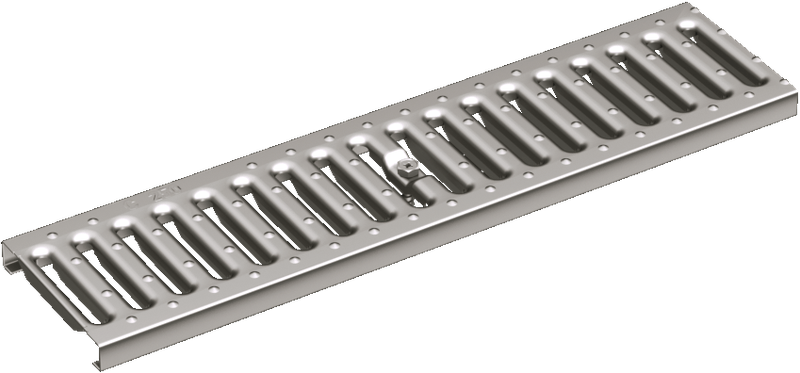

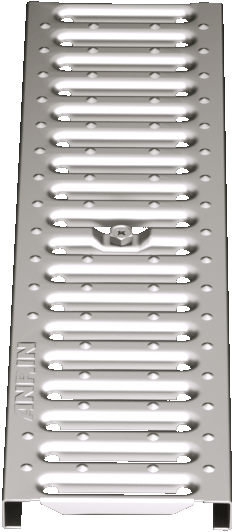

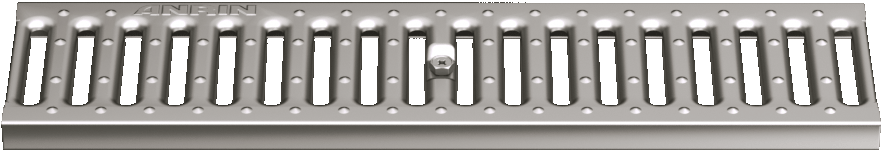

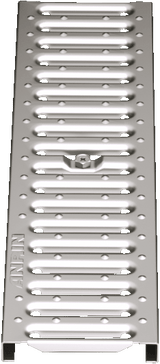

ANRIN Slotted Stainless Steel Grating C Load
ANRIN Slotted Stainless Steel Grating C Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

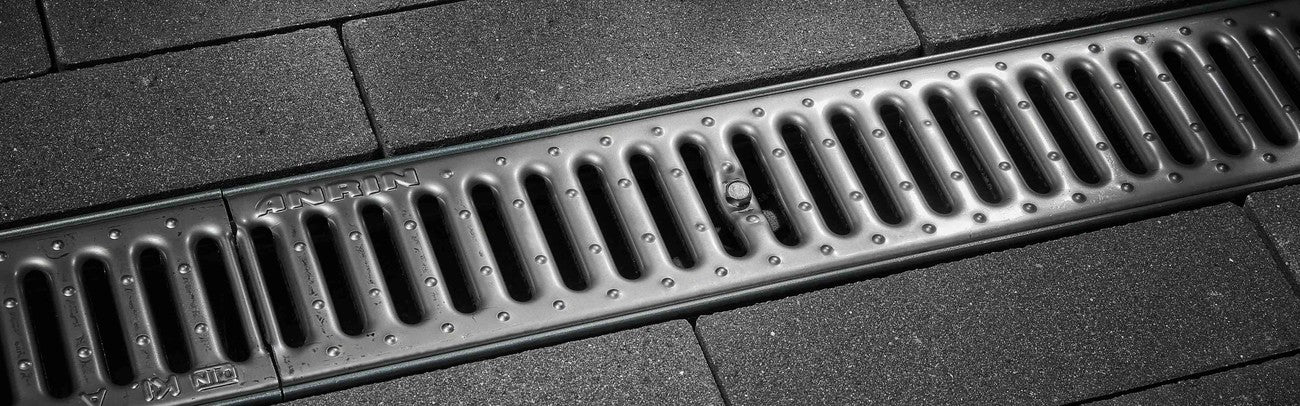

Introducing the ANRIN Slotted Stainless Steel Design Trench Drain Grating, a pinnacle of innovation and durability in drainage solutions. Constructed from premium galvanized steel, this grating is engineered for heavy-duty applications while ensuring optimal performance and corrosion resistance in various environments.
Product Features:
- Material: Made from high-strength galvanized steel, this trench drain grating provides superior durability and protection against rust and wear, ensuring longevity.
- Load Class: Rated C250, it can support loads up to 25 tons, making it suitable for pedestrian use as well as light-to-medium vehicle traffic, providing peace of mind in high-traffic areas.
- Size: Measuring a convenient half meter in length, this grating is easy to install and integrate into existing drainage systems while offering adequate coverage.
- Compatibility: Designed to fit seamlessly with all of ANRIN's KE Series Channels, allowing for straightforward installation and compatibility with a variety of drainage setups.
ANRIN Slotted Stainless Steel Grating C Load
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
