ANRIN Slotted OvalGrip Ductile Iron Grating E Load
ANRIN Slotted OvalGrip Ductile Iron Grating E Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

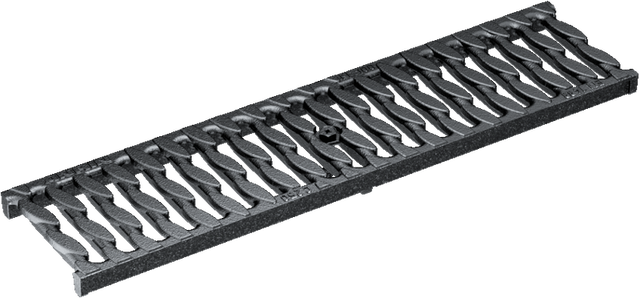

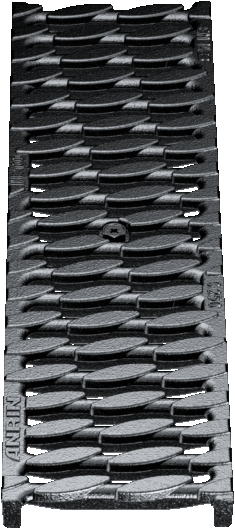

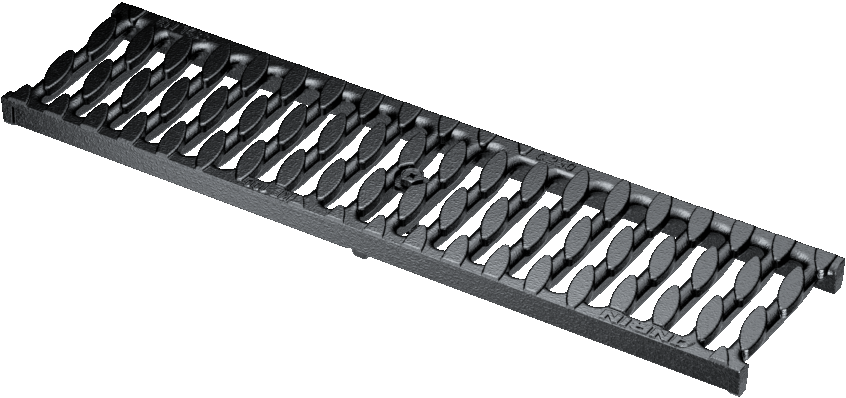

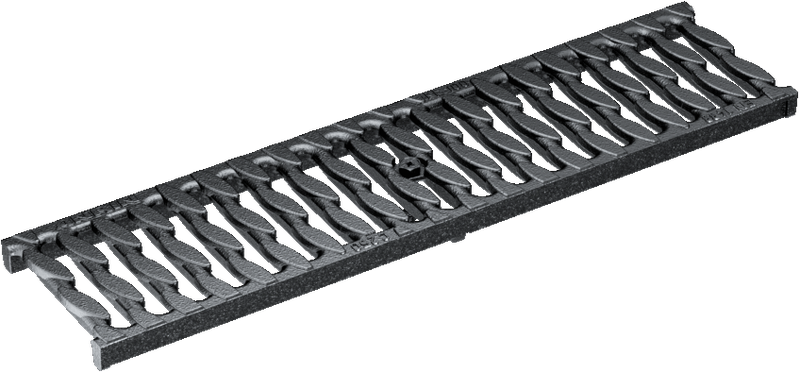

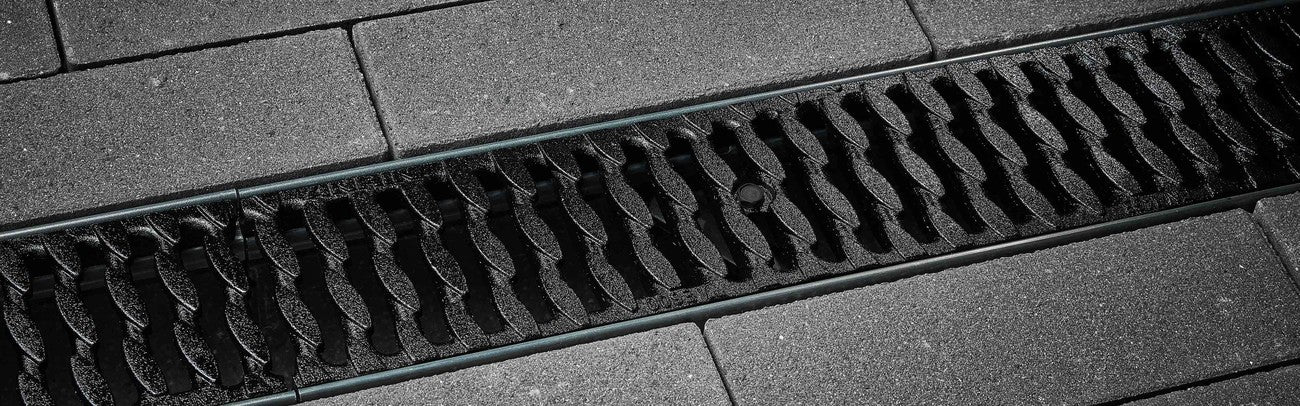

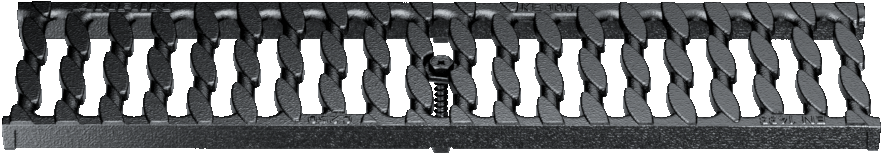

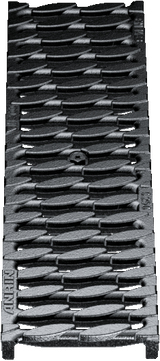

ANRIN Slotted OvalGrip Ductile Iron Grating Design Trench Drain Grating, the ultimate solution for both strength and functionality in demanding drainage environments. Crafted from high-quality ductile iron, this grating is engineered to deliver unparalleled durability and performance, making it an ideal choice for areas that experience heavy foot and vehicle traffic.
Product Features:
- Material: Made from premium ductile iron, renowned for its superior strength and impact resistance, ensuring long-lasting performance even in the most challenging conditions.
- Load Class: Rated E600, this grating can support loads of up to 60 tons, making it perfect for heavy-duty applications, including the passage of trucks and other large vehicles while providing a safe surface for pedestrians.
- Size: Measuring a convenient half meter in length, the grating offers an effective balance between coverage and ease of installation, facilitating seamless integration into existing drainage systems.
- Design: The innovative OvalGrip slotted design promotes optimal water drainage while providing excellent traction, crucial for maintaining safety in high-traffic areas.
- Compatibility: Specifically designed to fit all of ANRIN's KE Series Channels, allowing for a hassle-free installation process.
ANRIN Slotted OvalGrip Ductile Iron Grating E Load
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
