Trench drainage systems help collect and direct surface water away from paved areas, buildings, pedestrian routes, and landscaped spaces. Although drainage performance is the main priority, architects and property owners may also want the system to complement the surrounding design.
Iron Age Designs ARGO trench grates combine drainage functionality with a decorative rolling-wave pattern inspired by the movement of water and wind. The product range includes different dimensions, materials, finishes, load capabilities, and heel-proof configurations, allowing the grates to be considered for several residential, commercial, and public-space applications.
What Are ARGO Trench Grates?
ARGO trench grates are decorative cast-metal covers installed over compatible trench drainage channels or custom frames. Their openings allow rainwater and surface runoff to enter the drainage system while helping prevent larger debris from falling into the channel.
Depending on the selected model, ARGO grates may be available in cast iron, ductile iron, cast aluminium, or cast bronze. Raw metal, baked-on-oil, and powder-coated finishes may also be available for certain configurations. Product specifications differ by size, material, drainage capacity, frame compatibility, and expected loading conditions.
Several ARGO models are listed as ADA compliant, while selected versions are described as heel-proof or heavy-duty. These features can make the collection suitable for pedestrian environments and locations where accessibility, footwear safety, and structural performance must be considered.

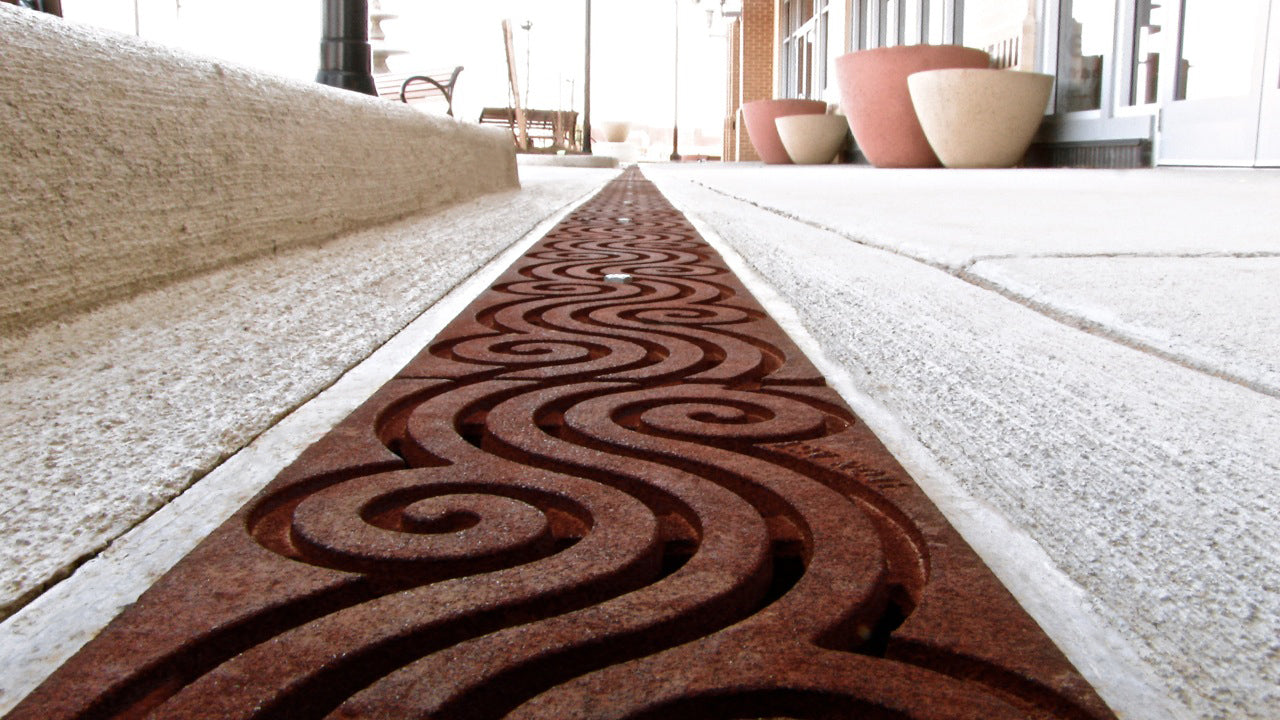

Where Can Iron Age Designs ARGO Trench Grates Be Installed?
The answer depends on the drainage requirements, expected traffic, channel dimensions, surrounding materials, and local construction standards. ARGO trench grates have been used in residential patios, pool decks, shopping centres, parks, plazas, driveways, waterfront developments, event lawns, and public greenways.
Residential Patios and Courtyards
Patios and courtyards can collect water during heavy rainfall, especially where paving slopes toward the home or another enclosed area. A trench drain placed along the edge of the patio, near an entrance, or between different paving sections can help intercept runoff.
ARGO grates may suit residential spaces where a conventional utility grate would appear visually intrusive. The patterned metal surface can work alongside stone, concrete, brick, or architectural paving. The manufacturer’s project gallery includes an ARGO installation on a residential patio in Bellingham, Washington.
Pool Decks
Pool decks require effective drainage to remove splash water and rainwater from walking surfaces. Trench grates may be positioned around pool perimeters, beside deck transitions, or near areas where water naturally accumulates.
An ARGO cast-aluminium heel-proof grate has been documented in a residential pool-deck installation. However, material selection is important in pool environments because moisture, chemicals, temperature, corrosion exposure, and barefoot use can affect suitability. The drainage designer should verify the selected material, finish, surface temperature, opening size, and maintenance requirements before installation.
Public Plazas and Pedestrian Areas
Public plazas experience regular foot traffic and often contain large areas of hard paving. Without suitable drainage, water may collect near seating zones, entrances, ramps, landscaping, and pedestrian crossings.
ARGO grates have been installed in plaza projects, including Ironworks Plaza and Rink in Mishawaka, Indiana. Some grates used in this project were heel-proof and produced in cast ductile iron with a baked-on-oil finish.
For public pedestrian areas, specifiers should assess accessibility requirements, slip resistance, drainage capacity, opening dimensions, expected traffic, and integration with adjoining pavement.
Parks and Waterfront Developments
Parks and waterfront spaces may need drainage along promenades, gathering areas, paths, viewing zones, and landscape boundaries. The grate design can become more noticeable in these environments because drainage lines often run through prominent public areas.
ARGO trench grates have appeared in projects such as Vancouver Waterfront Park, Windjammer Park, and San Pedro Creek Culture Park. These installations demonstrate how decorative drainage components can be incorporated into landscape architecture without treating the grate as a purely concealed utility element.
Driveways and Vehicle-Access Areas
Trench drains are commonly installed across driveway entrances, at garage thresholds, near parking areas, and wherever sloped paving directs water toward a structure.
The ARGO project gallery includes a church plaza installation identified as a driveway application. Heavy-duty ARGO configurations are also available in selected sizes.
Not every ARGO grate is intended for the same load. Before using one in a vehicle-access area, the project team must confirm the required load rating, frame support, channel construction, traffic type, wheel path, installation method, and applicable engineering standards.
Shopping Centres and Commercial Properties
Shopping centres, hotels, offices, restaurants, and mixed-use developments often require drainage around entrances, outdoor seating areas, loading zones, internal courtyards, walkways, and landscaped edges.
ARGO grates can provide a more coordinated appearance where drainage channels pass through customer-facing spaces. A documented ARGO installation at a Seattle shopping centre used heel-proof cast ductile iron grates.
Curved Landscape and Architectural Features
Drainage channels do not always follow straight lines. Curved walkways, circular plazas, fountains, event lawns, and rounded landscape features may require radius grates.
Iron Age Designs offers radiused ARGO trench grate configurations for compatible custom frames. These have been used in locations such as an event lawn, a city hall project, and public park developments. Radius requirements should be confirmed early because the frame, grate dimensions, clear opening, and overall drainage layout must align precisely.
Factors to Check Before Installation
Drainage Capacity
The grate and channel must handle the anticipated volume of surface water. Designers should consider rainfall intensity, catchment area, paving slope, outlet capacity, free drain area, and the possibility of debris accumulation.
Load Requirements
Pedestrian areas, driveways, plazas, and service routes place different structural demands on drainage grates. The selected model should match the expected load and be supported by a correctly designed frame and trench system.
Accessibility and Heel-Proof Design
Where pedestrian accessibility is required, verify the applicable regulations rather than relying only on appearance. Several ARGO models are identified as ADA compliant, and selected products are offered in heel-proof configurations.
Material and Finish
Cast iron develops a natural oxidised surface when exposed to moisture. Aluminium, bronze, baked-on-oil finishes, and powder coatings may provide different appearances and maintenance characteristics. Material selection should reflect the environment, expected wear, desired appearance, and exposure conditions.
Channel and Frame Compatibility
ARGO grates are offered in different sizes and may fit specific drainage systems or Iron Age custom frames. Exact measurements should be confirmed before ordering. Installation details should also account for transitions, end conditions, corners, fastening, and any cutting required on site.
Conclusion
ARGO trench grates can be installed in a wide range of settings, including patios, pool decks, public plazas, parks, waterfront developments, shopping centres, driveways, pedestrian routes, event lawns, and curved landscape features.
The correct application depends on more than visual preference. Drainage capacity, load rating, accessibility, material, finish, frame compatibility, maintenance, and local standards must all be reviewed. When specified correctly, ARGO trench grates can support effective surface-water management while providing a decorative alternative to standard drainage covers.
