Effective surface drainage is important in outdoor spaces where rainwater can collect near walkways, entrances, stairs, plazas and landscaped areas. A trench drain helps collect this water and direct it away from the surface. However, the grate covering the drainage channel must also provide a suitable walking surface.
INTERLAKEN heel-proof trench grates combine water management with a decorative pattern designed for pedestrian areas. Their smaller openings reduce the possibility of narrow footwear heels entering the grate while still allowing surface water to pass into the drainage channel.
These grates are available in different materials and configurations for use in architectural, commercial and public environments. Understanding how they work can help architects, landscape designers, contractors and property managers determine whether they are suitable for a particular project.
What Is an INTERLAKEN Heel-Proof Trench Grate?

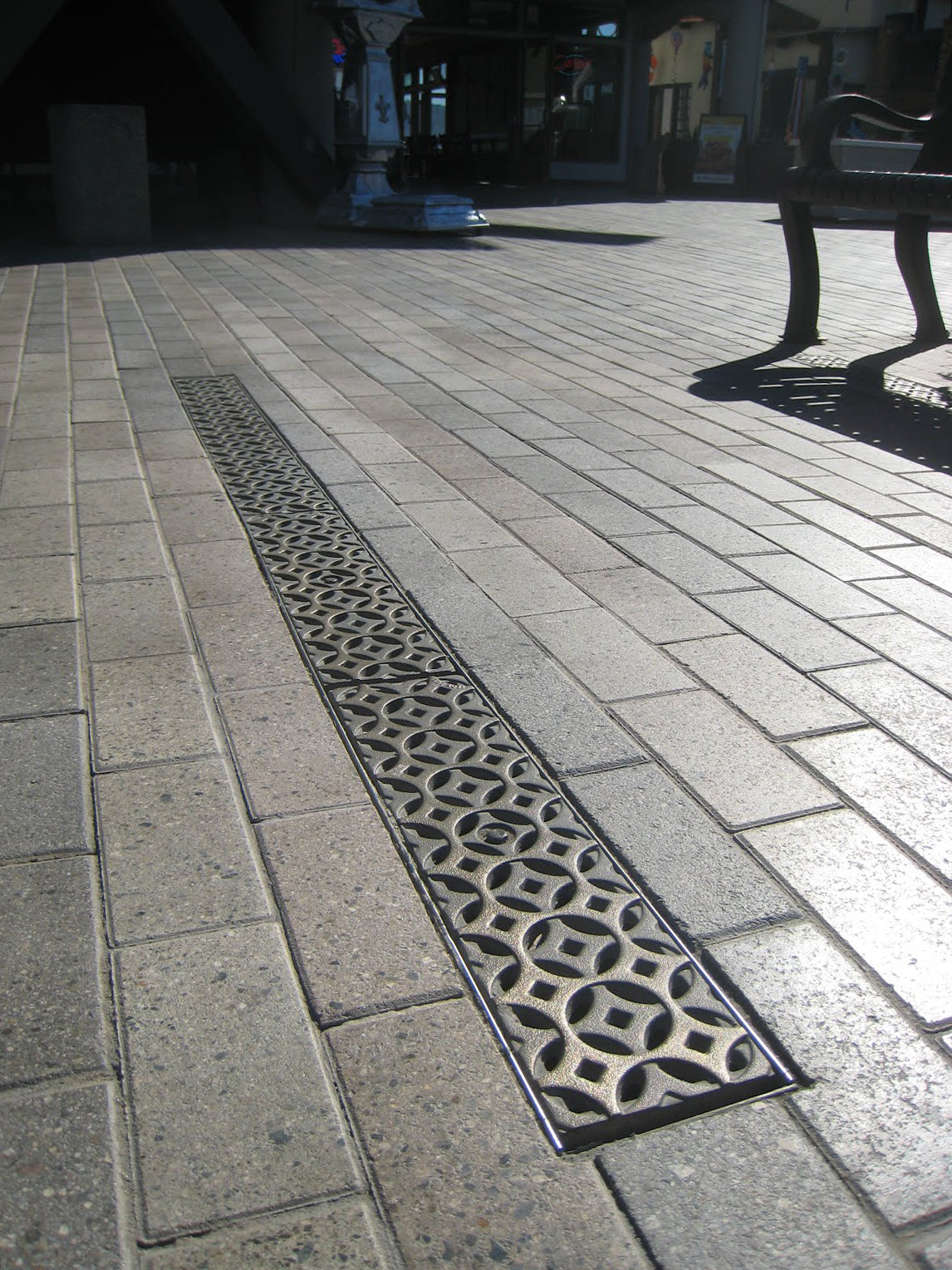

An INTERLAKEN heel-proof trench grate is a decorative metal cover installed over a linear trench drainage channel. The grate forms the visible walking surface while protecting the channel below.
The INTERLAKEN pattern is designed to provide drainage openings without relying on large, straight slots. Product examples include approximately 5-inch-wide grates manufactured in cast aluminium or ductile iron. The grates may also be supplied in straight or radius configurations, depending on the drainage layout.
The term “heel-proof” refers to the reduced size of the openings. Some INTERLAKEN product specifications describe heel-proof openings with a maximum width of approximately one-quarter inch. These smaller gaps are intended to reduce the risk of narrow heels becoming caught in the grate.
How the Drainage Process Works
The system operates through a straightforward collection and discharge process.
Rainwater or surface runoff first travels across the surrounding pavement. The pavement is normally constructed with a slight slope that guides the water towards the trench drain. Once the water reaches the grate, it passes through the patterned openings and enters the channel below.
The drainage channel then carries the collected water towards an outlet, underground drainage pipe, stormwater system or another approved discharge point. The grate does not store or dispose of water by itself. Its function is to provide an entry point while covering and protecting the drainage channel.
Water Enters Through Multiple Openings
Rather than using one wide opening, the INTERLAKEN design distributes smaller drainage spaces across the grate. This allows water to enter at several points while maintaining a more continuous walking surface.
The total drainage performance depends on more than the appearance of the grate. Factors such as the open area, trench dimensions, channel slope, outlet capacity and expected rainfall must all be considered during system design.
Small heel-proof openings can collect dirt and debris more easily than wider industrial grates. Therefore, drainage capacity should be evaluated alongside the expected maintenance requirements.
The Grate Supports Surface Movement
The grate is seated within a frame or drainage channel so that its upper surface aligns with the surrounding pavement. When installed correctly, this creates a relatively even transition across the trench.
The metal structure carries pedestrian loads and transfers them to the supporting channel or frame. Certain INTERLAKEN cast-metal models are also described as suitable for high-traffic locations and driveways, although the selected product’s load rating and installation requirements should always be confirmed before vehicle use.
Why the Heel-Proof Design Matters
Traditional drainage grates may contain openings that are wide enough for narrow shoe heels, walking aids or small wheels to enter. This can create discomfort and increase the possibility of trips or falls.
Heel-proof grates use narrower openings to provide a more suitable surface in pedestrian-focused environments. Similar drainage products are commonly used to reduce the chance of heels, crutches and stroller wheels becoming trapped in the grate.
This feature can be useful in areas such as:
-
Public plazas and civic spaces
-
Hotel and commercial entrances
-
Shopping and entertainment districts
-
Pedestrian walkways
-
Parks and landscaped paths
-
Stairways and terraces
-
Courtyards and building perimeters
The grate pattern can also contribute to the visual character of the space. This makes decorative trench grates suitable for projects where drainage infrastructure must remain visible but should not appear purely industrial.
Materials and Finish Options
INTERLAKEN trench grates may be produced from materials such as cast aluminium, cast iron or ductile iron. Material selection affects weight, appearance, corrosion behaviour, load performance and maintenance.
Raw cast aluminium can provide a lighter grate with a natural metal appearance. Cast or ductile iron offers a heavier structure and is commonly selected where strength and traditional architectural character are important. Some models are available with a baked-on-oil finish, while others may be supplied raw so that their appearance can develop naturally or receive a project-specific finish.
The correct material should be selected according to site exposure, pedestrian or vehicle loads, drainage conditions and the surrounding design.
Installation and Maintenance Considerations
Proper installation is necessary for effective drainage. The trench must be positioned at the appropriate low point, and the surrounding pavement should direct water towards it. The channel, outlet and underground pipework must also be sized for the expected runoff.
The grate should sit securely within the compatible frame or channel without rocking or creating raised edges. Contractors must confirm product dimensions because similar grates may be manufactured for specific channel widths and systems.
Routine maintenance generally involves removing leaves, sediment, litter and other material from the grate openings. The grate may also need to be lifted periodically so that the channel and outlet can be cleaned. This is particularly important for heel-proof designs because smaller openings may become blocked faster than wider openings.
Conclusion
INTERLAKEN heel-proof trench grates work by allowing surface water to pass through a decorative pattern of small openings into a linear drainage channel. The channel then carries the water towards the designated outlet.
Their narrow openings provide a more practical walking surface for areas used by pedestrians wearing narrow-heeled footwear or using small-wheeled equipment. At the same time, the architectural pattern allows the drainage system to complement its surroundings.
Successful performance depends on selecting the correct material, load rating and channel size, followed by accurate installation and regular cleaning. When these factors are properly addressed, an INTERLAKEN heel-proof trench grate can provide effective surface drainage without compromising the appearance or usability of a pedestrian space.
