Unistrut is a widely used metal framing system designed for structural support in construction, electrical work, mechanical installations, and industrial applications. It provides a flexible way to build support structures without the need for welding or complex fabrication. To understand its usefulness, it is important to look at how Unistrut works, what it is made of, and how its components are assembled into a complete system.
What Is Unistrut?

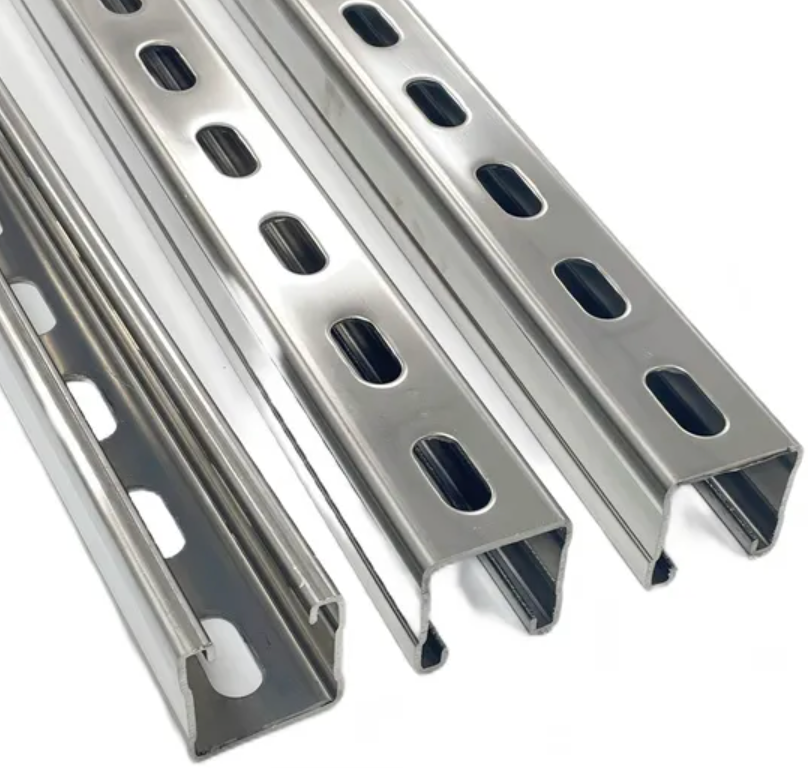

Unistrut is a channel-based metal framing system that consists of a C-shaped or U-shaped steel channel with inward-facing lips. These lips are designed to hold special spring-loaded nuts and fittings, which allow components to be attached anywhere along the length of the channel.
The system was developed to simplify structural support work by replacing welded frames with a modular system that can be assembled and adjusted on-site. It is commonly used for supporting pipes, electrical conduits, HVAC systems, and cable trays.
Unistrut is typically made from materials such as galvanized steel, stainless steel, or aluminum, depending on the environment and load requirements.
Key Components of a Unistrut System
To understand how Unistrut works, it is important to know its main components:
1. Strut Channels
The primary structural element is the channel itself. It provides the framework and load-bearing capacity. Channels come in different sizes and thicknesses depending on the application.
2. Fittings and Brackets
Fittings are used to connect channels together or attach other materials. These include angles, tees, and cross connectors that help build complex structures.
3. Spring Nuts
Spring nuts slide into the channel and rotate into place behind the lips. They create secure anchor points for bolts and fittings anywhere along the channel.
4. Bolts and Fasteners
Standard bolts are used to tighten fittings into place. Once tightened, they lock the system firmly while still allowing adjustments before final tightening.
How Unistrut Works in Practice
At its core, Unistrut works as a modular framing system. The channel acts as a continuous mounting surface, and the spring nuts allow components to be attached at any point without pre-drilled holes.
This flexibility means that installers can quickly assemble support structures without welding or cutting metal on-site. Instead of creating fixed joints, Unistrut allows for adjustable connections that can be modified if project requirements change.
For example, a pipe support system can be built by attaching hangers to a horizontal Unistrut channel mounted to a ceiling or wall. The position of each hanger can be adjusted simply by loosening and sliding the spring nut.
How Unistrut Gets Put Together
The assembly process is straightforward and designed for efficiency. Understanding the step-by-step process helps explain the keyword concept: How Unistrut Works: What It Is and How It Gets Put Together.
Step 1: Planning the Layout
Before installation, the structure is measured and planned. The load requirements and spacing between supports are determined based on engineering guidelines.
Step 2: Cutting and Positioning Channels
Unistrut channels are cut to the required lengths using standard metal cutting tools. The channels are then positioned and secured to walls, ceilings, or floors using anchors or brackets.
Step 3: Inserting Spring Nuts
Spring nuts are inserted into the channel and rotated 90 degrees so they lock behind the channel lips. These act as movable anchor points for attachments.
Step 4: Attaching Fittings
Brackets, connectors, or support arms are aligned with the spring nuts. Bolts are inserted and hand-tightened first to allow adjustment.
Step 5: Final Tightening
Once alignment is confirmed, all bolts are fully tightened. This locks the structure in place while maintaining a strong and stable frame.
Advantages of Using Unistrut
Unistrut systems are widely used because they offer several practical benefits:
Flexibility
Components can be adjusted or repositioned without dismantling the entire structure.
No Welding Required
Since the system uses bolts and fittings, there is no need for welding, which reduces installation time and safety risks.
Reusability
Parts can be disassembled and reused in different configurations, making it cost-effective for temporary or changing installations.
Strength and Durability
Despite its modular nature, Unistrut is capable of handling heavy loads when properly installed.
Common Applications of Unistrut
Unistrut is used across multiple industries due to its adaptability:
-
Electrical cable support systems
-
HVAC duct and pipe mounting
-
Mechanical equipment framing
-
Solar panel mounting structures
-
Industrial shelving and support frames
Each application benefits from the system’s ability to be customized on-site without specialized fabrication.
Conclusion
Understanding How Unistrut Works: What It Is and How It Gets Put Together reveals why this system is widely used in modern construction and industrial settings. Its simple yet effective design allows for fast installation, easy adjustments, and reliable structural support.
By combining channels, spring nuts, and fittings, Unistrut creates a flexible framework that replaces traditional fixed metal structures. This modular approach continues to make it a practical solution for engineers, electricians, and contractors working on diverse projects.
