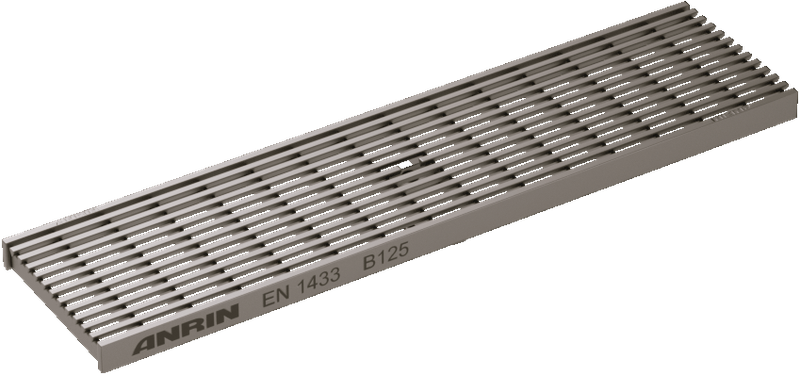

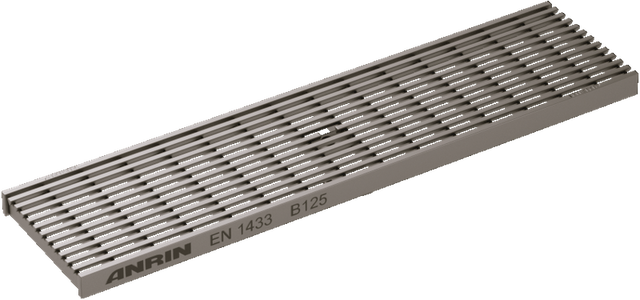

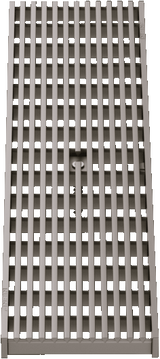

ANRIN Longitudinal ADA HP Stainless-Steel Grating
ANRIN Longitudinal ADA HP Stainless-Steel Grating is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

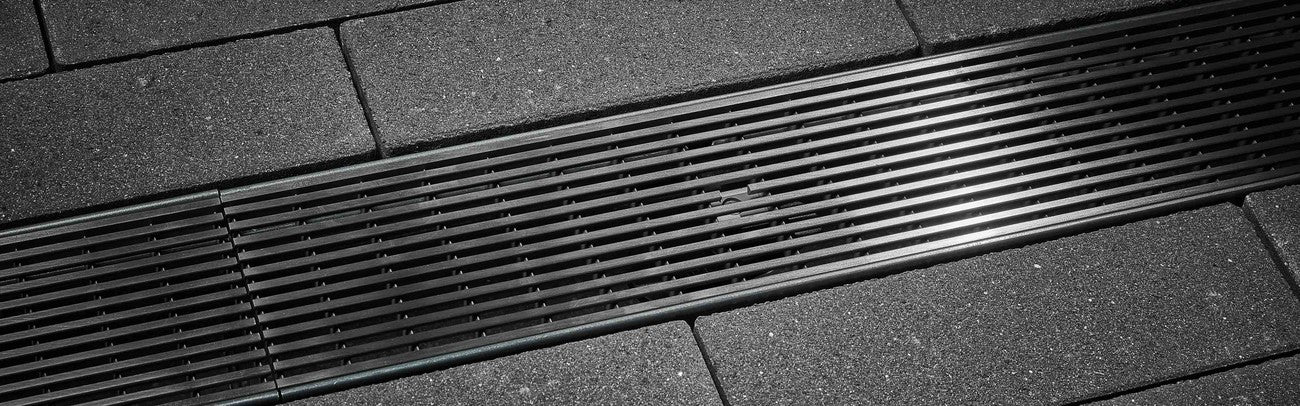

Elevate your drainage solutions with the ANRIN Longitudinal ADA HP Stainless-Steel Trench Drain Grating, engineered for performance and durability in demanding environments. This high-quality grating is crafted from premium stainless steel, offering exceptional resistance against corrosion and wear, making it the ideal choice for heavy-duty applications.
Product Features:
- Material: Constructed from robust stainless steel, ensuring longevity and resistance to a variety of environmental elements.
- Load Class: Rated D400, this trench drain grating can withstand loads up to 40 tons, making it perfect for heavy traffic areas including both pedestrian and vehicle applications.
- ADA Compliant: Designed in accordance with the Americans with Disabilities Act (ADA), this grating provides a safe and accessible solution for all users.
- Compatibility: Fits flawlessly with all of ANRIN's KE100 Series Channels, ensuring easy installation and a perfect fit for your drainage systems.
ANRIN Longitudinal ADA HP Stainless-Steel Grating
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
