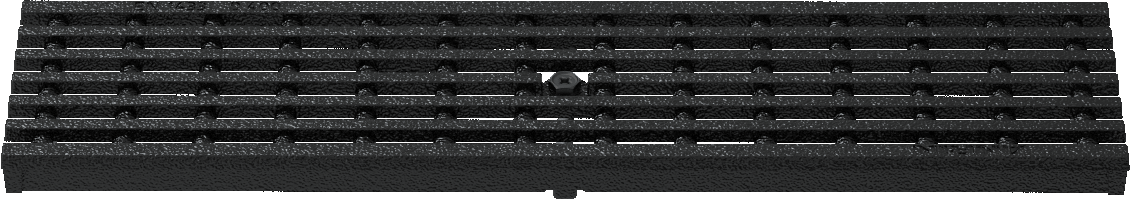

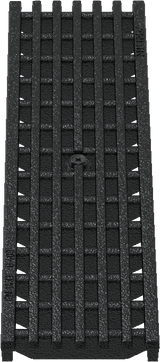

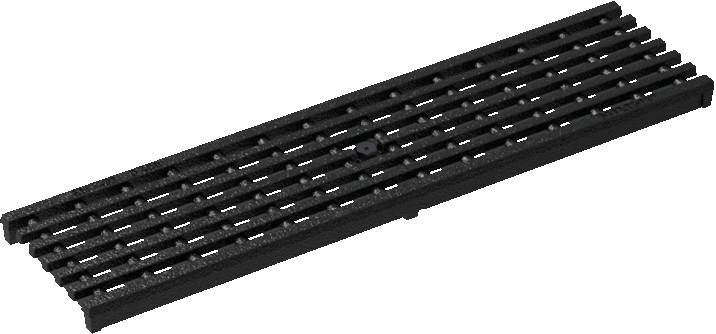

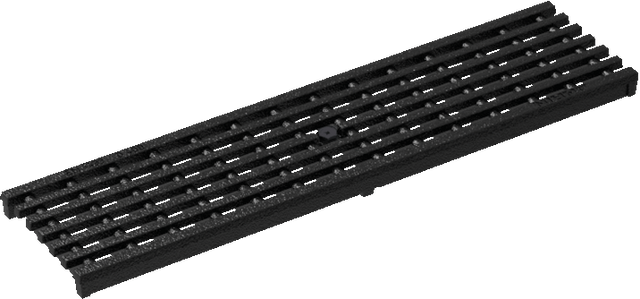

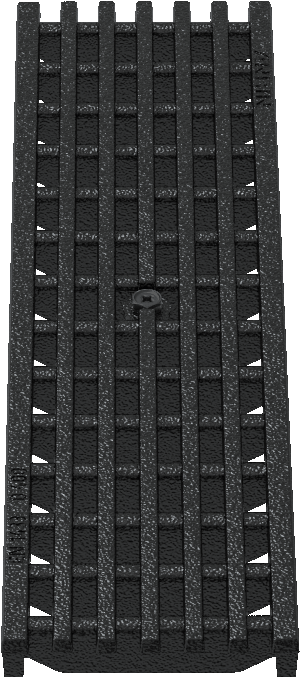

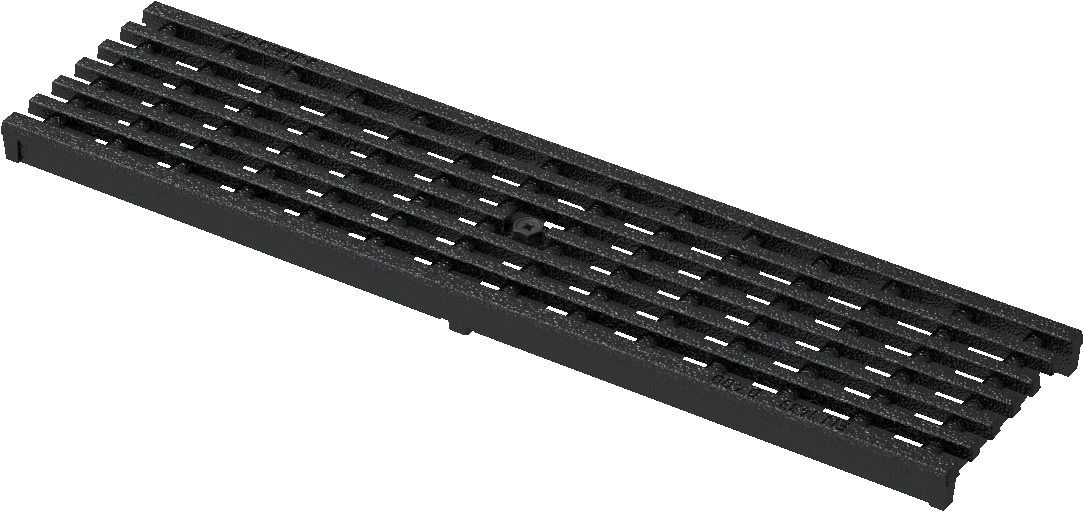

ANRIN Longitudinal ADA Ductile Iron Bar Grating D Load
ANRIN Longitudinal ADA Ductile Iron Bar Grating D Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

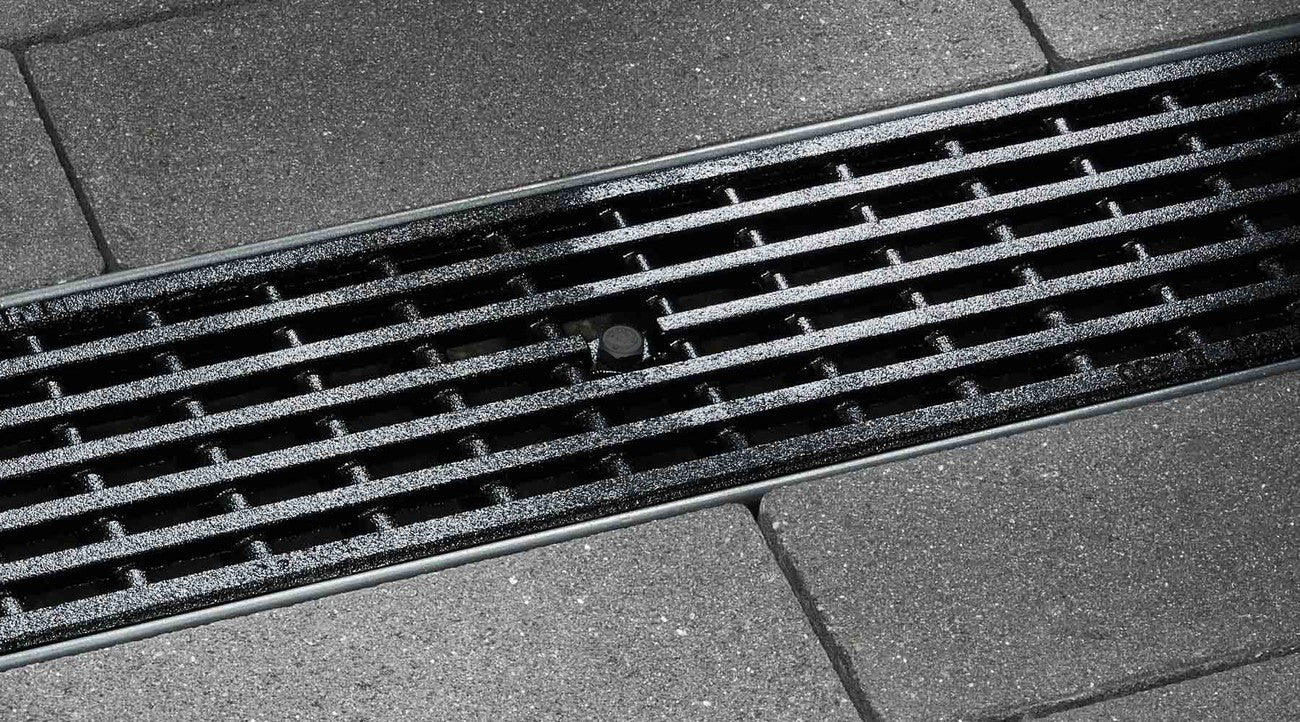

ANRIN Longitudinal ADA Ductile Iron Bar Grating Design Trench Drain Grating, the ideal solution for durable and reliable drainage in high-demand environments. Constructed from high-quality ductile iron, this grating is built to offer exceptional strength and longevity, making it a perfect choice for both pedestrian and vehicular applications.
Product Features:
- Material: Made from premium ductile iron, this grating provides superior strength and impact resistance, ensuring a long service life even in heavy-duty situations.
- Load Class: Rated D400, it can support loads up to 40 tons, making it suitable for heavy vehicle traffic as well as pedestrian use, ensuring safety and functionality in busy areas.
- Size: Measuring a convenient half meter in length, it strikes the perfect balance between coverage and ease of installation, allowing for simple integration into existing drainage systems.
- ADA Compliant: Designed to meet the Americans with Disabilities Act (ADA) standards, this grating features a smooth surface that enhances accessibility for all users, including those with mobility challenges.
- Compatibility: Fits seamlessly on all of ANRIN's KE Series Channels, promoting hassle-free installation and integration.
ANRIN Longitudinal ADA Ductile Iron Bar Grating D Load
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
