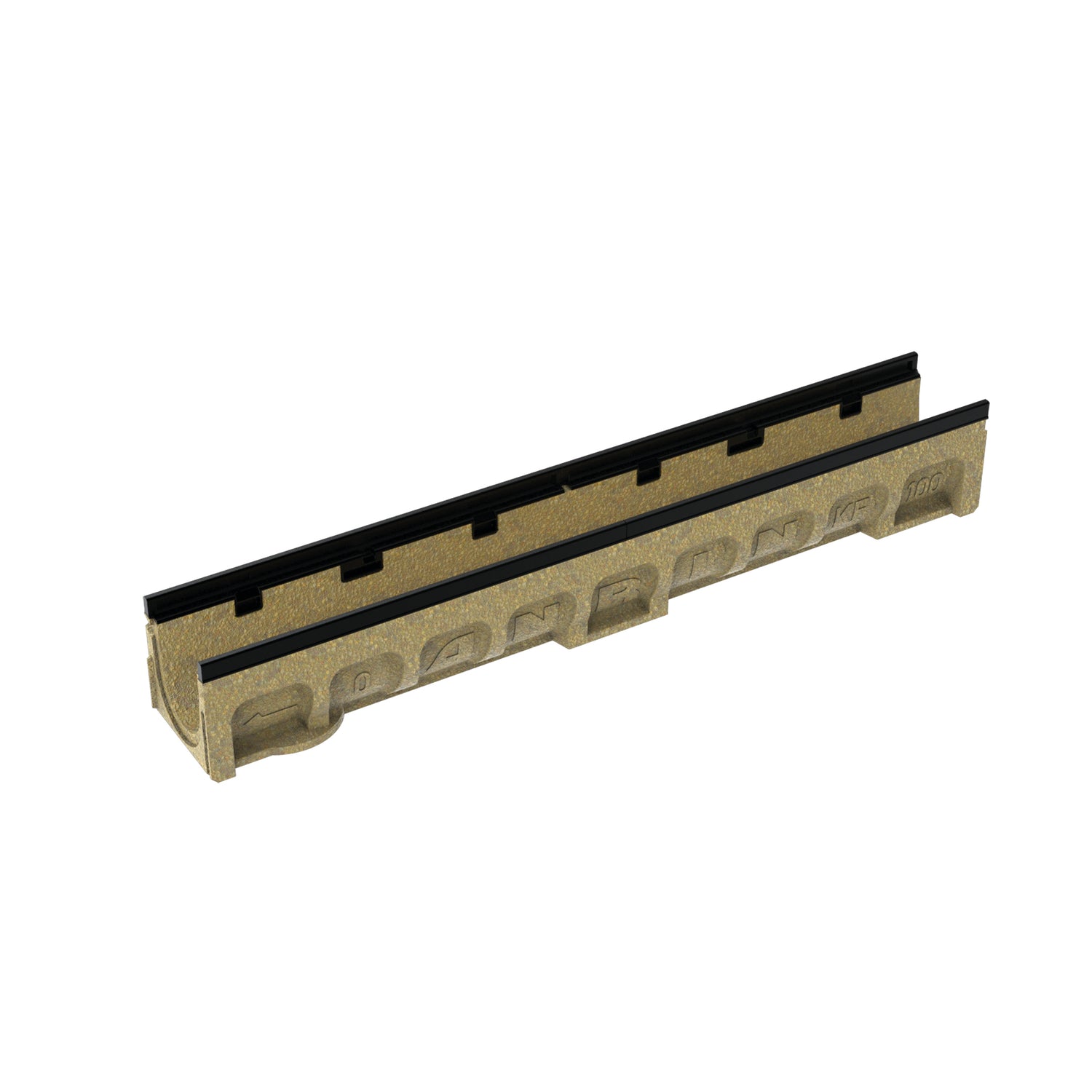

ANRIN KF100 - 4" Wide Cast Iron Reinforced Edge Trench Drain Channel
ANRIN KF100 - 4" Wide Cast Iron Reinforced Edge Trench Drain Channel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Elevate your drainage solutions with the ANRIN KF100 Cast Iron Reinforced Edge Trench Drain Channel, engineered for durability, strength, and efficient water management. This robust drainage system is crafted from high-quality cast iron, making it an ideal choice for high-traffic areas where reliability is paramount.
Product Features:

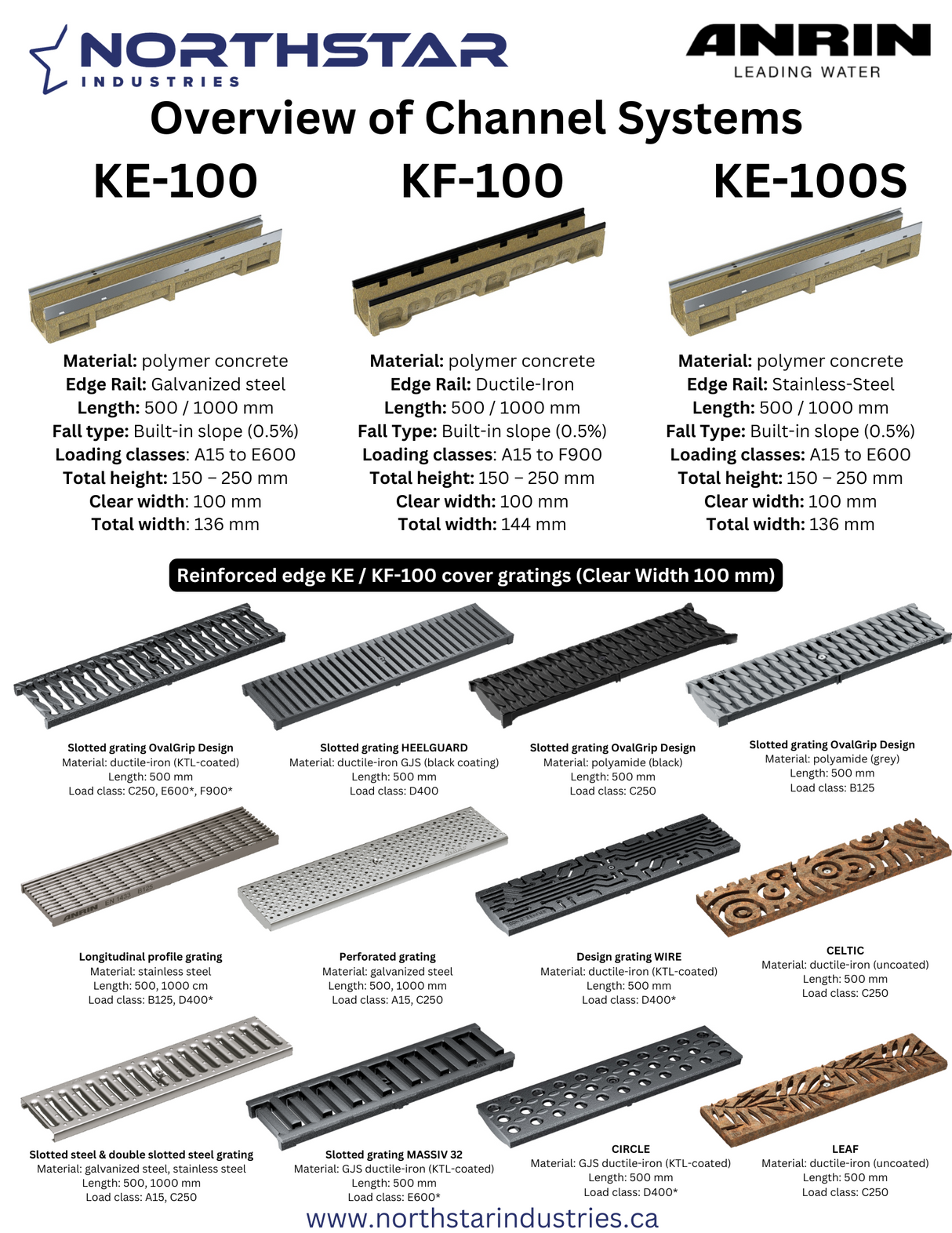

- Versatile Channel Options: The KF100 system offers both neutral channels and channels with a built-in slope of 0.5%, ensuring optimal drainage in diverse applications.

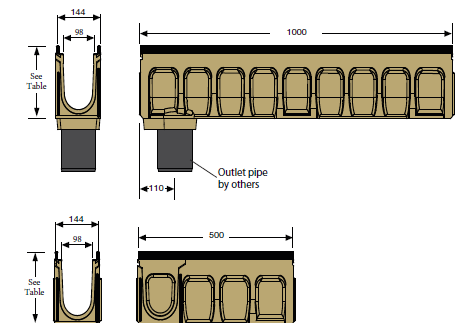

- Depth Variability: Channel depths range from 150mm to 250mm, allowing you to select the right option for your specific project requirements (refer to the spec sheet for detailed specifications).
- Standard Width: Each channel has a width of 144mm, providing ample space for effective water flow while maintaining design integrity.
- Length Availability: Available in convenient lengths of 500mm and 1000mm, facilitating ease of installation and adaptability to various project scales.
- Load Bearing Capacity: Designed to support loads up to F900, depending on the paired grating, ensuring safety and durability in environments with heavy vehicular traffic.
Applications:
The ANRIN KF100 trench drain channel excels in a variety of applications, including:
- Heavy-Duty Projects: Ideal for roadway drainage, parking lots, and industrial sites where load-bearing capacity is critical.
- Public Infrastructure: Perfect for urban environments, including streets and pedestrian walkways, where effective drainage is essential for safety and accessibility.
- Commercial Spaces: Suitable for service areas, shopping centers, and outdoor venues that require reliable drainage solutions.
At NorthStar Industries, we are committed to supporting your design needs. If you require tailored solutions or expert guidance on implementing the ANRIN KF100 system in your projects, contact our team directly . Let us help you create the best drainage solution tailored to your specific requirements!
ANRIN KF100 - 4" Wide Cast Iron Reinforced Edge Trench Drain C...
Specifications
Specifications
-
Material
-
Edge Rail MaterialCast Iron
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width
-
Joint Formation
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
