ANRIN

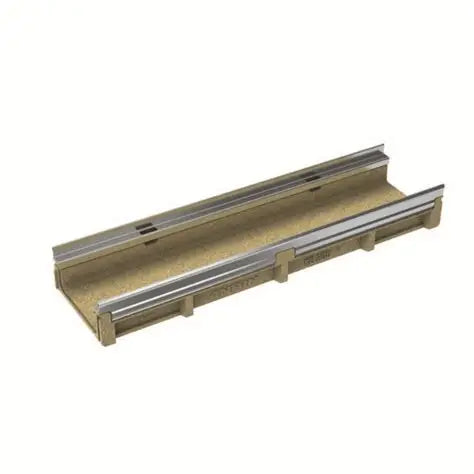

ANRIN KE200-200 8" Wide Stainless Steel Reinforced Edge Trench Drain Shallow Channel

$29201
Shipping calculated at checkout.

ANRIN K200-200 Polymer Concrete Trench Drain, designed for efficiency and versatility in a compact profile. Featuring a robust load rating of up to E600, this trench drain is an excellent choice for high-load applications. Its neutral fall type design combined with a total height of just 130mm makes it the shallowest option in its category, making it perfect for installations where depth is limited.

Constructed from high-quality polymer concrete, the K200-200 delivers exceptional durability and resistance to corrosion, ensuring long-lasting performance even in the most challenging environments. The stainless steel edge rails provide added strength and a sleek, modern finish that enhances the overall aesthetic of any installation, making it a smart choice for both practical and visual appeal.

Best Applications for the ANRIN K200-200 Trench Drain:

  • Residential Driveways and Patios: Ideal for maintaining a clean, dry surface while integrating seamlessly into outdoor spaces without overwhelming the design.

  • Commercial Parking Lots: Efficiently directs water away from vehicle pathways, preventing flooding and providing safe access for cars and pedestrians.

  • Walkways and Pedestrian Areas: Great for pathways, sidewalks, and public spaces, ensuring quick and effective drainage to minimize slip hazards.

  • Swimming Pool Surrounds: Perfect for pool decks where shallow designs are necessary for effective drainage while allowing for a seamless look.

  • Outdoor Sporting Facilities: Suitable for multipurpose fields and recreational areas, facilitating efficient water runoff in high-traffic locations.

  • Light Industrial Applications: Effective for managing water in light industrial settings where surface mounting or shallow installations are essential.

Available exclusively in North America from NorthStar Industries, the ANRIN K200-200 Polymer Concrete Trench Drain with Stainless Steel Edge Rails combines quality and innovation for all your drainage needs. Trust NorthStar Industries to deliver top-tier products that meet the demands of your projects while enhancing overall functionality and appeal. Choose the ANRIN K200-200 for effective and stylish water management solutions!

At NorthStar Industries, we are committed to supporting your design needs. If you require tailored solutions or expert guidance on implementing the ANRIN KE200 system in your projects, contact our team directly . We’re here to help you create the best drainage solution tailored to your specific requirements.

Specifications
  • Material
    Polymer Concrete
  • Edge Rail Material
    Stainless Steel
  • Length (mm)
    1000 (39.37in)
  • Width (mm)
    264
  • Height (mm)
    130 (5.12in)
  • Weight (kg)
    22.2(48.94lbs.)
  • Nominal Width
    200
  • Joint Formation
    UNILINK - Joint
  • Clasp
    SnapLock Fastening
  • Load Capacity
    E600

Applications

Designed in accordance with DIN 19580 / EN 1433
Drainage channel made of polymer concrete
Integrated stainless steel edge rails
One-meter channel with knockout patterns for T-junctions, elbow joints, cross junctions
UNILINK joint system, elements of equal installation heights can be joined in any direction
For installation of ANRIN KE200 grating with SnapLock fastening

The anrin trench drain system

HOW IT WORKS

The ANRIN Trench Drain System is a surface water management solution designed for quick installation and reliable water flow. Channels connect securely, and optional sloped sections ensure water is directed exactly where it’s needed

Connection of Channels

Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.

Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.


Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.

Sloping Channels

  1. Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
  2. Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
  3. Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
