ANRIN

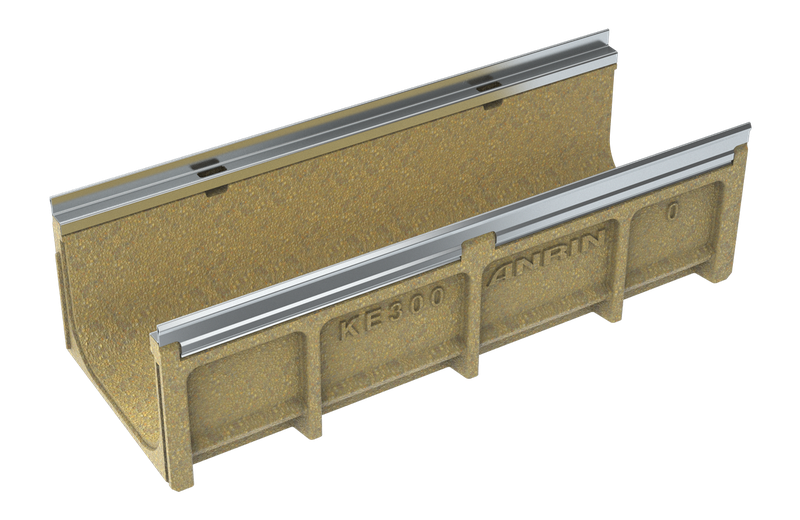

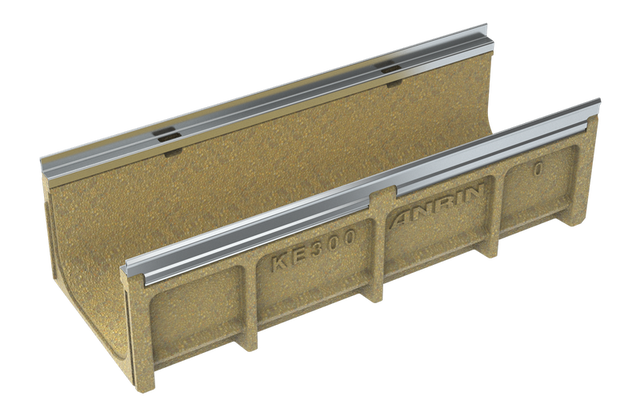

ANRIN KE300- 12" Wide Galvanized Steel Reinforced Edge Trench Drain Channel

$40156
Shipping calculated at checkout.

Elevate your water management solutions with the ANRIN K300 Polymer Concrete Trench Drain, meticulously engineered to deliver superior performance in a wide range of environments. With a robust load rating of up to E600, this trench drain is perfect for high-traffic areas where effective drainage is essential.

Constructed from high-quality polymer concrete, the K300 features a total height of 390mm, making it suitable for various installation applications while maintaining structural integrity. The galvanized edge rails provide enhanced durability and a secure installation, ensuring the trench drain withstands heavy loads while effectively channeling water away from surfaces.

Best Applications for the ANRIN K300 Trench Drain:

  • Commercial and Industrial Facilities: Ideal for warehouses, manufacturing plants, and distribution centers where large volumes of water need to be managed efficiently.

  • Parking Lots and Garages: Effectively directs rainwater and runoff away from vehicle pathways, preventing puddles and ensuring safe access for both vehicles and pedestrians.

  • Roadways and Highways: Designed for stormwater management on busy roads, helping maintain safety and accessibility during adverse weather conditions.

  • Outdoor Sports Facilities: Perfect for athletic fields, stadiums, and recreational venues where quick drainage is crucial for maintaining playable conditions and user safety.

  • Residential Driveways and Landscapes: Seamlessly integrates into landscaping and driveway designs, providing effective runoff management while enhancing the overall aesthetic.

  • Swimming Pools: Facilitates effective drainage to prevent water accumulation around pools, ensuring a safe and clean environment for swimmers.

Available exclusively in North America from NorthStar Industries, the ANRIN K300 Polymer Concrete Trench Drain with Galvanized Edge Rails reflects a commitment to quality and reliability. As the official distributor of ANRIN products, NorthStar Industries provides top-tier drainage solutions tailored to meet your project's specific needs. Choose the ANRIN K300 for effective, durable, and stylish drainage management in any application!

At NorthStar Industries, we are committed to supporting your design needs. If you require tailored solutions or expert guidance on implementing the ANRIN KE200 system in your projects, contact our team directly . We’re here to help you create the best drainage solution tailored to your specific requirements.

Specifications
  • Material
    Polymer Concrete
  • Edge Rail Material
    Galvanized Steel
  • Length (mm)
    1000 (39.37in)
  • Width (mm)
    364
  • Height (mm)
    390 (15.35in)
  • Weight (kg)
    61.8 (135.80lbs.)
  • Nominal Width
    300
  • Joint Formation
    UNILINK - Joint
  • Clasp
    SnapLock Fastening
  • Load Capacity
    E600

Applications

Designed in accordance with DIN 19580 / EN 1433
Drainage channel made of polymer concrete
Integrated galvanized steel edge rails
Half-meter channel with knockout patterns for T-junctions, elbow joints, cross junctions
UNILINK joint system, elements of equal installation heights can be joined in any direction
For installation of ANRIN KE200 grating with SnapLock fastening

The anrin trench drain system

HOW IT WORKS

The ANRIN Trench Drain System is a surface water management solution designed for quick installation and reliable water flow. Channels connect securely, and optional sloped sections ensure water is directed exactly where it’s needed

Connection of Channels

Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.

Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.


Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.

Sloping Channels

  1. Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
  2. Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
  3. Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
