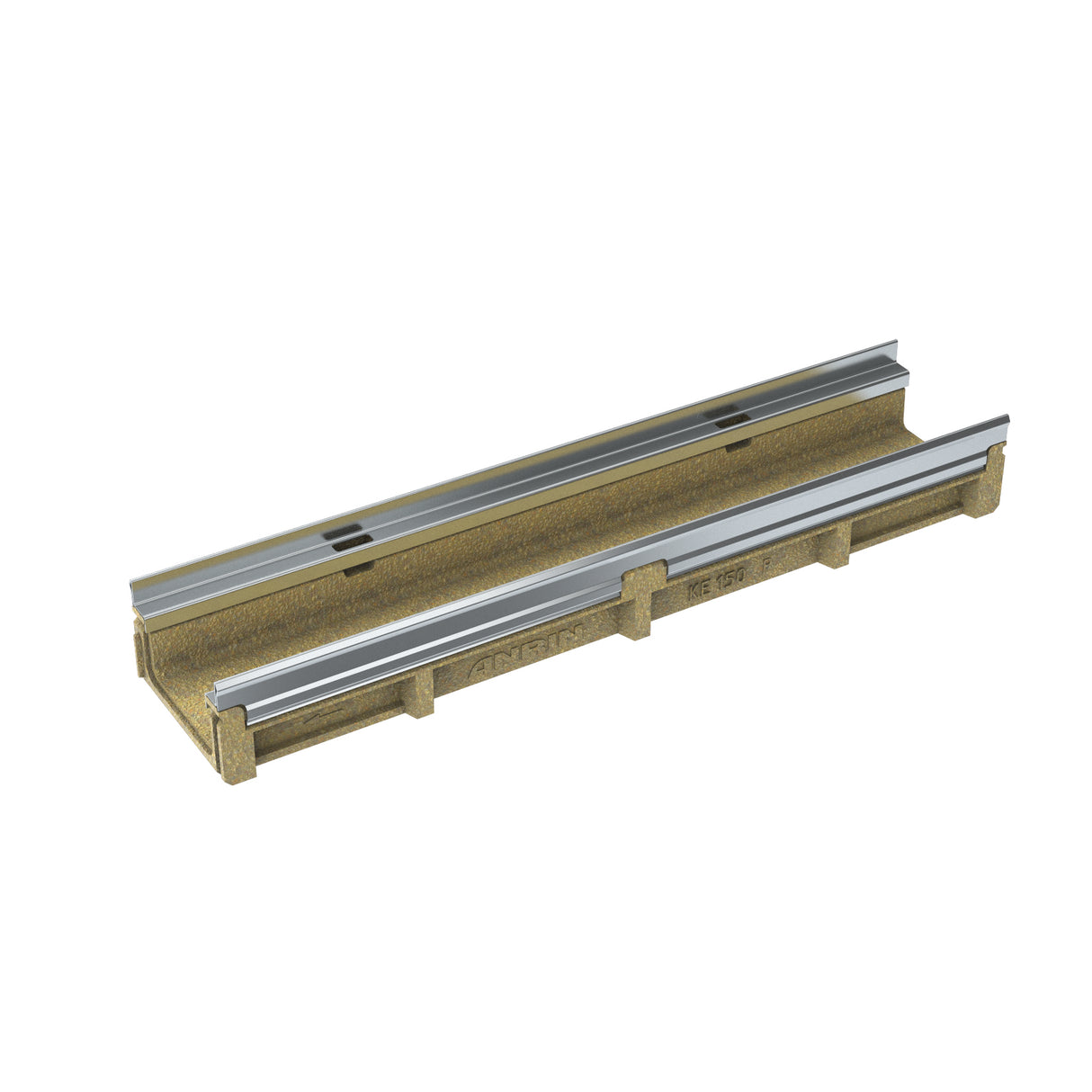

ANRIN KE150-150 - 6" Wide Stainless Steel Reinforced Edge Trench Drain Channel
ANRIN KE150-150 - 6" Wide Stainless Steel Reinforced Edge Trench Drain Channel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Introducing the ANRIN KE150-150 Stainless Steel Reinforced Edge Trench Drain Channel, a premium drainage solution specifically designed for projects with shallow height requirements. Engineered for durability and performance, this channel is ideal for maintaining efficient water management while seamlessly integrating into a variety of applications.
Product Features:
- Shallow Depth Design: With a channel depth of 130mm, the KE150-150 is perfect for installations where space is at a premium, ensuring effective drainage without compromising design (see spec sheet for detailed specifications).
- Wide Configuration: Each channel offers a width of 214mm, providing ample capacity to handle significant water flow and runoff.
- Length Availability: Available in a convenient length of 1000mm, this channel simplifies installation and allows for flexible configuration in your drainage layout.
- Robust Load Capacity: Designed to support loads up to E600, depending on the paired grating, ensuring reliable performance for both pedestrian and light vehicle traffic.
Applications:
The ANRIN KE150-150 trench drain channel is versatile and ideal for a range of applications, including:
- Landscaping Solutions: Perfect for residential gardens and commercial landscapes where a low-profile design is essential for aesthetics and functionality.
- Driveways and Parking Lots: Well-suited for shallow installations in driveways or parking areas, effectively managing water runoff while maintaining a sleek, unobtrusive surface.
- Public Walkways: Excellent for pedestrian paths, ensuring safety and accessibility where minimal height disruption is required.
At NorthStar Industries, we are committed to supporting your design needs. If you require customized solutions or expert guidance on integrating the ANRIN KE150-150 system into your projects, contact our team directly . We’re here to help you create the best drainage solution tailored to your specific requirements!
ANRIN KE150-150 - 6" Wide Stainless Steel Reinforced Edge Tren...
Specifications
Specifications
-
Material
-
Edge Rail MaterialStainless Steel
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width
-
Joint Formation
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
