ANRIN Slotted ADA/Heel Proof Ductile Iron Grating D Load
ANRIN Slotted ADA/Heel Proof Ductile Iron Grating D Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

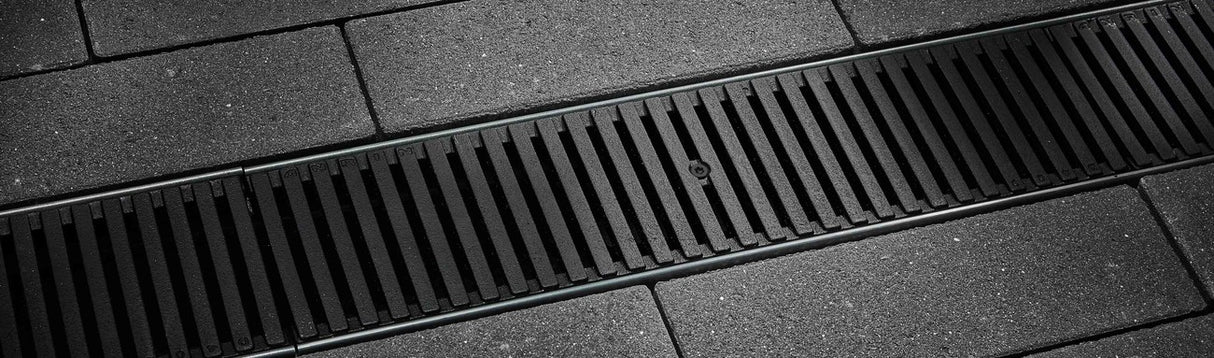

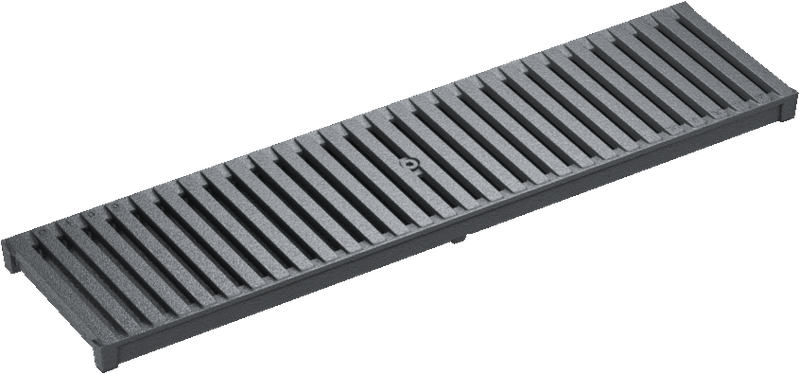

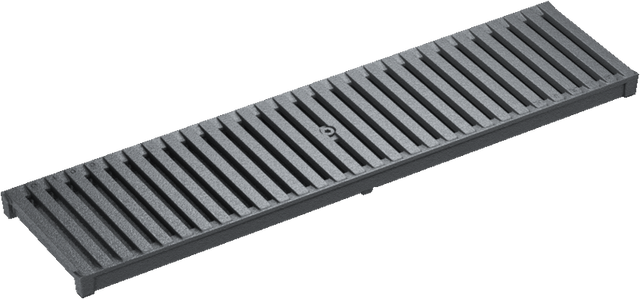

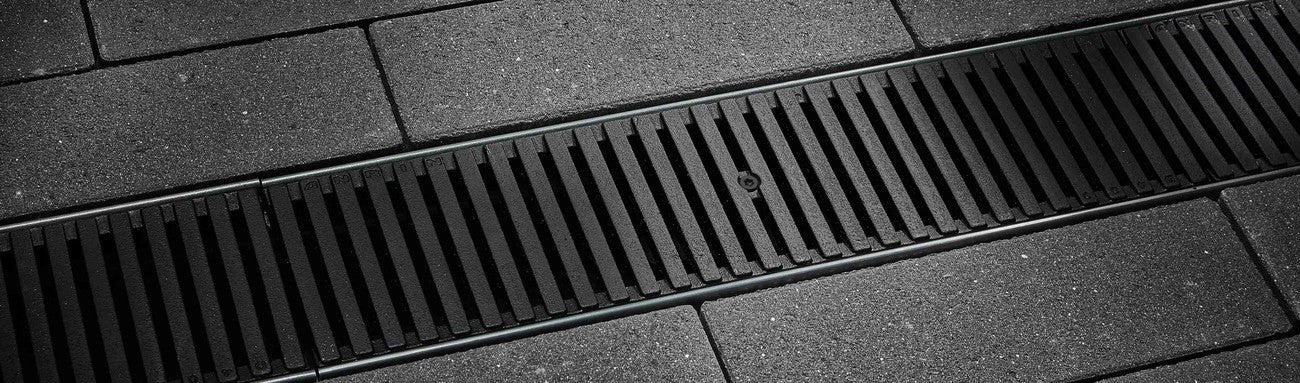

ANRIN Slotted ADA/Heel Proof Ductile Iron Grating Design Trench Drain Grating, a robust and reliable solution for effective drainage management in high-traffic environments. Constructed from high-strength ductile iron, this grating is specifically designed to provide exceptional load-bearing capacity and durability, making it ideal for both pedestrian and vehicular applications.
Product Features:
- Material: Crafted from premium ductile iron, this grating offers superior strength and resistance to impact, ensuring a long-lasting performance even under demanding conditions.
- Load Class: Rated D400, it can support loads up to 40 tons, making it suitable for use in areas with heavy vehicle traffic as well as pedestrian surfaces, ensuring safety and reliability.
- Size: Measuring half a meter in length, this grating strikes a perfect balance between coverage and ease of handling, allowing for straightforward installation.
- ADA/Heel Proof Compliance: Designed to meet the standards of the Americans with Disabilities Act (ADA), the heel-proof surface ensures safety and accessibility for all users, including those with mobility challenges.
- Compatibility: Fits seamlessly with all of ANRIN’s KE Series Channels, allowing for effortless integration into existing drainage systems.
ANRIN Slotted ADA/Heel Proof Ductile Iron Grating D Load
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels

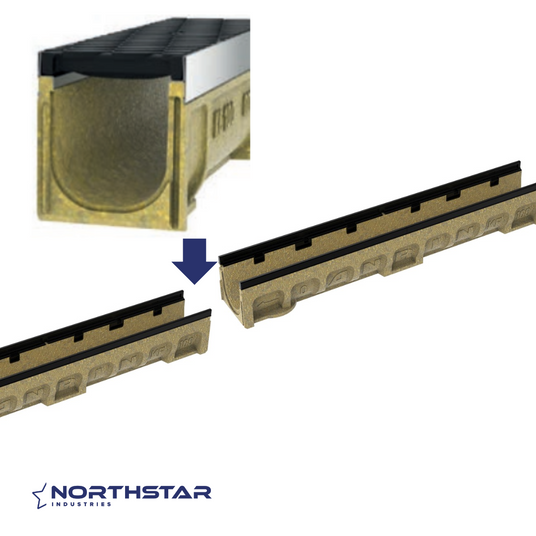

Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.

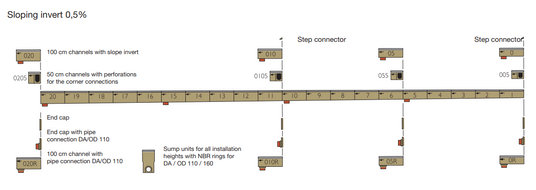

Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
