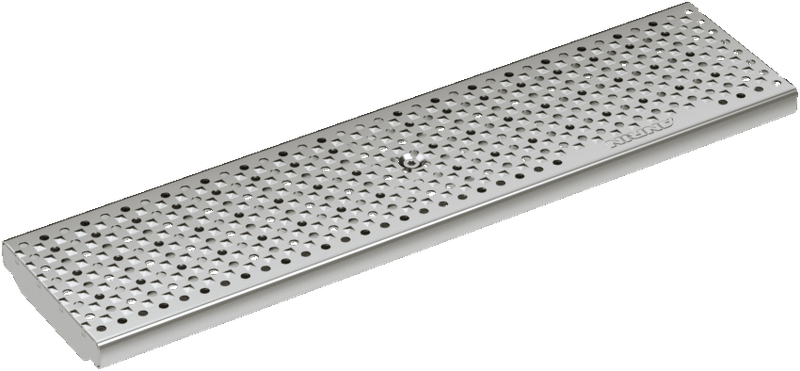

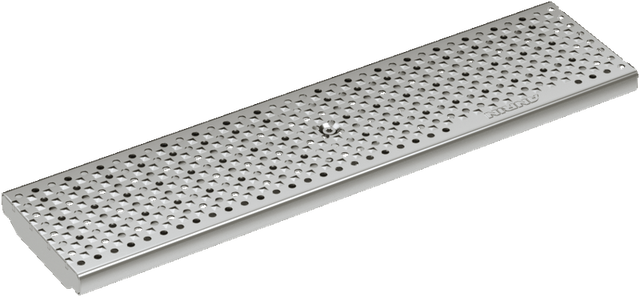

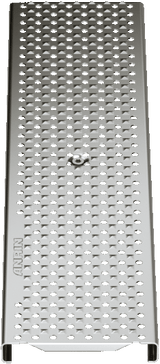

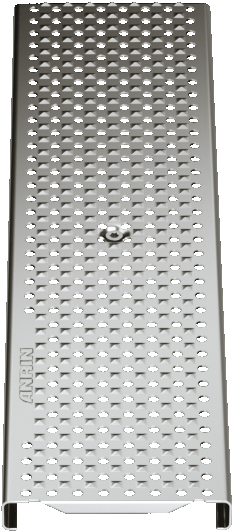

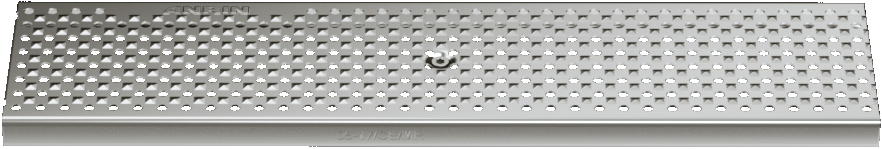

ANRIN Perforated Galvanized Steel Grating C Load
ANRIN Perforated Galvanized Steel Grating C Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

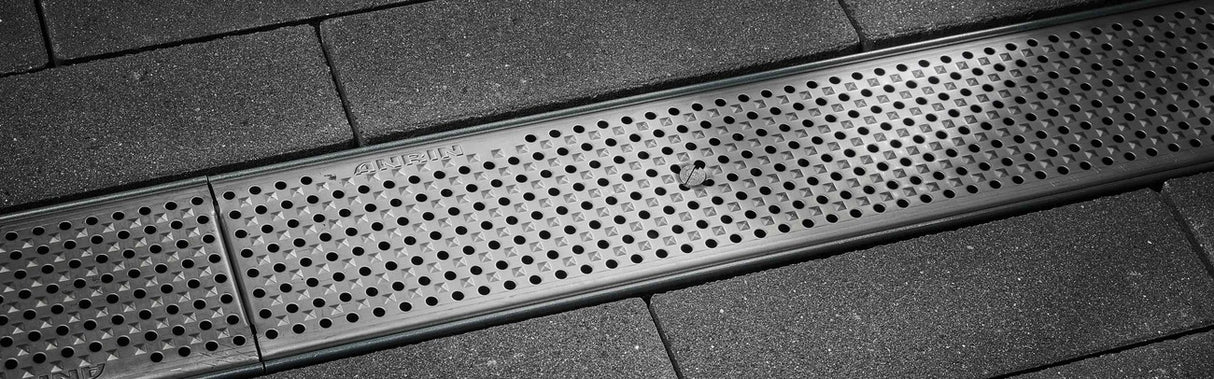

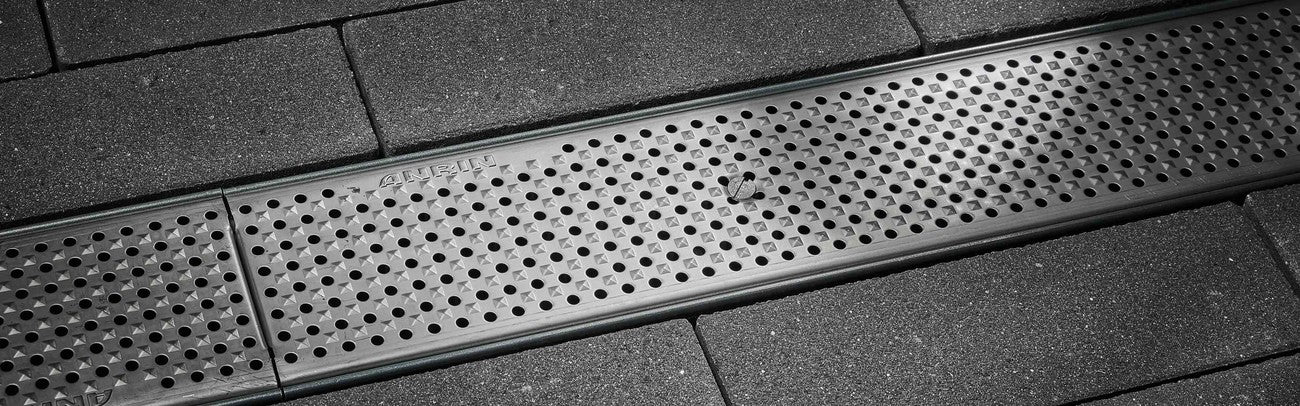

Enhance your drainage systems with the ANRIN Perforated Galvanized Steel Grating Design Trench Drain Grating, engineered to provide optimal performance and reliability. Crafted from durable galvanized steel, this grating is designed to withstand heavy use and environmental stresses, making it an ideal solution for a variety of applications.
Product Features:
- Material: Constructed from high-quality galvanized steel, ensuring robust resistance to corrosion, rust, and wear for long-lasting use.
- Load Class: Rated C250, this trench drain grating can support loads up to 25 tons, making it suitable for both pedestrian and light-to-medium vehicle traffic.
- Size: Measuring a convenient half meter in length, it provides efficient drainage coverage while allowing for easy handling and installation.
- Compatibility: Designed to fit flawlessly with all of ANRIN's KE Series Channels, promoting seamless integration into your drainage systems.
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
