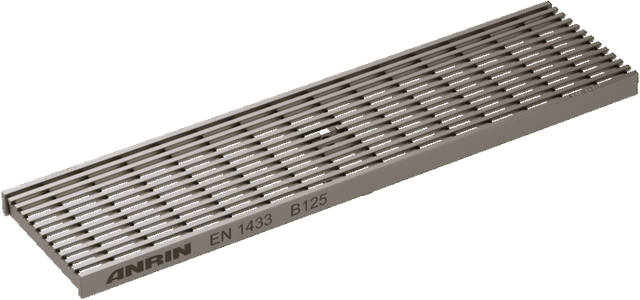

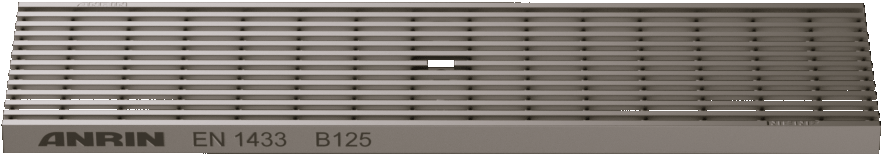

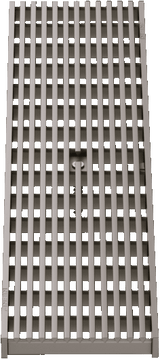

ANRIN Longitudinal ADA/Heel Proof Stainless Steel Bar Grating D Load
ANRIN Longitudinal ADA/Heel Proof Stainless Steel Bar Grating D Load is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
ANRIN Longitudinal ADA/Heel Proof Stainless Steel Bar Grating Design Trench Drain Grating, a premium solution engineered to ensure both safety and durability in demanding drainage applications. Made from high-quality stainless steel, this grating offers superior corrosion resistance and longevity, making it ideal for a variety of environments.
Product Features:
- Material: Constructed from high-grade stainless steel, ensuring exceptional durability and weather resistance for long-lasting performance.
- Load Class: Rated D400, this grating can support loads up to 40 tons, accommodating heavy vehicle traffic and pedestrian use with ease.
- Size: Measuring a convenient half meter in length, it provides ample surface area while maintaining a manageable design for installation and maintenance.
- ADA/Heel Proof Compliance: Engineered with safety in mind, this grating features a heel-proof design that complies with the Americans with Disabilities Act (ADA) requirements, ensuring a safe and accessible environment for all users.
- Compatibility: Specifically designed to fit seamlessly with all of ANRIN's KE Series Channels, making installation straightforward and efficient.
ANRIN Longitudinal ADA/Heel Proof Stainless Steel Bar Grating D Load
Specifications
Specifications
-
Material
-
Edge Rail Material-
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Weight (kg)
-
Nominal Width-
-
Joint Formation-
-
Clasp
-
Load Capacity
Applications
Applications
Connection of Channels
Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.
Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.
Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.
Sloping Channels
- Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
- Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
- Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
