ANRIN

4" Wide Trench Drain Kit - 9 Meter Complete - ANRIN KE100 - Slotted Plastic ADA/Heel Proof Grating

$1,84416
Shipping calculated at checkout.

Transform your drainage solutions with the ANRIN KE100 Polymer Concrete Trench Drain, meticulously designed for both residential and commercial applications. Combining superior durability with an innovative design, the KE100 trench drain ensures efficient water management while enhancing the aesthetic of any landscape.

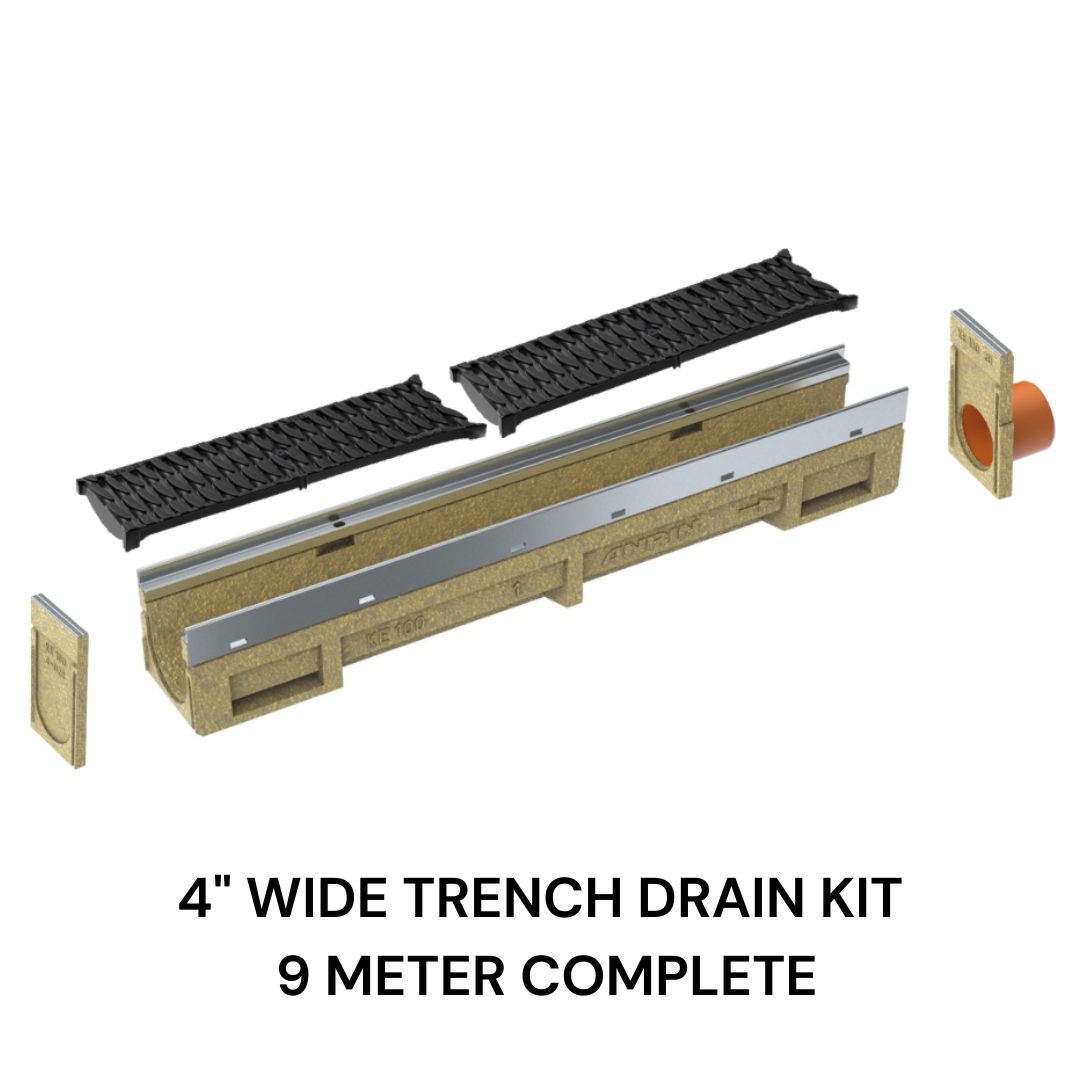

This Complete Kit Includes the following:

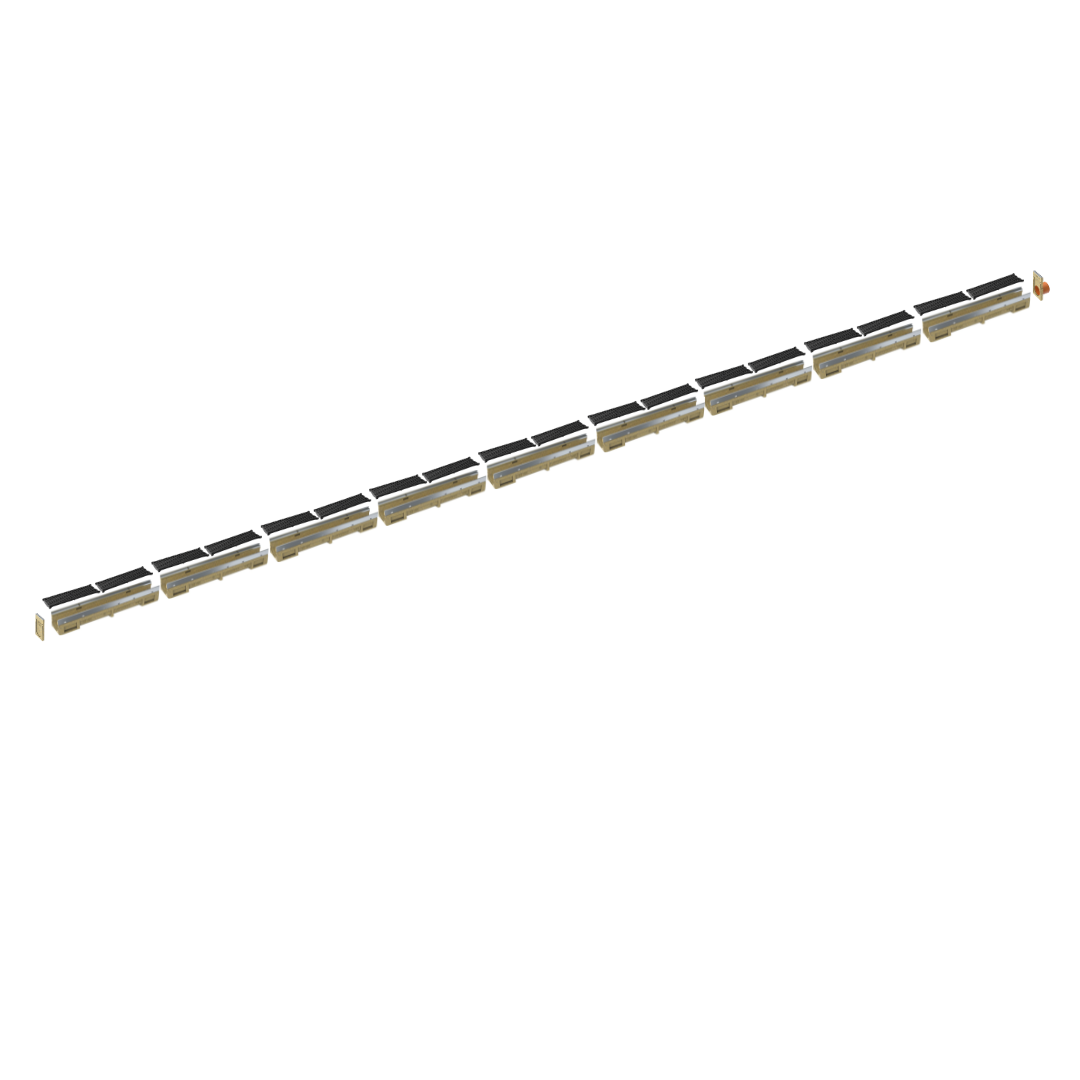

9 - 1 Meter Trench Drain Channel - KE100 Polymer Concrete with Galvanized Steel Edge Rail

18- 1/2 Meter Grates - Slotted Plastic ADA/HP Grating with OvalGrip Design Load Class C250

1 - Outlet End Cap

1 - Solid End Cap

3- Tube of Sealant

10 - Leveling Devices

*For this Trench Drain Kit NorthStar Industries chooses the channel depth for fast delivery

**If specialized channel depths are required please contact Sales directly

Specifications
  • Material
    Polymer Concrete
  • Edge Rail Material
    Galvanized Steel
  • Length (mm)
    9000 (354.33in)
  • Width (mm)
    136
  • Height (mm)
    Heights from 150mm (5.91 in) to 250mm (9.84 in) see data sheet for full channel availability
  • Weight (kg)
    207.20 (459.79lbs.)
  • Nominal Width
    100
  • Joint Formation
    UNILINK - Joint
  • Clasp
    TwistLock Fastening
  • Load Capacity
    C250

Applications

Upgrade Your Water Management with the ANRIN KE100 - 4" Wide Trench Drain Kit

Transform your residential property with the ANRIN KE100 Trench Drain Kit, designed for homeowners who demand quality and efficiency. Here’s why this complete kit is the ideal choice for effective water drainage:

Comprehensive Package
This kit includes all necessary parts and accessories, eliminating the guesswork often associated with drainage installations. With one simple price, you receive everything you need to ensure a flawless setup.

Reliable Performance
The ANRIN KE100 is engineered for superior performance in managing water runoff and preventing flooding. With its 4" wide design, this trench drain kit is perfect for directing water away from critical areas, keeping your home safe and dry.

Hassle-Free Installation
Our complete kit simplifies the installation process, making it easy for any homeowner to set up. You won’t have to hunt for additional components or tools, as everything is included for an efficient, straightforward assembly.

Durable Construction
Built to last, the ANRIN KE100 is crafted from high-quality materials, ensuring long-term reliability and resistance to wear and tear. Invest in a product that promises functionality and durability.

Perfect for Residential Use
Designed with homeowners in mind, this trench drain kit is ideal for driveways, patios, and landscaped areas. It provides an effective solution for controlling water flow while enhancing the aesthetics of your home.

Take Out the Guesswork
With the ANRIN KE100, you can trust that you’re choosing a product that performs. Designed with precision, it provides peace of mind knowing that your drainage issues are effectively managed without complications.

The anrin trench drain system

HOW IT WORKS

The ANRIN Trench Drain System is a surface water management solution designed for quick installation and reliable water flow. Channels connect securely, and optional sloped sections ensure water is directed exactly where it’s needed

Connection of Channels

Interlocking UNILINK Design: Channels join together with UNILINK joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements with an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically
aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily.

Channel Alignment: Each channel is numbered for ease and simplicity. By connecting the channels in numerical order, installers can ensure proper alignment and reduce the risk of errors on site.


Flexible Lengths: ANRIN channels come in Full & Half-meter sections that can be combined for longer runs. This makes it easy to adjust the system to fit different site needs.

Sloping Channels

  1. Built-in Slope: Channels are available with or without a 0.5% built-in gradient. Sloped channels naturally guide water toward outlets, improving drainage efficiency.
  2. Gradual Transition: Slopes are engineered for smooth transitions between sections, keeping water moving continuously and reducing the risk of blockages.
  3. Adjustment Options: For uneven terrain, ANRIN offers leveling accessories and custom solutions to maintain proper slope and ensure consistent performance.
