Strut channel systems play an important role in modern construction, electrical installations, and mechanical support structures. Among the many options available, the Unistrut P3300T Channel 1-5/8 x 7/8 Specs & Uses are often referenced by contractors, engineers, and installers who need a reliable framing component for structural support.
The Unistrut P3300T channel is designed to provide strength, durability, and flexibility in mounting systems. Its compact profile makes it suitable for supporting conduits, piping, cable trays, and equipment frames in both residential and commercial environments. explains the specifications, dimensions, material characteristics, and practical uses of the Unistrut P3300T channel so professionals can better understand where and how it should be used.

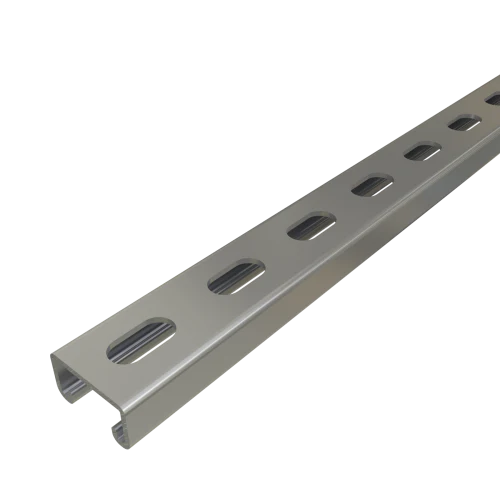

What Is the Unistrut P3300T Channel?
The Unistrut P3300T is a metal framing channel used as part of modular support systems. It is designed with standardized dimensions that allow it to work with compatible fittings, brackets, nuts, and fasteners.
The channel’s structure allows installers to build support frames without welding or drilling, making it a common choice for electrical, mechanical, and industrial installations.
Key Characteristics
-
Compact channel size
-
Compatible with Unistrut fittings
-
Designed for modular framing systems
-
Suitable for indoor and outdoor installations
-
Supports mechanical and electrical infrastructure
The Unistrut P3300T Channel 1-5/8 x 7/8 Specs & Uses highlight its versatility in supporting structural and utility components in construction environments.
Dimensions and Technical Specifications
Understanding the technical specifications of the Unistrut P3300T channel helps ensure it is used correctly in support systems.
Channel Size
The standard dimensions of the P3300T channel are:
-
Width: 1-5/8 inches
-
Height: 7/8 inch
-
Profile Type: Shallow strut channel
This compact profile makes the channel suitable for applications where space is limited but structural support is still required.
Material Composition
Most Unistrut channels are manufactured using high-strength steel to provide durability and load capacity. Depending on the application, the channel may include protective coatings to prevent corrosion.
Common material finishes include:
-
Pre-galvanized steel
-
Hot-dip galvanized steel
-
Stainless steel
These finishes help the channel perform reliably in indoor and outdoor environments.
Load Capacity Considerations
Load capacity depends on several factors, including:
-
Channel material thickness
-
Span length between supports
-
Installation orientation
-
Fastener compatibility
For accurate structural calculations, installers should refer to manufacturer load tables before finalizing installation designs.
Structural Design Features
Slotted Channel Construction
The P3300T channel typically includes pre-punched slots that allow easy mounting and adjustment of components. This design helps installers align fittings, bolts, and brackets without drilling new holes.
Modular Framing Compatibility
The channel works with various Unistrut accessories, including:
-
Channel nuts
-
Spring nuts
-
Brackets
-
Beam clamps
-
Pipe supports
These accessories allow installers to build customized support systems for different applications.
Common Uses of the Unistrut P3300T Channel
The Unistrut P3300T Channel 1-5/8 x 7/8 Specs & Uses show that it serves multiple roles in construction and infrastructure projects.
Electrical Installations
One of the most common applications is supporting electrical infrastructure. Electricians often use the P3300T channel to support:
-
Electrical conduits
-
Cable trays
-
Junction boxes
-
Lighting fixtures
The modular design allows systems to be adjusted or expanded when additional electrical lines are installed.
HVAC Support Systems
Mechanical contractors frequently use strut channels for HVAC equipment installation. The P3300T channel can support:
-
Air ducts
-
Ventilation systems
-
Mechanical piping
Its strength and flexibility help ensure stable mounting while allowing proper spacing between components.
Pipe and Plumbing Support
Plumbing systems require secure mounting structures to hold pipes in place. The channel provides reliable support for:
-
Water supply lines
-
Drainage systems
-
Industrial fluid piping
By using compatible pipe clamps and brackets, installers can create a stable piping support system.
Equipment Mounting Frames
Industrial and commercial facilities often require support frames for equipment such as:
-
Control panels
-
Pumps
-
Electrical cabinets
-
Utility equipment
Strut channels allow installers to assemble frames quickly while maintaining structural integrity.
Advantages of Using Strut Channel Systems
Flexible Installation
One advantage of the P3300T channel is the ability to adjust system components without major modifications. Installers can reposition fittings or add new supports when required.
Reduced Installation Time
Because strut channels do not require welding or extensive fabrication, installation time is often reduced compared with traditional framing methods.
Strong Structural Support
The steel construction provides strong support for medium-duty structural applications in construction and industrial environments.
Standardized Compatibility
Since Unistrut products follow standardized dimensions, they integrate with many compatible fittings and accessories.
Conclusion
The Unistrut P3300T Channel 1-5/8 x 7/8 specs & uses demonstrate why this compact strut channel is widely used across construction, electrical, and industrial installations. Its standardized dimensions, durable materials, and modular compatibility allow professionals to create strong support structures with efficient installation.
From electrical conduit supports to HVAC mounting systems, the P3300T channel provides a practical solution for projects requiring reliable framing components. By understanding its specifications, material options, and installation considerations, contractors and engineers can confidently integrate this strut channel into a wide range of structural support applications.
