In metal framing systems, precision components play a critical role in ensuring structural stability and proper load distribution. One such component widely used in channel framing assemblies is the Unistrut P1458 PL 90° 3-hole angle connector. Designed for secure right-angle connections, this fitting is commonly used in industrial, commercial, and mechanical installations. provides a detailed overview of the product, including its specifications, applications, installation process, and selection considerations.
What Is the Unistrut P1458 PL 90° 3 Hole Angle Connector?

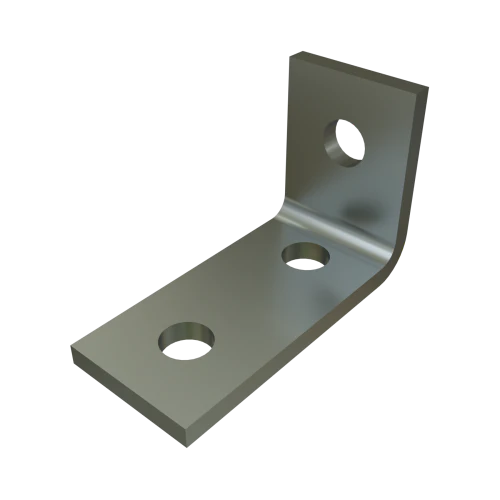

The Unistrut P1458 PL 90° 3 Hole Angle Connector is a structural fitting designed to join two strut channels at a 90-degree angle. Manufactured to match standard Unistrut channel profiles, it ensures alignment, rigidity, and long-term support in framing systems.
Key Design Features
-
90-degree angle configuration for corner assemblies
-
Three pre-drilled holes for secure fastening
-
Compatible with standard Unistrut channel systems
-
Available in multiple finishes such as pre-galvanized, hot-dip galvanized, or stainless steel
The three-hole configuration allows for better load distribution and improved stability when compared to two-hole connectors. This makes it suitable for heavier-duty structural applications.
Common Applications
The Unistrut P1458 PL 90° 3 Hole Angle Connector is used across various industries due to its adaptability and strength.
Mechanical and Electrical Installations
In HVAC, plumbing, and electrical support systems, this connector helps create rigid frames for pipe runs, cable trays, and duct supports. Its right-angle design simplifies corner installations in ceiling or wall-mounted systems.
Industrial Framing Systems
Factories and warehouses often require modular framing systems. This connector assists in building equipment supports, rack systems, and machine guarding structures.
Solar Panel Mounting Structures
In solar installations, strut systems are frequently used for mounting frameworks. The Unistrut P1458 PL 90° 3 Hole Angle Connector provides reliable corner reinforcement in rooftop and ground-mounted assemblies.
Material and Finish Options
Choosing the right finish is important for durability and corrosion resistance.
-
Pre-Galvanized Steel: Suitable for indoor applications where exposure to moisture is limited.
-
Hot-Dip Galvanized: Recommended for outdoor or high-humidity environments.
-
Stainless Steel: Ideal for corrosive or coastal conditions.
Selecting the correct material ensures long-term structural performance and reduces maintenance requirements.
Installation Guidelines
Proper installation is essential for safety and load performance.
Step 1 – Alignment
Position the strut channels at a 90-degree angle. Ensure both channels are flush and aligned properly before fastening.
Step 2 – Bolt Placement
Insert bolts through the three pre-drilled holes in the connector and align them with the channel slots. Use appropriate channel nuts compatible with the system.
Step 3 – Tightening
Tighten all fasteners evenly using the recommended torque settings. This ensures balanced load distribution and prevents loosening over time.
It is advisable to consult structural load tables and manufacturer guidelines before finalizing the installation, particularly for load-bearing assemblies.
Load Capacity Considerations
Load capacity depends on several factors:
-
Channel size and thickness
-
Bolt grade and torque
-
Span length
-
Environmental conditions
While the Unistrut P1458 PL 90° 3 Hole Angle Connector enhances structural integrity, overall system strength is determined by the entire assembly. Engineers typically evaluate load calculations before installation.
Benefits of Using This Connector
Using a dedicated right-angle connector offers several advantages:
-
Improved structural alignment
-
Faster assembly compared to welded joints
-
Modular flexibility for future adjustments
-
Reduced installation time
-
Consistent load support across connections
Unlike welded frames, strut-based systems allow modifications without dismantling the entire structure. This flexibility is valuable in dynamic industrial environments.
How to Select the Right Connector for Your Project
When choosing the Unistrut P1458 PL 90° 3 Hole Angle Connector, consider:
-
Project load requirements
-
Environmental exposure
-
Compatibility with existing strut systems
-
Compliance with local structural standards
For heavy-duty applications, verify bolt specifications and ensure the connector matches the channel profile precisely.
Maintenance and Inspection
Routine inspections help maintain safety and performance.
-
Check bolt tightness periodically
-
Inspect for corrosion or coating damage
-
Replace damaged components promptly
Proper maintenance extends the lifespan of the framing system and ensures ongoing structural reliability.
Final Thoughts
The Unistrut P1458 PL 90° 3 Hole Angle Connector is a dependable solution for right-angle framing connections in metal channel systems. Its three-hole configuration enhances stability and load distribution, making it suitable for industrial, mechanical, and structural applications.
By selecting the correct finish, following proper installation practices, and performing routine inspections, professionals can ensure durable and secure framing assemblies. Whether used in HVAC supports, equipment framing, or solar installations, this connector plays a crucial role in maintaining structural alignment and strength.
