The Unistrut P1010 EG Spring Nut 1/2 is a commonly used fastening component in metal framing systems. It is designed to provide a strong and adjustable connection within Unistrut channels without welding or drilling. This installation guide explains the correct method to install the spring nut in a Unistrut P1010 electro-galvanized (EG) channel, ensuring proper load distribution, alignment, and long-term reliability.
This Unistrut P1010 EG Spring Nut 1/2 Installation Guide is intended for installers, contractors, and maintenance teams working on mechanical, electrical, plumbing, or structural support systems.
What Is a Unistrut P1010 EG Spring Nut 1/2?

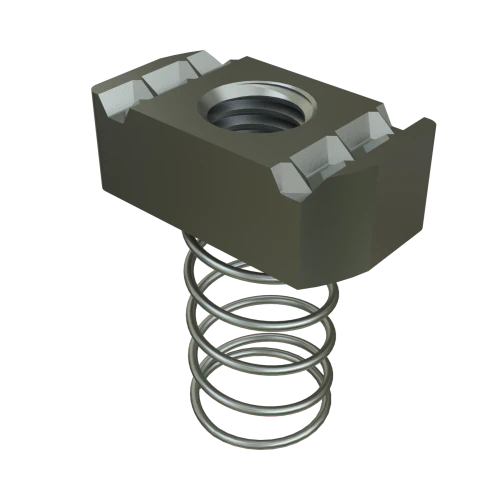

A spring nut is a channel fastening component with an integrated spring that holds the nut in position once inserted. The 1/2-inch spring nut is designed to accept standard 1/2-inch threaded rods or bolts. The electro-galvanized (EG) finish provides corrosion resistance suitable for indoor and controlled environments.
Key characteristics:
-
Designed for Unistrut P1010 channel profiles
-
Compatible with 1/2-inch bolts and threaded rods
-
Spring mechanism prevents nut rotation
- Allows repositioning without removing the channel
Tools and Materials Required
Before starting installation, ensure the following items are available:
-
Unistrut P1010 EG channel
-
Unistrut P1010 EG Spring Nut 1/2
-
1/2-inch bolt or threaded rod
-
Flat washer (if required by application)
-
Torque wrench
-
Standard hand tools (spanner or socket)
- Personal protective equipment (gloves and safety glasses)
Using the correct tools helps prevent cross-threading and uneven load transfer.
Step-by-Step Installation Process
Step 1: Inspect the Channel
Check the Unistrut P1010 channel for debris, deformation, or surface damage. Ensure the channel opening is clear so the spring nut can rotate freely during insertion.
Step 2: Insert the Spring Nut
Hold the spring nut with the spring facing upward toward the channel opening. Insert the nut diagonally into the channel slot.
Once inside, rotate the nut 90 degrees so it sits perpendicular to the channel length. The spring should press firmly against the inner lip of the channel.
Step 3: Position the Nut
Slide the spring nut along the channel to the required fixing location. The spring holds the nut in place temporarily, allowing hands-free alignment of components.
Ensure the nut is seated flat and aligned correctly before inserting the bolt.
Step 4: Insert the Bolt or Threaded Rod
Insert the 1/2-inch bolt or threaded rod through the fixture and into the spring nut. Turn it by hand initially to confirm proper thread engagement.
If resistance is felt early, stop and realign to avoid thread damage.
Step 5: Tighten to Recommended Torque
Using a torque wrench, tighten the bolt to the manufacturer’s specified torque for 1/2-inch Unistrut spring nuts. Proper torque ensures:
-
Secure clamping force
-
Even load distribution
- Reduced risk of loosening over time
Avoid overtightening, as it may deform the channel or strip threads.
Conclusion
Correct installation of the Unistrut P1010 EG Spring Nut 1/2 is essential for achieving a secure and durable channel connection. By following proper insertion techniques, torque specifications, and inspection practices, installers can ensure reliable performance across a wide range of applications.
This Unistrut P1010 EG Spring Nut 1/2 Installation Guide provides a clear and practical reference for safe installation without unnecessary complexity. Proper preparation, correct orientation, and adherence to load guidelines remain the key factors for consistent results.
