A strut channel is a structural component used to support pipes, conduits, cable trays, ducts, electrical equipment, mechanical systems, and other building services. Its adjustable design allows installers to construct support frames without relying heavily on welding or drilling.
However, selecting a channel based only on its width or price can result in inadequate support, excessive deflection, corrosion, or unnecessary material costs. The right option depends on the supported load, span length, installation environment, channel profile, material thickness, finish, and connection method.
What Is a Unistrut Channel?
A Unistrut channel is a roll-formed metal section with inward-facing edges that hold channel nuts, bolts, brackets, clamps, and other fittings. These components create an adjustable framing system that can be assembled and modified using standard fastening tools.
The system is commonly used for trapeze supports, ceiling grids, pipework, conduits, cable trays, equipment frames, racks, and general structural framing. Certain back-to-back channel configurations are also designed for applications requiring greater strength or attachment from more than one side.
Channel systems are available in different depths, gauges, materials, hole patterns, and protective finishes. Understanding these differences is essential when comparing products.
Factors to Consider When Selecting a Strut Channel
Determine the Expected Load
The first step is to calculate the total load that the support system must carry. This should include the weight of the pipes, cables, ducts, equipment, fittings, insulation, fluids, and any additional components attached to the frame.
Designers should also account for concentrated loads, uniformly distributed loads, movement, vibration, and possible future additions. A channel suitable for a short pipe support may not be appropriate for a long-span cable tray or equipment platform.
Manufacturer load tables should be reviewed to confirm allowable loads and deflection at the proposed span. Bearing loads at channel connections must also be checked because the connection point may experience different stresses from the channel span itself.
Review Channel Depth and Profile
Channel depth has a direct effect on structural performance. Deeper profiles generally provide greater resistance to bending than shallow profiles of a similar thickness.
A standard 41 mm by 41 mm channel, for example, is widely used for general framing and support work. Smaller or shallower profiles may be suitable for lightweight installations where space is limited. Deeper or back-to-back channels are commonly considered for heavier loads, longer spans, and more demanding support arrangements.
The installation space must also be measured carefully. A structurally suitable channel may still be impractical when ceiling clearances, wall distances, or equipment access are restricted.
Select the Appropriate Material Thickness
Channel thickness, often described by gauge, influences load capacity, weight, and durability. Thicker steel is generally used where greater structural strength is required, while lighter sections may be sufficient for lower-load installations.
The stated gauge should not be considered in isolation. Buyers should confirm the actual material thickness, steel grade, dimensional tolerances, and published performance data.
For critical support systems, the channel should come from a manufacturer that provides traceable specifications and verified technical information. Engineering calculations may also be required for structural, seismic, or regulated applications.
Choose the Right Channel Configuration
The topic Unistrut Channel: Selecting the Right Strut for Your Application also requires careful consideration of the channel configuration. Common options include solid, slotted, punched, half-slotted, and back-to-back channels.
Solid Channel
Solid channels do not have pre-punched holes along the back. They can provide a continuous surface and may be selected where maximum section integrity or a specific mounting arrangement is required.

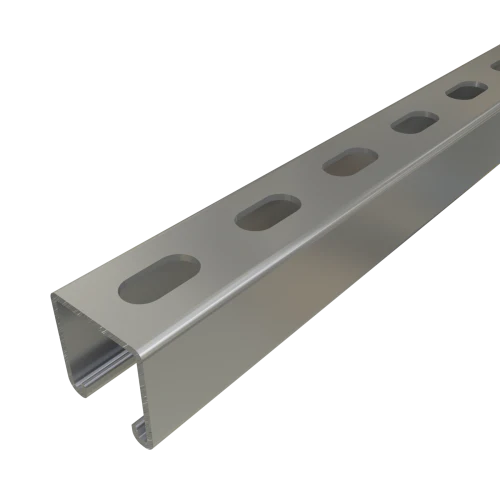

Slotted or Punched Channel
Slotted channels contain factory-made openings that simplify attachment to threaded rods, walls, ceilings, or structural surfaces. They can reduce the need for field drilling and make positioning easier during installation.
The slot dimensions must be compatible with the proposed rods, bolts, and fasteners. Installers should not assume that every slotted channel will accept the same hardware.
Back-to-Back Channel
Back-to-back channels combine two sections to create a deeper and more rigid profile. They are frequently used for trapeze supports, racks, heavy pipework, duct supports, and other applications that require additional strength or attachment options.
Match the Material and Finish to the Environment
Environmental exposure is another important selection factor. Channel systems may be manufactured from plain carbon steel, pre-galvanised steel, hot-dip galvanised steel, stainless steel, or aluminium. Official product specifications list carbon steel, pre-galvanised steel, stainless steel, and aluminium among the available material options.
Indoor Dry Environments
Pre-galvanised or painted steel may be suitable for dry indoor areas such as commercial buildings, offices, and enclosed service spaces.
Damp or Outdoor Locations
Hot-dip galvanised finishes are commonly considered for outdoor installations or locations exposed to moisture. The coating protects exposed surfaces and edges more extensively than some lighter protective finishes.
Corrosive Environments
Stainless steel may be required in food-processing facilities, chemical plants, coastal locations, wastewater sites, and other corrosive environments. The appropriate stainless-steel grade should be selected according to the chemicals, moisture, temperature, and cleaning processes present.
Check Fittings and Accessory Compatibility
A strut system depends on more than the channel itself. Channel nuts, brackets, spring nuts, clamps, base plates, beam attachments, threaded rods, bolts, and couplers must be compatible with the selected profile.
Using mismatched accessories can reduce connection strength or make installation difficult. Components should therefore be checked for channel size, thread type, material, finish, and published load rating.
Where channels are joined, the coupler and fastening arrangement should be suitable for the direction and magnitude of the applied load. A channel coupler, for example, is specifically designed to connect two channel lengths within a compatible framing system.
Conclusion
Selecting the right Unistrut channel requires a review of the complete support system rather than one product dimension. Load, span, deflection, channel depth, material thickness, hole pattern, environmental exposure, fittings, and installation conditions all affect performance.
For light-duty applications, a shallow or single channel may provide adequate support. Heavy equipment, long spans, outdoor exposure, or structural framing may require a deeper, thicker, back-to-back, or corrosion-resistant option.
Always consult current manufacturer load tables and project specifications before installation. Where structural safety, seismic forces, or regulated building services are involved, the final design should be reviewed by a qualified engineer.
