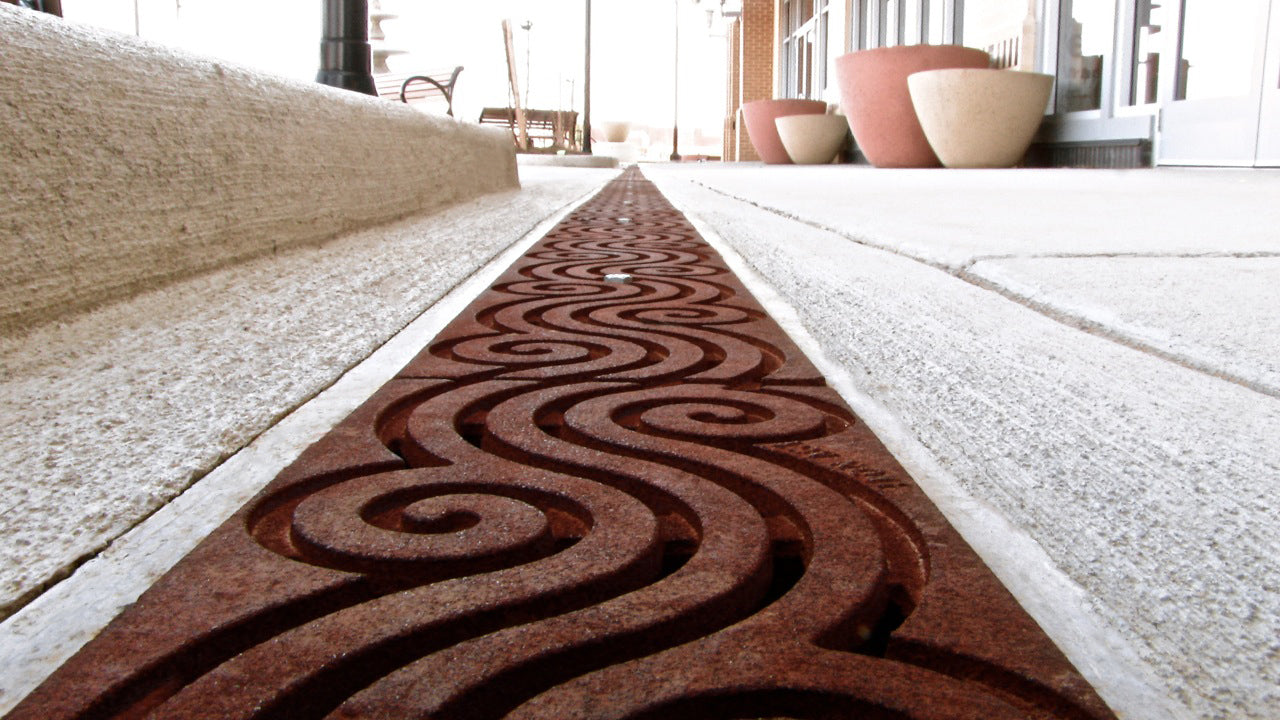

Effective drainage systems are essential for maintaining safety, hygiene, and structural integrity in residential, commercial, and industrial spaces. One of the most important components of a surface drainage system is the trench grate. Trench grates cover drainage channels, allowing water to flow through while preventing debris accumulation and ensuring pedestrian or vehicle safety. Understanding the Types of Trench Grates and Their Uses helps in selecting the right solution for specific environments and load requirements.
What Are Trench Grates?
Trench grates are removable covers placed over trench drains or linear drainage channels. Their primary function is to allow surface water to enter the drainage system while supporting foot traffic, vehicles, or heavy equipment. In addition to drainage efficiency, trench grates contribute to safety by reducing slip hazards and protecting the underlying channel from damage.
Trench grates are commonly used in areas exposed to frequent water flow, such as driveways, parking lots, industrial facilities, commercial kitchens, and outdoor public spaces.
Importance of Choosing the Right Trench Grate
Selecting the appropriate trench grate is essential for long-term performance. Factors such as load-bearing capacity, environmental exposure, chemical resistance, and aesthetic requirements all influence the choice. Using an unsuitable grate can lead to premature failure, safety risks, or inefficient drainage.
Understanding the Types of Trench Grates and Their Uses ensures that drainage systems remain functional, compliant with standards, and suitable for their intended application.
Types of Trench Grates Based on Material
Cast Iron Trench Grates
Cast iron trench grates are known for their strength and durability. They are capable of supporting heavy loads, making them suitable for high-traffic areas.
Common Uses:
-
Roads and highways
-
Industrial zones
-
Loading docks
-
Airports and ports
Cast iron grates offer excellent resistance to impact and wear, although they may require corrosion protection in certain environments.
Stainless Steel Trench Grates
Stainless steel trench grates are widely used in environments that demand hygiene, corrosion resistance, and a clean appearance.
Common Uses:
-
Commercial kitchens
-
Food processing facilities
-
Hospitals and laboratories
- Pharmaceutical plants
These grates are easy to clean and resistant to rust, making them ideal for areas with strict sanitation requirements.
Galvanized Steel Trench Grates
Galvanized steel grates are coated with zinc to improve corrosion resistance while maintaining strength.
Common Uses:
-
Parking areas
-
Warehouses
-
Commercial buildings
-
Outdoor walkways
They provide a balance between durability and cost, making them a popular choice for general-purpose drainage.
Types of Trench Grates Based on Design
Slotted Trench Grates
Slotted grates feature narrow openings that allow water to pass through while preventing larger debris from entering the drain.
Applications:
-
Pedestrian walkways
-
Pool decks
- Commercial interiors
They offer a clean appearance and enhanced safety for foot traffic.
Mesh or Perforated Trench Grates
These grates have multiple small openings that improve water intake efficiency.
Applications:
-
Industrial floors
-
Warehouses
- Manufacturing units
They are effective in areas with high water flow and fine debris.
Heel-Proof Trench Grates
Heel-proof designs feature small slot openings to prevent footwear from getting caught.
Applications:
-
Public plazas
-
Shopping centers
- Transit stations
They improve pedestrian safety without compromising drainage performance.
How to Select the Right Trench Grate
When choosing a trench grate, consider the following factors:
-
Load Class: Determine whether the area supports pedestrians, light vehicles, or heavy machinery.
-
Environmental Conditions: Consider exposure to chemicals, moisture, or saltwater.
-
Maintenance Needs: Choose materials that are easy to clean and inspect.
- Aesthetic Requirements: Match the grate design with the surrounding architecture.
A clear understanding of the Types of Trench Grates and Their Uses simplifies the decision-making process and ensures long-term reliability.
Conclusion
Trench grates play a critical role in surface water management by ensuring efficient drainage, safety, and durability. With various materials and designs available, each type serves specific functional and environmental needs. From cast iron grates used in heavy-duty applications to stainless steel and plastic options for hygienic or residential spaces, selecting the right grate is essential.
By understanding the different Types of Trench Grates and Their Uses, property owners, engineers, and contractors can design drainage systems that perform effectively, meet safety standards, and withstand operational demands over time.
