Proper surface water management plays a key role in maintaining the durability and safety of driveways, parking areas, and other paved surfaces. The ANRIN KE100 Trench Drain Kits offer an efficient and reliable drainage solution designed for both residential and commercial projects. This guide provides a clear, step-by-step explanation of how to install ANRIN KE100 Trench Drain Kits correctly, ensuring long-lasting performance and proper functionality.
Understanding the ANRIN KE100 Trench Drain System
Before starting the installation, it’s essential to understand the components and design purpose of the ANRIN KE100 system.
The KE100 series is known for its high-quality polymer concrete channels and durable grates that handle heavy loads and resist wear. Its modular structure allows easy alignment, quick installation, and a clean finish. These trench drain kits are often used in settings like garage driveways, patios, walkways, parking lots, and industrial areas.

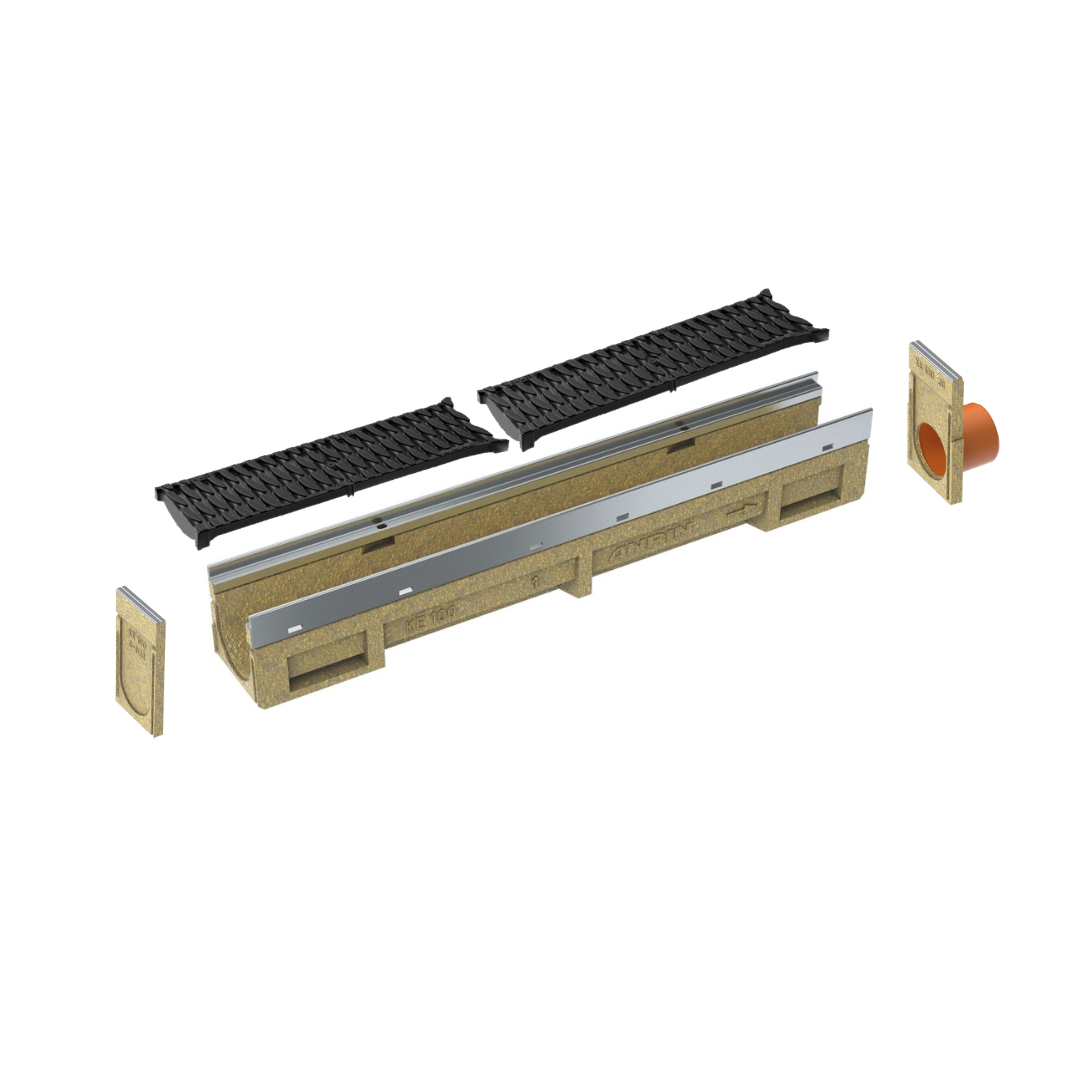

Each kit typically includes:
-
Polymer concrete trench channels
-
Pre-fitted or bolt-on grates
-
End caps and outlet sections
-
Locking systems for grate security
- Connection accessories for joining multiple sections
Tools and Materials Required
Before you begin installing the ANRIN KE100 Trench Drain Kits, make sure the following tools and materials are ready:
-
Measuring tape
-
Spirit level or laser level
-
Shovel and trowel
-
Concrete mix and mixing tools
-
Rubber mallet
-
PVC or HDPE pipe for outlet connection
- Safety gear (gloves, boots, goggles)
Having all materials and tools nearby helps you maintain efficiency throughout the installation process.
Step 1 – Planning and Layout
Every installation should begin with proper planning. Identify the area where the trench drain will be installed and plan the drainage direction. The goal is to channel surface water toward the appropriate outlet or stormwater system.
-
Mark the path using spray paint or chalk lines.
-
Determine the trench’s start and end points.
-
Check the gradient — a minimum slope of 0.5% to 1% is usually recommended to allow water to flow efficiently.
- Confirm outlet positioning and the connection to the main drain or sewer line.
This planning phase ensures that water will move smoothly through the system without pooling or overflow.
Step 2 – Excavation
Once the layout is confirmed, begin excavating the trench.
-
The trench should be deep enough to accommodate both the drain channel and a concrete bedding base (typically 100–150 mm deep).
- The width of the trench should be slightly wider than the channel to allow for adjustment during leveling.
Remove loose soil and compact the bottom of the trench to create a stable base. Proper excavation ensures that the channels sit evenly and maintain structural strength over time.
Step 3 – Preparing the Concrete Base
The ANRIN KE100 Trench Drain Kits require a stable and level concrete base to support the channels.
-
Pour a concrete layer of approximately 50–100 mm thickness at the bottom of the trench.
-
Use a trowel or straight edge to smoothen the surface.
- Check the slope using a level to make sure it matches your drainage plan.
Allow the base to set partially before placing the channels—this ensures that the concrete holds the weight of the trench drain effectively.
Step 4 – Placing the Trench Drain Channels
Carefully place the ANRIN KE100 channels along the prepared concrete base.
-
Start from the outlet end and work backward toward the water source.
-
Each channel should interlock neatly with the next section using the male-female joint ends.
- Use a rubber mallet to gently tap the channels into position, ensuring they are level and aligned.
Check continuously with a level tool to maintain proper slope alignment. Any uneven placement may cause water stagnation or poor drainage performance.
Step 5 – Connecting the Outlet and End Caps
Once all channels are aligned, attach the outlet section to connect the trench drain to the underground pipe or stormwater system.
-
Securely fit the outlet connector to the desired drainage pipe.
-
Seal all joints with an appropriate waterproof sealant to prevent leakage.
- Install end caps on both open ends of the system to maintain structural integrity.
Proper sealing and connections are vital to ensure efficient flow and long-term durability.
Step 6 – Securing with Concrete Surround
After the channels are correctly positioned and connected, surround them with concrete to lock them in place.
-
Pour concrete along both sides of the trench up to the top edge of the channels.
-
Compact the concrete to eliminate air pockets.
- Avoid pouring concrete directly onto the grates if they are already installed.
This step adds rigidity and prevents the channels from shifting due to load or soil movement.
Step 7 – Installing the Grates
The grates are an important part of the ANRIN KE100 Trench Drain Kits. They protect the channels and allow easy cleaning.
-
Once the concrete has cured, place the grates on top of each channel.
-
Use the locking system provided in the kit to secure them firmly.
- Check alignment along the entire trench for a uniform appearance.
Grates come in various materials such as stainless steel, ductile iron, or galvanized steel choose the one that suits your site’s load and aesthetic needs.
Step 8 – Finishing and Inspection
After installation is complete, inspect the entire trench drain system carefully.
-
Remove any debris from inside the channel.
-
Ensure the slope directs water toward the outlet smoothly.
-
Pour water along the length to test the flow direction.
- Clean any concrete residue on the surface and reinstall the grates if necessary.
A final inspection ensures that the trench drain is both functional and visually well integrated with the surrounding pavement.
Maintenance Tips
Although ANRIN KE100 Trench Drain Kits require minimal maintenance, periodic cleaning helps preserve performance.
-
Remove debris and sediment buildup inside the channels.
-
Check the outlet for blockages after heavy rainfall.
-
Inspect grates for damage or rust (if applicable).
- Re-tighten locking mechanisms as part of regular site maintenance.
Proper care extends the system’s lifespan and maintains efficient drainage year-round.
Conclusion
The Step-by-Step Installation of ANRIN KE100 Trench Drain Kits ensures a reliable surface drainage solution for any paved or landscaped area. With careful planning, accurate leveling, and proper connection techniques, you can achieve a professional-grade installation that enhances both the performance and durability of your site’s drainage infrastructure. Whether used in residential driveways or industrial zones, the ANRIN KE100 system offers a balance of strength, efficiency, and long-term value.
