Tree grates are commonly installed in streetscapes, plazas, campuses, shopping areas, and other pedestrian environments. They protect the soil surrounding a tree while allowing air and water to reach its root system. They can also create a more even walking surface around tree openings.
However, selecting a tree grate involves more than choosing an appropriate shape or size. The opening pattern, material, load capacity, finish, installation method, and long-term maintenance requirements must also be considered.
A heel-proof design may be particularly useful in areas with regular pedestrian traffic. Its smaller openings help reduce the likelihood of narrow heels, walking aids, or small objects becoming caught in the grate. This makes the design suitable for locations where accessibility and pedestrian movement are important planning considerations.
What Is a RAIN 42 x 42 Heel-Proof Grate?

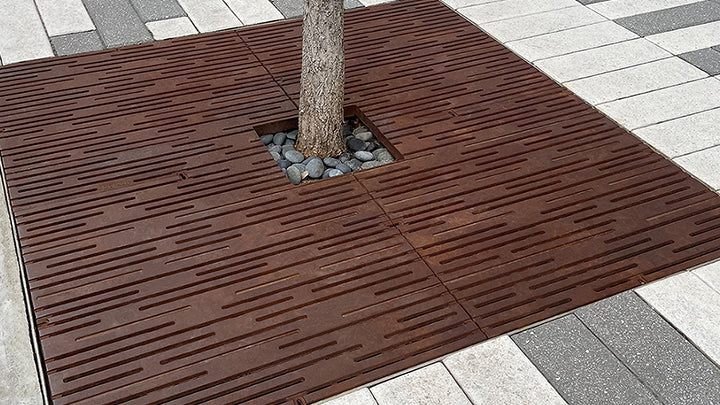

A RAIN 42 x 42 heel-proof grate is a square tree grate designed for placement around the base of a tree. The stated dimensions indicate that the grate measures approximately 42 inches by 42 inches, although project teams should confirm the exact product specifications before installation.
Its heel-proof surface generally features narrow openings that allow water, air, and limited sunlight to pass through while supporting a more comfortable walking area. The grate covers exposed soil without completely sealing the tree pit.
The RAIN pattern may also add a defined visual element to the surrounding pavement. This allows the grate to serve both a practical and architectural purpose within the landscape.
Why Does the 42 x 42 Size Matter?
The 42 x 42-inch format may suit compact and medium-sized tree openings. It can be considered for urban pavements, building entrances, internal courtyards, pathways, and other areas where space is limited.
The selected size should correspond with the dimensions of the tree pit and the surrounding pavement layout. Designers must also account for the current trunk diameter and expected tree growth. A grate that fits during initial installation may become restrictive if sufficient space is not provided for future trunk expansion.
How Does the Heel-Proof Pattern Improve Pedestrian Use?
Traditional tree grates may contain openings that are wide enough to catch narrow footwear. A heel-proof grate uses a tighter pattern to create smaller gaps across the walking surface.
This design can help provide a more consistent path for pedestrians wearing different types of footwear. It may also make movement easier for people using canes, walking frames, wheeled luggage, pushchairs, or similar mobility equipment.
Nevertheless, the term “heel proof” should not automatically be treated as confirmation of accessibility compliance. Architects and project managers should compare the grate’s opening measurements, surface level, slip characteristics, and installation details with applicable accessibility standards and local regulations.
Where Can the RAIN Heel Proof Grate Be Installed?
The grate may be appropriate for commercial and public environments where trees are positioned close to pedestrian routes. Potential applications include:
-
Public sidewalks and pedestrian streets
-
Retail centres and shopping districts
-
Hotels and office developments
-
Educational and healthcare campuses
-
Public parks and civic plazas
-
Residential courtyards
-
Transport and municipal projects
The suitability of the product depends on anticipated traffic, environmental exposure, drainage conditions, tree species, pavement design, and maintenance access.
Is It Suitable for High-Traffic Areas?
A heel-proof grate can support pedestrian circulation, but its suitability for high-traffic areas depends on its material and structural rating. Some locations may experience service carts, maintenance equipment, bicycles, or occasional vehicle loads.
Project teams should confirm whether the grate and its supporting frame are rated for the expected use. The frame, foundation, and surrounding pavement must work together to prevent movement, settlement, or uneven edges.
What Materials Should Be Considered?
Tree grates are often produced from cast iron, ductile iron, steel, or other durable materials. Each material has different characteristics relating to strength, weight, corrosion resistance, appearance, and maintenance.
Cast iron is frequently selected for urban landscape applications because of its strength and traditional appearance. Over time, unfinished iron may develop a natural weathered surface. Coated or painted finishes can provide a more controlled initial appearance, although the finish may require periodic inspection.
Material selection should take local weather conditions into account. Coastal exposure, road salts, standing water, and heavy rainfall can affect the grate’s appearance and service life.
Does the Grate Support Tree Health?
A tree grate protects the soil from direct foot traffic and helps reduce soil compaction around the tree. Its openings allow rainwater and air to enter the tree pit. These functions can contribute to a more organised tree planting area.
However, the grate alone cannot ensure healthy tree growth. Tree health also depends on soil volume, drainage, irrigation, species selection, root space, planting depth, and ongoing care.
The central opening should be inspected as the tree matures. If the trunk approaches the inner edge, removable sections may need to be adjusted or removed to avoid restricting growth.
What Should Be Checked Before Installation?
Before specifying the product, confirm the tree pit dimensions, grate thickness, frame requirements, central opening size, material, finish, load rating, and drainage arrangement.
The installation surface should remain level with the surrounding pavement. Raised edges may create a trip hazard, while recessed areas can collect water and debris. A stable supporting frame is also necessary to distribute weight and prevent the grate from shifting.
How Should the Grate Be Maintained?
Routine maintenance generally includes removing leaves, litter, soil, and other debris from the openings. The frame and grate should be checked for movement, cracks, corrosion, damaged coatings, or uneven settlement.
The space around the trunk must also be monitored. Regular inspection allows maintenance teams to respond before the grate interferes with tree growth or becomes unstable.
Final Considerations
So, Should You Choose a RAIN 42" x 42" Heel-Proof Grate? It can be an appropriate option when a project requires a compact tree grate with narrow openings, pedestrian-friendly detailing, and a defined architectural pattern.
The final decision should be based on the tree pit size, anticipated foot traffic, accessibility requirements, material performance, load rating, installation conditions, and future tree growth. Reviewing these factors before specification can help ensure that the grate supports both the landscape design and the practical needs of the surrounding space.
