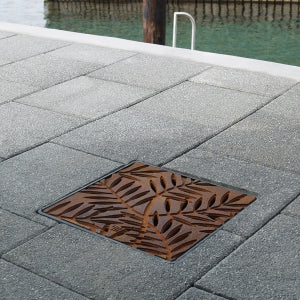

Urban drainage systems play a critical role in maintaining road safety, preventing waterlogging, and ensuring the long-term durability of infrastructure. Among the many components used in modern stormwater management, catch basin grates serve as a protective and functional surface covering for drainage points. The LOCUST 12 Sq. Heel Proof Catch Basin Grate with Safety Design is engineered to meet these exact requirements through structural strength, pedestrian safety, and consistent hydraulic performance.
Understanding Catch Basin Grates in Drainage Systems
Catch basin grates are surface-level covers installed over stormwater inlets. Their primary role is to allow surface runoff to enter the drainage network while preventing debris, vehicles, and pedestrians from falling into the basin below.
Unlike standard drainage covers, a heel-proof design ensures that narrow footwear such as heels or small wheels cannot become trapped in the grate openings. The 12-square format further supports uniform load distribution and compatibility with standardized basin sizes.
Key Construction Features of the LOCUST 12 Sq. Grate
High-Strength Material Composition
The LOCUST 12 Sq. Heel Proof Catch Basin Grate with Safety Design is typically manufactured using ductile iron or reinforced cast iron. These materials provide:
-
High tensile strength
-
Resistance to cracking under repeated loads
- Long-term corrosion resistance when properly coated
Precision Grid Pattern
The grid layout is designed with narrow slots that meet heel-proof compliance while maintaining sufficient open area for water intake. This helps to reduce surface pooling without increasing clogging risk.
Surface Finish and Coating
Protective coatings such as bitumen, epoxy, or galvanization help minimize oxidation and surface wear. This finish also reduces friction variability in wet conditions.
Safety Design Principles and Compliance
Heel-Proof Slot Engineering
Heel-proof grates are designed with slot widths narrow enough to prevent footwear from entering the opening. This is essential for:
-
Pedestrian walkways
-
Transit platforms
-
Commercial building entrances
- Public plazas
Slip Resistance
Textured surfaces improve traction during rainfall, reducing the likelihood of slip hazards on footpaths, parking structures, and roadside drainage systems.
Structural Load Ratings
These grates are manufactured to meet load classifications appropriate for their intended environment, including:
-
Pedestrian-only areas
-
Light vehicle traffic
- Heavy-duty commercial loading zones
Compliance with standard load classes ensures predictable performance under pressure.
Common Installation Environments
Pedestrian Infrastructure
Heel-proof grates are especially suited for areas with consistent foot traffic, including:
-
Sidewalks
-
Footbridges
-
Building entrances
- Educational campuses
The safety-oriented opening design eliminates tripping hazards caused by traditional wide-slot grates.
Commercial and Retail Areas
Shopping complexes, retail parks, and commercial streets require drainage systems that balance water flow, safety, and surface durability. The 12-square design ensures compatibility with standardized basin frames used in such environments.
Parking Areas and Internal Roadways
For parking structures and service lanes, load-rated grates offer sufficient strength for vehicle movement while preserving pedestrian protection.
Hydraulic Performance and Drainage Efficiency
Optimized Open Area Ratio
The drainage efficiency of a grate depends on the proportion of open area to total surface area. The slot pattern of this model is engineered to:
-
Allow fast intake during peak flow
-
Reduce surface ponding
- Prevent debris accumulation
Flow Distribution Control
Uniform grid spacing ensures predictable water intake patterns, preventing localized flooding near curb lines and pedestrian crossings.
Durability and Environmental Resistance
Weather Exposure Tolerance
Drainage covers are exposed to solar radiation, temperature variation, moisture, and pollutants. High-grade metal composition ensures stable performance across extreme temperature ranges and seasonal weather patterns.
Corrosion and Chemical Resistance
Protective coatings guard against exposure to:
-
De-icing salts
-
Industrial runoff
- Urban pollutants
This extends service life and prevents structural weakening over time.
Installation Guidelines and Fitment Accuracy
Frame Compatibility
A 12-square format allows seamless integration with standardized drainage frames without the need for on-site modifications.
Seating and Load Transfer
Proper seating ensures full contact between the grate and the supporting frame. This improves:
-
Structural stability
-
Noise reduction from movement
- Even load transfer during traffic pressure
Incorrect seating can lead to premature wear and surface instability.
Maintenance and Inspection Practices
Although designed for long-term operation, routine inspection improves functional lifespan.
Recommended Maintenance Actions
-
Debris removal from surface slots
-
Visual inspection for cracks or warping
-
Coating condition assessment
- Basin sediment cleaning
- Scheduled maintenance prevents hydraulic inefficiency and surface hazards.
Role in Public Safety and Regulatory Compliance
Urban drainage components must align with safety regulations related to pedestrian pathways, disability-friendly infrastructure, and public risk control. The LOCUST 12 Sq. Heel Proof Catch Basin Grate with Safety Design supports these goals through:
-
Reduced trip hazards
-
Improved surface grip
-
Controlled load performance
- Predictable failure behavior under stress
These qualities make it suitable for government, commercial, and mixed-use construction projects.
Conclusion
The LOCUST 12 Sq. Heel Proof Catch Basin Grate with Safety Design functions as a critical surface component in modern stormwater management systems. Its structural integrity, controlled drainage performance, and pedestrian-safe geometry make it suitable for a wide range of infrastructure applications. The combination of material strength, slot precision, load capacity, and environmental resistance supports long-term functional stability in both public and private construction projects.
When properly installed and maintained, this grate contributes to consistent drainage performance, reduced maintenance overhead, and improved surface safety across urban environments.
