Proper drainage is essential for protecting outdoor and indoor spaces from water damage. Channel drains, also known as trench drains, are widely used in driveways, patios, pool decks, garages, and commercial areas to direct surface water safely away. If you want to understand the correct process from start to finish, this guide will help you learn how to install a channel drain in a clear and professional manner.
What Is a Channel Drain?

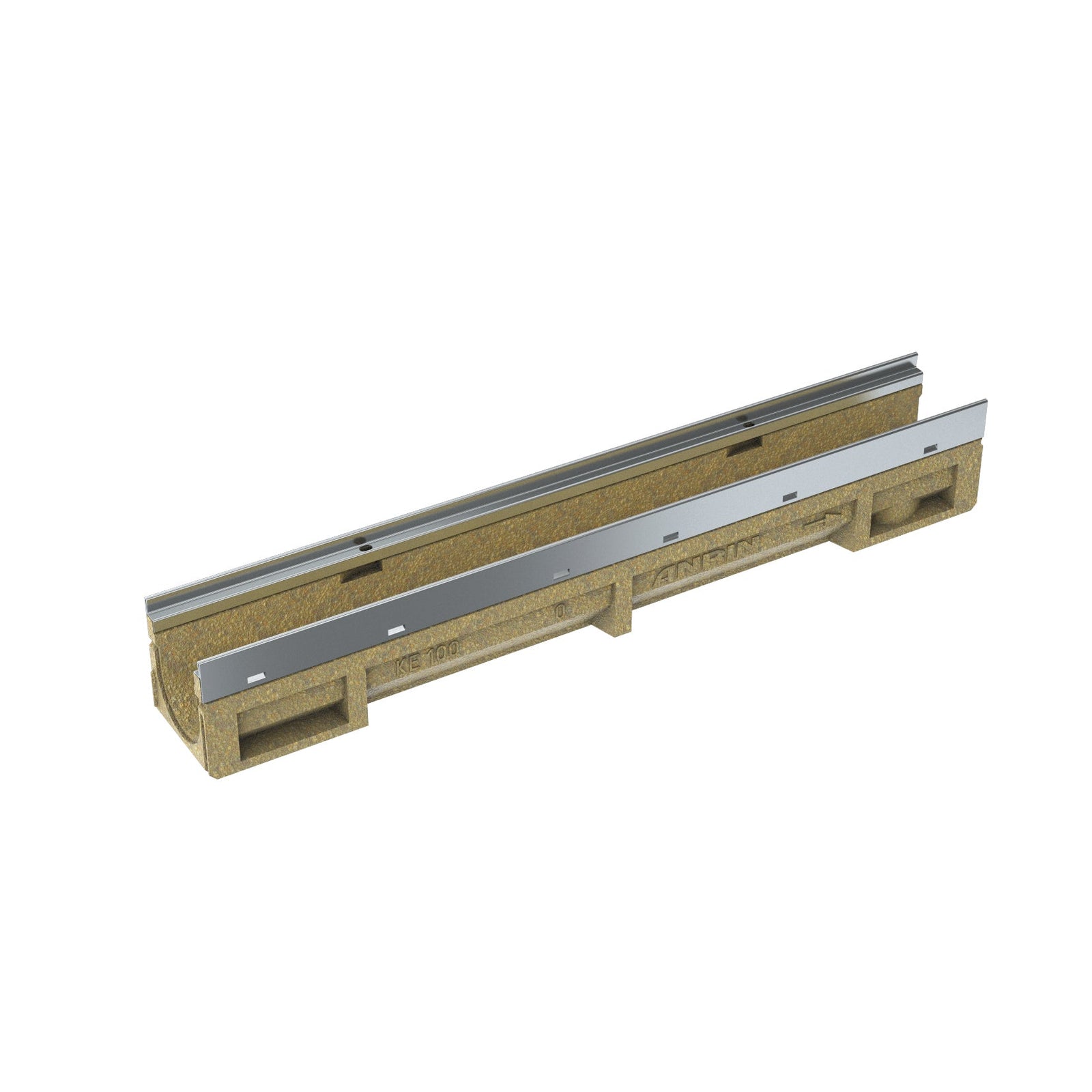

A channel drain is a linear drainage system designed to collect and redirect surface water. It consists of a long channel with a removable grate on top, connected to an outlet pipe that carries water to a designated drainage point.
Why Channel Drains Are Important
Channel drains help prevent:
-
Water pooling on hard surfaces
-
Slippery conditions and safety hazards
-
Structural damage to concrete and paving
-
Soil erosion near foundations
Planning Before Installation
Proper planning is the foundation of a successful installation.
Choose the Right Location
Identify areas where water naturally collects, such as:
-
Driveway entrances
-
Patio edges
-
Garage thresholds
-
Pool surrounds
The channel drain should be positioned where it can intercept water flow effectively.
Measure and Mark the Area
Measure the length of the drain needed and mark the trench path clearly. Ensure the slope directs water toward the outlet point.
Check Local Drainage Rules
Some areas have regulations regarding water discharge. Confirm whether water must be directed to a soakaway, storm drain, or other approved outlet.
Tools and Materials Required
Before starting, gather all necessary tools and materials to avoid delays.
Essential Tools
-
Shovel or trenching tool
-
Spirit level
-
Measuring tape
-
Rubber mallet
-
Trowel
Required Materials
-
Channel drain sections and grates
-
Concrete mix
-
PVC drainage pipe and fittings
-
Gravel or crushed stone
Step-by-Step Installation Process
Follow these steps carefully to ensure proper installation.
Step 1: Excavate the Trench
Dig a trench that is:
-
Wide enough to fit the channel drain with space for concrete on both sides
-
Deep enough to allow for a concrete base and proper slope
A gentle slope of approximately 1–2% toward the outlet ensures smooth water flow.
Step 2: Prepare the Base
Add a layer of compacted gravel at the bottom of the trench. This provides stability and improves drainage. Pour a thin concrete base over the gravel and level it carefully.
Step 3: Position the Channel Drain
Place the channel drain sections onto the concrete base. Use a spirit level to ensure they sit evenly and maintain the correct slope toward the outlet.
Connecting Drain Sections
Most channel drains use interlocking ends. Secure each section tightly to prevent leaks or misalignment.
Step 4: Connect the Outlet Pipe
Attach the outlet pipe to the drain’s discharge point. Ensure all joints are sealed properly to prevent water leakage.
Step 5: Secure with Concrete
Pour concrete along both sides of the channel drain, ensuring it supports the system firmly. Avoid pouring concrete into the channel itself.
Allow the concrete to cure according to manufacturer recommendations.
Step 6: Install the Grates
Once the concrete has set, place the grates on top of the channel. Secure them according to the system design, ensuring they sit flush with the surrounding surface.
Common Installation Mistakes to Avoid
Understanding common errors can save time and future repairs.
Incorrect Slope
A flat or reverse slope prevents proper water flow. Always check alignment before concrete sets.
Poor Outlet Connection
Loose or misaligned outlet pipes can cause leaks and reduce drainage efficiency.
Inadequate Support
Failing to embed the channel drain securely in concrete may lead to movement or cracking under load.
Maintenance Tips for Long-Term Performance
Even a well-installed system needs regular care.
Routine Cleaning
Remove leaves, dirt, and debris from the grates to maintain water flow.
Inspect After Heavy Rain
Check for blockages or shifting after storms and address issues promptly.
Periodic Grate Removal
Occasionally remove the grates to clean inside the channel and inspect outlet connections.
When to Consider Professional Help
While many homeowners can handle basic installations, professional assistance may be advisable if:
-
The area has heavy vehicle traffic
-
The drainage layout is complex
-
Local regulations require certified installation
Professionals ensure compliance and long-term reliability.
Final Thoughts
Learning proper installation techniques helps protect surfaces and structures from water damage. By following this guide, you can confidently learn how to install a channel drain?with attention to planning, accuracy, and durability. A correctly installed channel drain not only improves water management but also extends the life of surrounding surfaces, making it a practical investment for residential and commercial spaces alike.
