Unistrut channels are widely used in construction, electrical, mechanical, and industrial projects due to their strength, flexibility, and ease of installation. Selecting the correct channel is essential to ensure safety, durability, and long-term performance. Understanding How to Select the Right Unistrut Channel involves evaluating load requirements, application type, material, finish, and installation conditions. explains each factor clearly to help professionals make informed decisions without unnecessary complexity.
Understanding What a Unistrut Channel Is
A Unistrut channel is a metal framing system designed to support mechanical, electrical, and plumbing components without welding or drilling. It uses standardized channels, fittings, and fasteners, allowing quick assembly and future modifications.
Unistrut channels are commonly used for:
-
Pipe and conduit support
-
Cable trays and HVAC systems
-
Equipment mounting
-
Structural framing applications
Choosing the correct channel depends on how and where it will be used.
Evaluate the Load-Bearing Requirements
The first step in understanding How to Select the Right Unistrut Channel? is determining the load it must support.
Identify Static and Dynamic Loads
-
Static loads include fixed equipment or piping
-
Dynamic loads include vibration, movement, or shifting forces
Heavier loads require deeper or thicker-gauge channels. Always calculate the total weight, including future expansion if applicable.
Check Manufacturer Load Ratings
Each Unistrut channel has a specific load capacity. Using a channel below the required rating can compromise safety and structural stability.
Choose the Correct Channel Profile
Unistrut channels come in different shapes and sizes, each suited for specific applications.
Single Channel
Single channels are used for light to moderate loads and are common in electrical and plumbing installations.
Double Channel
Double channels provide increased strength and are ideal for heavy-duty industrial applications where higher load capacity is required.

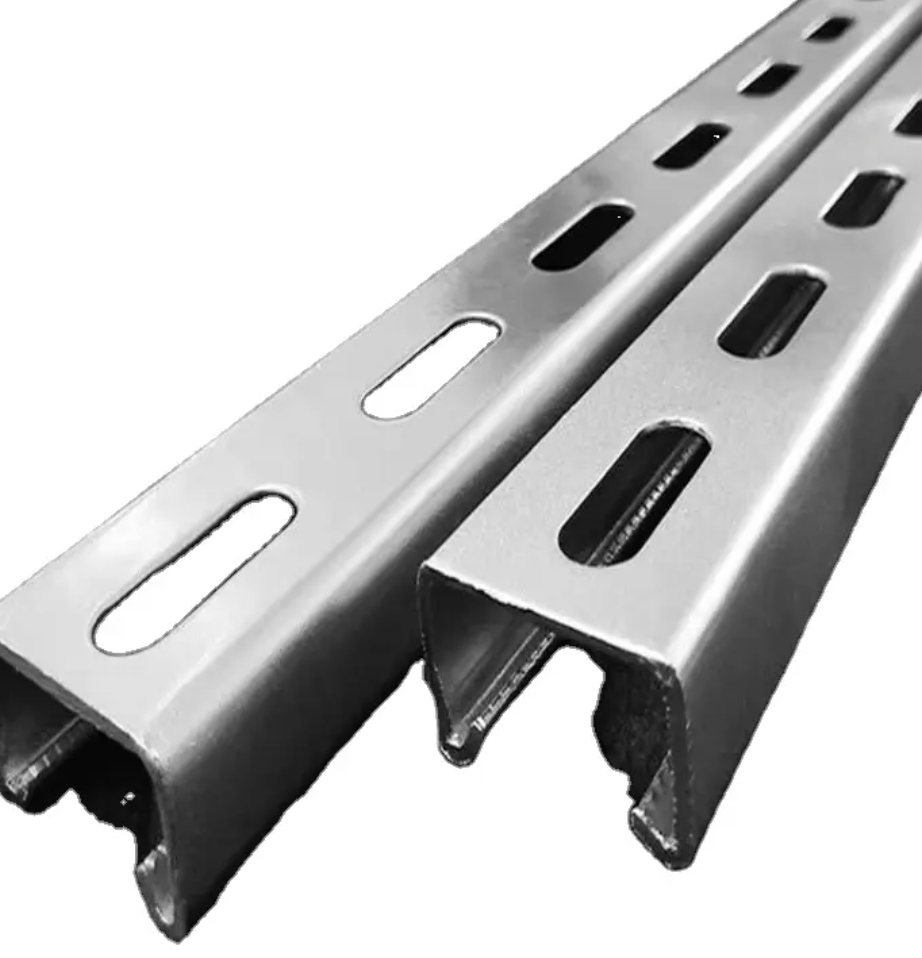

Slotted vs. Solid Channels
-
Slotted channels allow easier adjustments and faster installation
-
Solid channels offer higher strength and are preferred when maximum rigidity is needed
The choice depends on whether flexibility or strength is the primary concern.
Select the Right Material
Material selection plays a critical role in the channel’s performance and lifespan.
Steel Unistrut Channels
Steel channels are widely used due to their strength and cost-effectiveness. They are suitable for most indoor and general-purpose applications.
Stainless Steel Channels
Stainless steel is ideal for corrosive environments such as chemical plants, food processing units, and coastal areas.
Aluminum Channels
Aluminum channels are lightweight and corrosion-resistant, making them suitable for applications where weight reduction is important.
Choosing the right material ensures durability and reduces long-term maintenance costs.
Consider the surface finish.
The finish protects the channel from environmental damage and corrosion.
Pre-Galvanized Finish
Suitable for indoor environments with minimal moisture exposure.
Hot-Dip Galvanized Finish
Provides enhanced corrosion resistance and is recommended for outdoor or high-humidity environments.
Powder-Coated Finish
Used when aesthetics are important or when additional surface protection is required.
Matching the finish to the installation environment extends the life of the Unistrut system.
Account for Installation Conditions
Installation conditions directly influence how to select the right Unistrut channel.
Indoor vs. Outdoor Applications
Outdoor installations require channels with higher corrosion resistance and stronger finishes.
Space and Clearance Limitations
In confined spaces, compact or shallow channels may be more suitable.
Future Modifications
If future adjustments are expected, slotted channels allow easier repositioning of components without dismantling the entire system.
Ensure Compatibility with Accessories
Unistrut systems rely on compatible fittings, brackets, clamps, and fasteners.
Standardized Components
Always ensure the channel size matches the accessories being used to avoid installation issues.
Load Distribution
Proper fittings help distribute loads evenly across the channel, improving overall system strength.
Using compatible accessories ensures a secure and stable installation.
Follow Safety and Compliance Standards
Safety should never be overlooked when selecting a Unistrut channel.
Industry Standards
Ensure the channel meets applicable construction and industrial standards.
Local Regulations
Different regions may have specific load and material requirements that must be followed.
Compliance reduces the risk of failure and ensures project approval.
Conclusion
Understanding How to Select the Right Unistrut Channel? requires careful consideration of load capacity, channel profile, material, finish, installation conditions, and compatibility with accessories. Selecting the correct channel not only improves safety but also ensures long-term performance and efficiency.
By evaluating each factor methodically, professionals can choose a Unistrut channel that meets project requirements, minimizes maintenance, and supports reliable structural performance over time.
