Trench drain gratings need to do more than allow surface water to enter a drainage channel. They must also withstand the loads created by pedestrians, vehicles, and regular use without compromising drainage performance. For this reason, understanding a grating's load classification and construction is important before choosing it for a project.
So, How Strong Is the ANRIN KE100 Plastic Trench Drain Grating? The answer depends partly on the particular plastic grating configuration selected. ANRIN lists KE-100 OvalGrip plastic gratings made from polyamide in nominal width 100 mm, with versions available for B125 and C250 load classes.
These ratings make the product suitable for specific environments when the complete drainage system is selected, installed, and supported according to the manufacturer's requirements.
Understanding the ANRIN KE100 Plastic Grating
The ANRIN KE-100 belongs to the manufacturer's reinforced-edge drainage channel range. The system can be combined with several cover designs made from materials such as polyamide, steel, stainless steel, and cast iron.
For the plastic option, ANRIN identifies its OvalGrip design as a slotted grating. The manufacturer lists a 50 cm length and nominal width of 100 mm for these plastic versions. Depending on the specific model, the load classification may reach B125 or C250.
The grating therefore combines a relatively lightweight material with a design intended to handle defined loading conditions.
What Does the Load Class Mean?
A load class indicates the level of mechanical loading that a drainage component has been tested or designed to accommodate under the applicable classification system.
The KE-100 technical information lists plastic OvalGrip grating options within the B125 and C250 categories.
These classes should not be interpreted simply as a statement that every plastic grating can be installed anywhere. The appropriate class depends on factors such as traffic conditions, installation location, channel support, and expected loading.
A drainage grating should therefore always be selected according to the actual conditions of the site rather than material alone.
What Makes the KE100 Plastic Grating Strong?
Several design characteristics contribute to the grating's ability to withstand regular loads.
Polyamide Construction
ANRIN identifies polyamide as the material used for its OvalGrip plastic grating. Polyamide is an engineering plastic commonly used where mechanical strength and dimensional stability are required.
Using a moulded engineering material also allows structural features to be incorporated directly into the grating. This can help distribute forces through the component instead of concentrating them in a small area.
However, strength should always be evaluated according to the stated load class rather than assuming that all plastic components perform in the same way.
Reinforced Drainage System Design

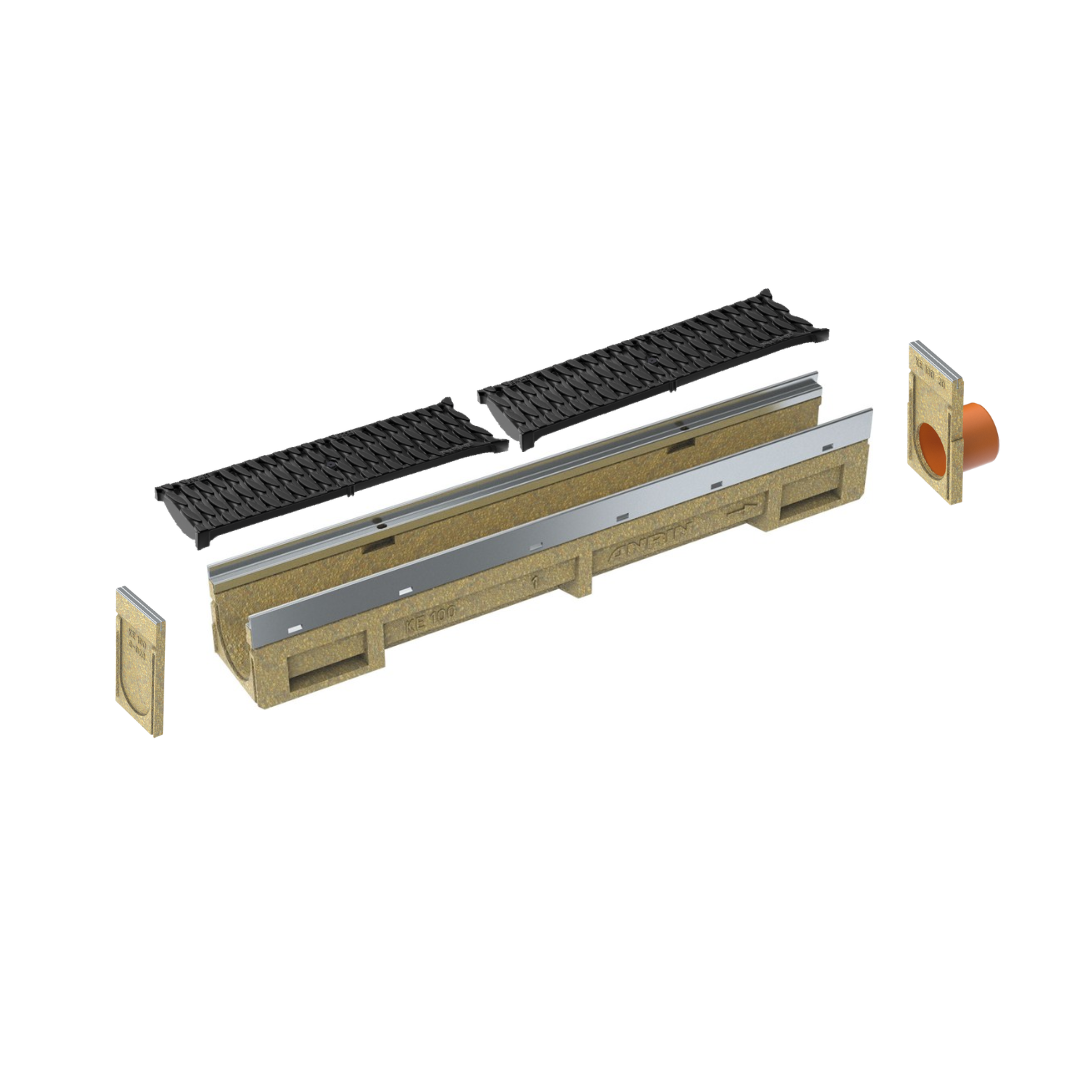

The grating works as part of the KE-100 reinforced-edge channel system. The performance of a trench drain is not determined by its cover alone.
The surrounding channel, edge reinforcement, foundation, installation method, and support all influence how loads pass through the system. Incorrect installation can reduce the practical performance of even a properly classified drainage product.
For this reason, contractors should follow the manufacturer's installation details and project specifications.
Compact Grating Sections
The KE-100 plastic OvalGrip gratings are listed in 50 cm sections. Shorter grating sections can make individual components easier to position, remove, inspect, and replace during maintenance.
The design also uses narrow drainage slots. Technical documentation identifies an 8 mm slot width for plastic OvalGrip options.
This arrangement provides openings for water collection while maintaining a continuous walking or driving surface.
Where Can the ANRIN KE100 Plastic Grating Be Used?
The correct application depends primarily on the load-class version specified for the project.
A B125-rated configuration may be considered where loading requirements fall within that classification. Higher-rated C250 configurations can accommodate environments requiring a greater tested load category.
Potential installations can include landscaped developments, pedestrian areas, entrances, courtyards, commercial surroundings, and other paved surfaces where linear drainage is required.
Site designers should still check expected vehicle movement, wheel loads, traffic frequency, drainage volume, and installation conditions before selecting a particular model.
Does Plastic Mean the Grating Is Less Durable?
It is easy to assume that metal automatically provides greater strength than plastic, but material alone does not provide enough information to determine suitability.
Drainage components are better compared through their documented load classifications and intended applications. ANRIN offers KE-100 gratings in several materials and load classes, allowing the cover to be matched to individual project requirements.
A correctly specified plastic grating can therefore be suitable for applications within its rated loading conditions.
Maintenance Also Affects Long-Term Performance
Regular inspection is important for any trench drainage installation.
Leaves, sediment, stones, and other debris should be removed when they begin restricting water entry. The grating should also be inspected for visible damage, movement, or poor seating.
Maintaining a clear channel reduces drainage problems and gives property managers an opportunity to identify damaged components before they become more serious.
How Strong Is the ANRIN KE100 Plastic Trench Drain Grating in Practice?
When asking How Strong Is the ANRIN KE100 Plastic Trench Drain Grating?, the most useful reference is its documented load classification.
ANRIN currently lists KE/KC/KF-100 OvalGrip polyamide gratings in nominal width 100 mm with B125 and C250 load-class options, depending on the model. This demonstrates that the plastic grating is engineered for defined structural loads rather than functioning only as a lightweight decorative cover.
Its practical strength, however, depends on selecting the correct version and installing the entire drainage system properly.
Conclusion
The ANRIN KE100 plastic trench drain grating combines polyamide construction, a slotted OvalGrip design, and documented load classifications suitable for specific drainage applications.
Rather than judging its strength simply because it is made from plastic, project planners should consider the exact B125 or C250 classification, anticipated traffic, installation conditions, and complete drainage-system design.
When the grating is correctly specified and properly installed, it can provide a practical drainage surface while handling the loads associated with its stated classification.
