Tree grates are commonly installed around trees in paved public and commercial spaces. They protect the planting area while allowing the surrounding surface to remain accessible and visually organised. Their design must balance appearance, tree health, pedestrian movement, drainage, durability, and installation requirements.

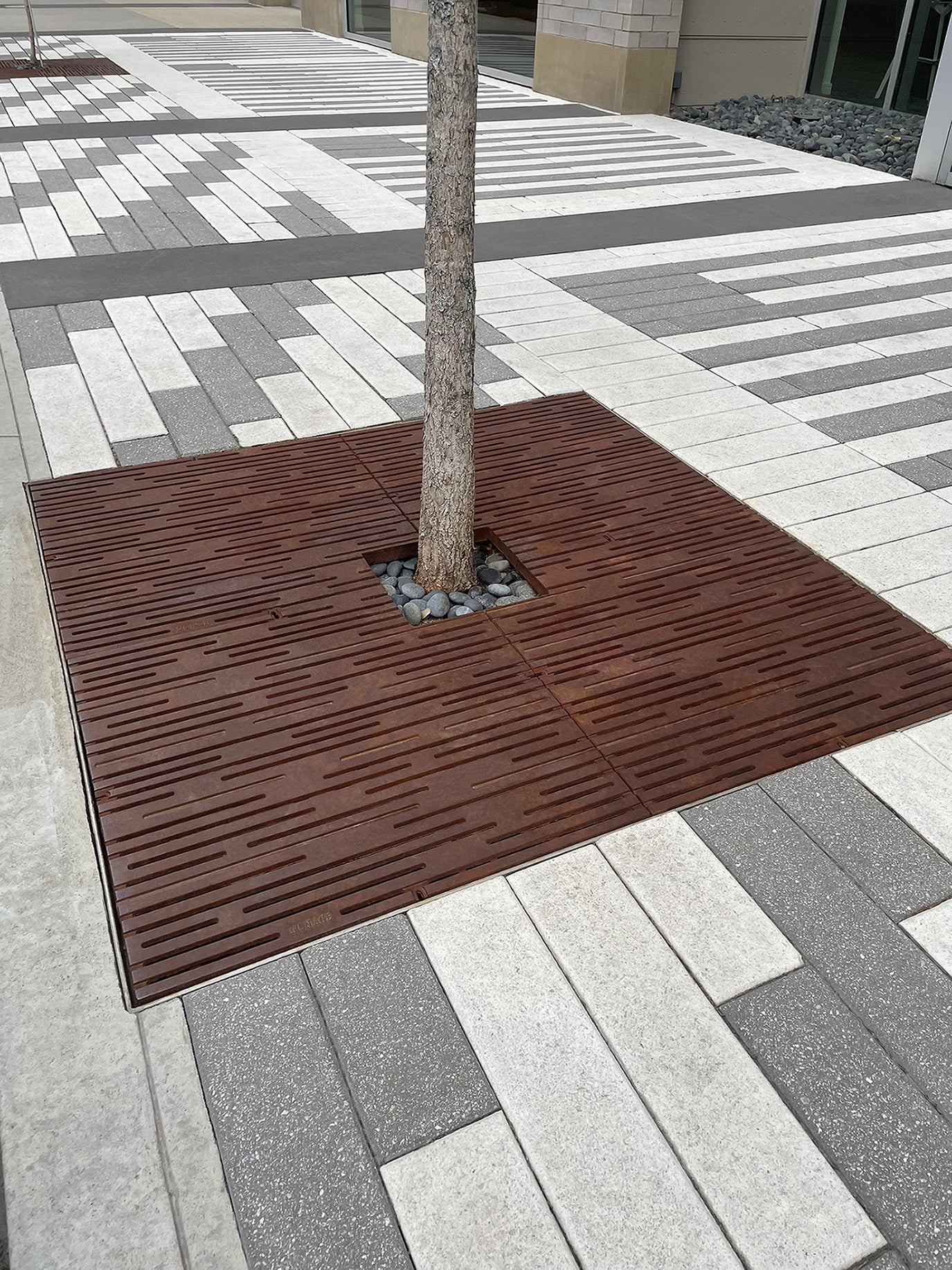

How Is the Iron Age Designs RAIN 4' x 4' Tree Grate Designed? The product is developed as a square landscape element with a rain-inspired decorative pattern. Its four-foot-by-four-foot format creates a defined area around the tree while helping the grate integrate with pavements, plazas, walkways, and other hardscape surfaces.
Rather than serving only as a protective cover, the RAIN tree grate can contribute to the overall landscape design. Its pattern introduces visual detail without separating the tree from the surrounding architectural environment.
Understanding the 4' x 4' Square Format
The stated 4' x 4' measurement refers to the overall square dimensions of the tree grate. This format provides a structured planting area that can be incorporated into standard paving layouts.
Square tree grates are frequently used because their straight edges align naturally with tiles, concrete slabs, stone paving, and brick patterns. This can help landscape architects create a consistent transition between the tree opening and the pedestrian surface.
The grate generally includes a central opening for the tree trunk. The correct opening size should account for the tree species, its current trunk diameter, and expected future growth. Adequate space is important because a tree trunk should not come into direct contact with the grate as it matures.
Rain-Inspired Decorative Pattern
One of the defining elements of the RAIN design is its surface pattern. The openings appear to draw inspiration from falling rain or flowing water, giving the grate a natural visual theme.
Relationship Between Nature and Architecture
A rain-based pattern is suitable for tree grates because it connects the product with the natural elements found in the landscape. The tree, water-inspired openings, and surrounding pavement work together as part of one coordinated design.
This approach may be particularly relevant for:
-
Urban plazas
-
Public parks
-
Commercial entrances
-
Pedestrian streets
-
Hotel and resort landscapes
-
Educational campuses
-
Mixed-use developments
The decorative pattern can provide visual interest while remaining suitable for modern architectural settings.
Openings Across the Surface
The openings in a tree grate perform practical functions in addition to creating a pattern. They allow rainwater and irrigation water to reach the soil beneath the grate. They can also support air movement around the root area and reduce the amount of exposed soil at pavement level.
The spacing and shape of these openings should be evaluated according to the project’s accessibility requirements, pedestrian use, maintenance plan, and applicable local standards.
Supporting the Tree Planting Area
Trees planted in hardscaped locations face different conditions from trees growing in open soil. Pedestrian activity, compacted soil, restricted root space, limited water infiltration, and surrounding pavement can affect long-term growth.
A tree grate creates a physical boundary around the planting pit. It helps discourage direct foot traffic over the soil and reduces the likelihood of the tree opening being used as an informal walking area.
The grate does not replace proper planting preparation. Soil volume, drainage, irrigation, root management, and tree selection remain important parts of the landscape plan. However, a properly specified grate can support the planting area while keeping the surrounding space orderly.
Integration With Pedestrian Surfaces
A key purpose of a tree grate is to create a more consistent surface around a tree opening. Leaving soil fully exposed in a busy walkway may create uneven conditions, particularly when the soil becomes wet, displaced, or compacted.
The RAIN 4' x 4' grate is intended to fit within the surrounding pavement system. Correct installation helps maintain an appropriate transition between the grate and adjacent materials.
Importance of a Supporting Frame
Tree grates are generally installed with a suitable frame or support system. The frame holds the grate securely and helps transfer loads to the surrounding structure rather than directly to the soil.
The frame must be positioned accurately and installed at the correct elevation. An improperly installed frame can result in movement, uneven edges, noise, or alignment problems.
Project teams should confirm frame compatibility, grate thickness, pavement depth, opening dimensions, and installation clearances before ordering.
Material and Finish Considerations
Tree grates used outdoors are exposed to moisture, soil, changing temperatures, pedestrian activity, debris, and routine maintenance. The selected material and finish must therefore match the site conditions and design requirements.
Finish options can also influence the grate’s appearance. A finish may be chosen to coordinate with benches, bollards, railings, planters, drainage covers, or other metal elements in the landscape.
Before specification, designers should verify the available material, finish, weathering characteristics, maintenance requirements, and colour variation directly with the manufacturer or supplier. Product details may vary according to the selected configuration.
Planning for Tree Growth and Maintenance
A tree grate should not be selected only for the tree’s present size. The design must also account for future trunk development and ongoing landscape maintenance.
The central opening should be inspected periodically to ensure that the trunk has sufficient clearance. Leaves, litter, sediment, and other debris may collect within the surface openings and should be removed as part of regular site maintenance.
Access may also be required for irrigation inspection, soil care, or tree replacement. A sectional grate design can make installation and future maintenance more manageable because individual sections may be handled separately.
Key Factors to Review Before Installation
Before specifying the RAIN 4' x 4' tree grate, the project team should review:
-
The exact tree pit and grate dimensions
-
Tree species and expected trunk growth
-
Central opening size
-
Frame and support requirements
-
Adjacent paving depth and material
-
Pedestrian traffic conditions
-
Drainage and irrigation arrangements
-
Accessibility requirements
-
Load expectations
-
Finish and maintenance needs
These checks help ensure that the grate is appropriate for the site rather than selected only for its visual pattern.
Conclusion
The Iron Age Designs RAIN 4' x 4' tree grate combines a structured square format with a nature-inspired surface pattern. Its design helps define the tree planting area, supports water and air movement, and creates a coordinated transition between landscaping and pavement.
Successful performance depends on correct sizing, suitable structural support, sufficient trunk clearance, proper installation, and regular maintenance. When these factors are considered during planning, the RAIN tree grate can serve as both a functional landscape component and a distinctive architectural detail.
