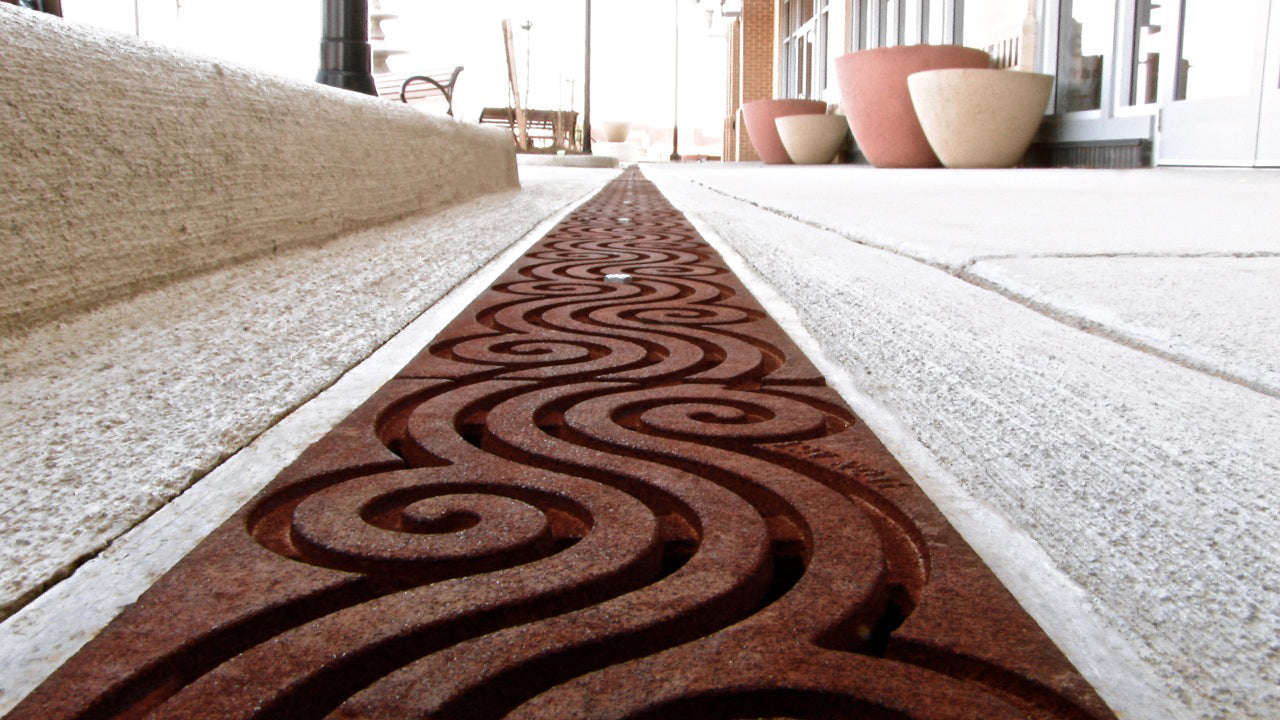

Installing trench drainage systems requires accuracy, proper alignment, and attention to structural details. The Iron Age Designs ARGO Trench Grate is widely used in architectural and landscape drainage systems because of its durability and clean finish. However, its performance depends heavily on correct installation.
Understanding How Do You Install Iron Age Designs ARGO Trench Grates Correctly? is essential for ensuring long-term drainage efficiency, preventing water pooling, and maintaining structural integrity around paved or concrete surfaces.
Understanding the ARGO Trench Grate System
Before beginning installation, it is important to understand how the system works. The ARGO trench grate is designed to sit on top of a linear drainage channel. It allows surface water to pass through while preventing debris from entering the drainage system.
The system typically includes:
-
A pre-formed drainage channel
-
Grate sections
-
Support frames or edging rails
-
Fixing components such as screws or locking clips
Proper alignment of all components ensures smooth water flow and prevents movement or displacement under load.
Preparing for Installation
Preparation is the most critical step in ensuring the trench grate performs correctly.
Site Inspection and Measurement
Start by inspecting the installation area. Measure the trench length, width, and depth accurately. The channel must match the dimensions of the Iron Age Designs ARGO Trench Grate system.
Check:
-
Slope direction for water flow
-
Surrounding surface levels
-
Load-bearing requirements (pedestrian or vehicular use)
Excavation and Base Formation
Excavate the trench to the required depth. The base should be stable and compacted. A concrete base is often recommended for long-term durability.
Ensure:
-
Even surface leveling
-
Proper slope (usually 1–2% for drainage flow)
-
No loose soil beneath the channel
Installing the Drainage Channel
Once the base is prepared, the drainage channel can be placed.
Positioning the Channel
Place the channel sections into the trench carefully. Align them in a straight line or desired layout pattern.
Check that:
-
Joints between channel sections are tight
-
The channel sits flush with the planned finished surface level
Securing the Channel in Place
Use concrete or bedding material to secure the channel. Fill around the sides evenly to prevent shifting.
Allow proper curing time before proceeding to grate installation. This ensures the system remains stable under load.
Installing Iron Age Designs ARGO Trench Grates
This step directly addresses How Do You Install Iron Age Designs ARGO Trench Grates Correctly?
Placing the Grate Sections
Once the channel is stable, carefully place the grate sections on top. Each section should fit securely into the channel frame without forcing.
Make sure:
-
The grate edges align perfectly with the channel edges
-
There are no gaps or uneven joints between sections
Locking and Fixing the Grates
Depending on the system design, use the provided locking mechanisms such as screws or clips.
Ensure:
-
All fixing points are tightened evenly
-
The grate does not move when stepped on or loaded
Checking Surface Alignment
After installation, check that the grate surface is flush with the surrounding flooring or pavement. Misalignment can cause tripping hazards or uneven water flow.
Use a level tool to confirm:
-
Horizontal alignment
-
Consistent height across all sections
Finishing and Testing the Installation
Once installed, final checks ensure proper functionality.
Water Flow Test
Pour water across the surface to confirm smooth drainage into the system. Observe whether water flows evenly without pooling.
Load Testing
If the system is designed for vehicle traffic, apply controlled weight to ensure stability. There should be no movement, bending, or noise from the grate.
Cleaning and Final Adjustments
Remove any construction debris from the grate openings. Ensure the drainage path is clear for optimal performance.
Maintenance Tips After Installation
Proper maintenance ensures long-term performance of the Iron Age Designs ARGO Trench Grate system.
-
Clean the grates regularly to prevent clogging
-
Inspect fixing points periodically
-
Remove sediment buildup from channels
-
Check alignment after heavy load usage
Routine inspection helps maintain smooth water drainage and extends the lifespan of the system.
Conclusion
Understanding How Do You Install Iron Age Designs ARGO Trench Grates Correctly? is essential for achieving a reliable and efficient drainage system. From site preparation to final alignment, each step plays a crucial role in ensuring performance and durability.
When installed properly, the ARGO trench grate system provides effective water management, structural stability, and a clean architectural finish suitable for both residential and commercial applications.
