Selecting the right metal framing system is an important part of planning mechanical, electrical, industrial, and construction installations. Unistrut framing systems are commonly used to support pipes, cable trays, conduits, HVAC equipment, lighting, mechanical services, and other building components.
Because projects vary in load, environment, installation method, and structural requirements, there is no single framing configuration suitable for every application. A practical question for contractors, engineers, and facility teams is: How Do You Choose Unistrut Metal Framing Systems for Projects?
The selection process should consider channel size, material type, load capacity, fittings, corrosion resistance, mounting conditions, and future maintenance requirements. Reviewing these factors before installation can help create a support system that is appropriate for the intended application.
Start by Identifying the Project Requirements
The first step is to define what the framing system needs to support.
Consider the equipment, services, or components that will be attached to the structure. A framing system supporting lightweight electrical conduit will have different requirements from one designed for large pipes, mechanical equipment, or cable trays.
Important project considerations include:
-
Total expected load
-
Load distribution
-
Support spacing
-
Installation location
-
Environmental exposure
-
Required channel length
-
Type of mounted equipment
-
Accessibility for maintenance
Clear project requirements make it easier to narrow the available channel and fitting options.
Consider Static and Dynamic Loads
Load capacity is one of the most important factors when choosing a metal framing system.
Static loads remain relatively constant, such as fixed pipes or electrical equipment. Dynamic loads may change because of movement, vibration, mechanical operation, or other forces.
Engineers and installers should review the manufacturer's published load data and determine whether the selected channel configuration can safely support the expected conditions.
The channel should not be selected solely by appearance or dimensions. Load tables, support spacing, installation orientation, and connection methods should also be considered.
Select the Appropriate Unistrut Channel Size
Unistrut channels are available in different profiles, depths, gauges, and configurations. The appropriate channel depends largely on the required strength and installation space.
Deeper or heavier-gauge channels can generally accommodate higher loads, while smaller profiles may be suitable for lighter support applications.
Channel dimensions may also influence where the framing can be installed. Limited ceiling space, narrow service areas, or existing equipment can restrict the available installation depth.
Before selecting a channel, review both structural requirements and physical space limitations.

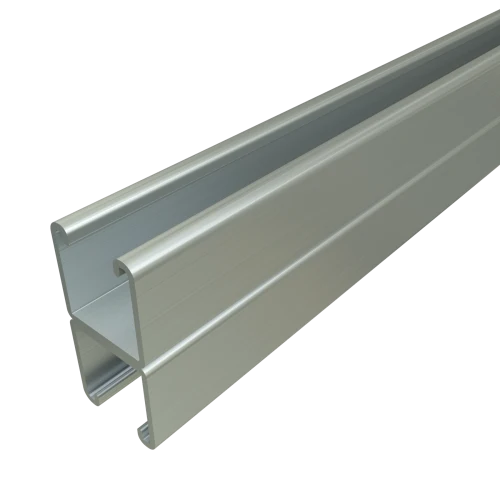

Compare Single and Back-to-Back Channels
Some projects can be completed using a single channel, while heavier-duty applications may require back-to-back or combined channel arrangements.
Back-to-back configurations can provide additional rigidity for larger support frames, equipment racks, and mechanical installations.
The final choice should be based on calculated loading rather than using a heavier configuration automatically. Selecting the appropriate system helps control material usage while maintaining suitable structural performance.
Choose the Right Material and Finish
Environmental conditions can strongly influence the type of metal framing required.
Standard indoor installations may use pre-galvanized or painted steel, depending on the application. Areas exposed to moisture, weather, chemicals, or corrosive conditions may require a more resistant finish or material.
Common options can include:
-
Pre-galvanized steel
-
Hot-dip galvanized steel
-
Stainless steel
-
Plain steel
-
Special protective coatings
The correct material will depend on where the framing is installed and what it may be exposed to during its service life.
Account for Corrosive Environments
Outdoor installations, industrial facilities, food processing areas, coastal regions, and chemical environments may expose framing components to higher levels of corrosion.
In these applications, selecting suitable corrosion-resistant materials is particularly important.
The channel, fasteners, brackets, nuts, and other fittings should also have compatible materials or finishes. Using corrosion-resistant channel with unsuitable accessories can reduce the overall durability of the framing assembly.
Evaluate the Required Fittings and Connections
A metal framing system consists of more than channels alone.
Brackets, channel nuts, bolts, clamps, base plates, beam clamps, angle fittings, and other connectors allow installers to create different support arrangements.
When determining How Do You Choose Unistrut Metal Framing Systems for Projects?, it is therefore useful to consider the complete assembly rather than selecting the channel separately.
The required fittings depend on the shape and purpose of the support structure.
For example, a wall-mounted frame may require brackets and anchors, while a suspended support system may require threaded rods, channel nuts, and suitable suspension hardware.
Consider the Installation Method
The installation location can affect both channel selection and fitting requirements.
Unistrut framing systems may be installed on:
-
Walls
-
Floors
-
Ceilings
-
Structural beams
-
Roof structures
-
Mechanical service areas
Each installation method introduces different forces and connection requirements.
A floor-mounted equipment frame, for example, may need base plates and anchors. A ceiling-mounted support may require threaded rods and suitable structural attachment points.
The supporting building structure should also be able to handle the loads transferred from the framing system.
Plan for Future Adjustments and Maintenance
One reason modular metal framing is widely used is that components can often be adjusted, expanded, or repositioned without extensive fabrication.
When designing the system, consider whether equipment may need to be replaced, relocated, or expanded later.
Allowing sufficient access around channel nuts, brackets, and mounted services can make maintenance more practical.
Future planning may also reduce the need to replace complete support structures when building services change.
Review Manufacturer Load and Installation Information
Product specifications should always be reviewed before completing the framing design.
Manufacturers typically provide information covering channel dimensions, allowable loads, beam loading, column loading, fitting capacities, materials, finishes, and installation guidance.
These details can help designers compare suitable products and confirm whether the planned configuration is appropriate for the application.
For structural or safety-critical installations, calculations and product selection should be reviewed by qualified engineering professionals where required.
Check Component Compatibility
Channels, fittings, channel nuts, fasteners, and accessories should be compatible with one another.
Using components with incorrect dimensions can lead to installation problems or affect the performance of the completed assembly.
Compatibility is especially important where different channel sizes or material finishes are being used within the same project.
Creating a detailed material schedule before installation can help ensure that the required components are available and correctly matched.
Balance Performance With Project Practicality
The strongest or largest framing system is not automatically the most suitable choice.
A well-selected system should provide the required load capacity while also considering installation space, material quantity, accessibility, environmental conditions, and project cost.
Over-specifying components can increase material requirements unnecessarily, while under-specifying them may result in inadequate support.
The objective should be to select a configuration appropriate to the actual project conditions.
Conclusion
Understanding How Do You Choose Unistrut Metal Framing Systems for Projects? involves reviewing several technical and practical factors rather than focusing on a single product characteristic.
Begin with the expected loads and installation conditions, then evaluate channel size, material, finish, fittings, connection methods, and environmental exposure. Component compatibility and future maintenance requirements should also form part of the selection process.
By reviewing manufacturer specifications and designing the framing system around the actual application, project teams can select a Unistrut configuration that provides appropriate support, practical installation, and long-term serviceability.
