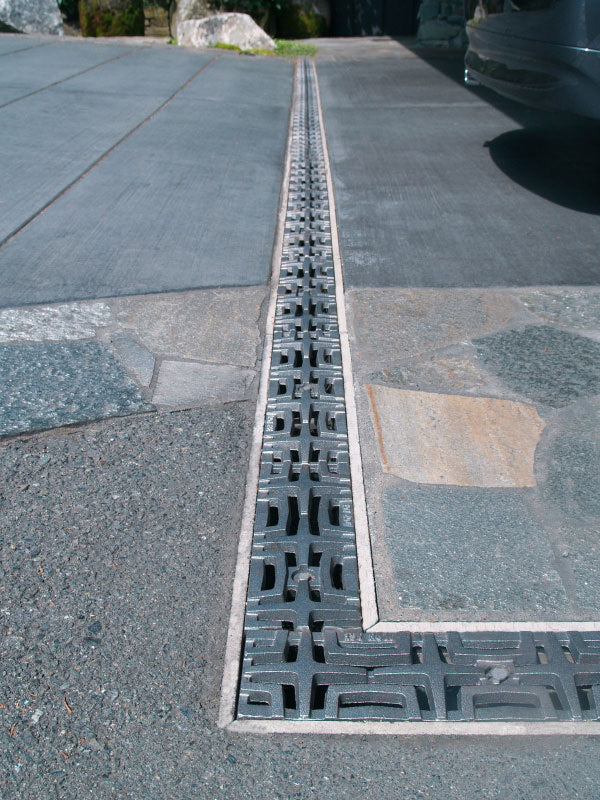

Trench grates play an important role in drainage systems by allowing surface water to enter channels while helping keep walking and driving areas clear. Proper installation is essential because even a well-designed grate may perform poorly if the trench, frame, or surrounding surface is not prepared correctly.
Following suitable CARBOCHON trench grate installation & safety tips can help support efficient drainage, reduce movement, and improve long-term performance. Installation should account for the intended traffic load, drainage requirements, surrounding construction materials, and ongoing maintenance needs.
Inspect the Installation Area Before Starting
Before installing a trench grate, inspect the entire drainage area carefully. The trench should be structurally sound, correctly sized, and free from loose construction material.
Check whether the drainage channel is positioned at the correct level relative to the surrounding floor, pavement, or roadway. Poor alignment can affect water flow and may create uneven surfaces.
The installation area should also provide adequate space for the grate and supporting frame where applicable.
Confirm Drainage Direction and Slope
Water must be able to move efficiently toward the drainage outlet. Check the slope of the surrounding surface and trench before installation.
A channel that is too flat may allow standing water to collect, while an incorrect slope can direct water away from the drainage system.
Verifying the level at the beginning is generally easier than correcting drainage problems after the surrounding concrete or paving has been completed.
Select the Correct Grate for the Application
Trench grates may be used in pedestrian areas, driveways, commercial properties, industrial facilities, parking areas, and other locations. The expected load should influence the grate selected for the project.
A grate installed in a walkway may experience very different loading conditions from one used where cars, delivery vehicles, or heavy equipment regularly pass.
Consider factors such as:
-
Expected pedestrian or vehicle traffic
-
Width and depth of the drainage channel
-
Exposure to weather and moisture
-
Frequency of drainage flow
-
Surrounding flooring or paving material
-
Maintenance and cleaning requirements
Always refer to the applicable product specifications and installation guidance for the intended application.
Prepare the Trench and Supporting Surface
A stable supporting structure is important for keeping the grate level and secure. Remove dust, debris, loose concrete, or other material that could prevent the frame or grate from sitting properly.
If the system includes a supporting frame, ensure the frame sits evenly along the trench.
Uneven support may cause the grate to move, rock, or experience concentrated pressure in specific areas.
Check Measurements Before Fixing Components
Measure the trench opening and grate dimensions before permanent installation.
The grate should fit the intended opening without excessive gaps or unnecessary pressure against surrounding materials. Allowance may also be required for installation tolerances and expansion depending on the system and surrounding construction.
Checking dimensions before fixing the grate can reduce the need for later adjustments.
Maintain Proper Alignment During Installation
Correct alignment affects both safety and appearance. The grate should follow the line of the drainage channel and sit consistently with adjacent sections.
When several grate sections are installed together, check spacing and alignment between each piece.
A long trench installation should be inspected from several angles before final fixing to ensure that sections have not gradually moved out of position.
Use suitable measuring and leveling tools rather than relying only on visual inspection.
Keep the Grate Level With the Surrounding Surface
One of the most important safety considerations is surface level.
A grate that sits too high may create a trip hazard, while one that sits too low can create an uncomfortable transition and may collect debris around the edges.
The final height should suit the surrounding finished surface while still allowing water to flow efficiently into the channel.
Consider Pedestrian Accessibility
In areas where people frequently walk, the surface transition should be smooth and predictable.
The grate openings, orientation, and surrounding installation should also be appropriate for the intended use of the area. Locations used by pedestrians, carts, bicycles, or mobility devices may require additional consideration during product selection and installation.
Secure the Grate Correctly
Where the system requires clips, fasteners, frames, or other fixing components, they should be installed according to the relevant instructions.
A loose grate can move under foot or vehicle traffic, creating noise and increasing the risk of instability.
Avoid using unsuitable replacement fixings simply because they appear to fit. Fixing methods should be compatible with the grate and installation environment.
After installation, test the grate carefully for movement before allowing the area to return to normal use.
Protect the Drainage Channel During Construction
Construction debris can easily enter an open trench before the project is completed.
Concrete residue, sand, packaging, stones, and other material may reduce drainage capacity or block outlets.
Where possible, protect the trench while nearby construction work continues. Before final use, inspect and clean the complete channel.
This step is particularly important because blockages may not be immediately visible once the grates are installed.
Follow Safe Handling Practices
Grates and drainage components should be handled carefully during installation. Depending on their dimensions and weight, suitable lifting methods may be required.
Installers should use appropriate personal protective equipment for the work environment. This may include gloves, protective footwear, eye protection, or other equipment required by site conditions.
Keep unused grates stored on a stable surface where they will not create a trip hazard.
Avoid Working Over an Unprotected Trench
An uncovered drainage channel can present a fall or trip risk during installation.
Where practical, restrict access to the work area until the grate sections are securely installed. Tools and loose materials should also be kept away from the open trench to prevent them from falling into the channel.
Inspect the Installation Before Use
Once installation is complete, carry out a final inspection.
Check that:
-
All grate sections are properly seated
-
The surface is level and aligned
-
Required fasteners are secure
-
There is no excessive movement
-
Drainage openings are clear
-
Construction debris has been removed
-
Water can move freely through the channel
A simple water-flow test can help identify obvious drainage problems before the area is placed into regular service.
Maintain and Inspect Trench Grates Regularly
Installation is only one part of trench grate performance. Regular maintenance helps keep the drainage system clear and allows developing problems to be identified early.
Remove leaves, dirt, sediment, and other debris when necessary. Periodically inspect the grate, surrounding surface, and supporting structure for movement, damage, or wear.
The inspection frequency should reflect the location and amount of traffic the area receives.
Conclusion
Proper trench grate installation depends on accurate preparation, suitable product selection, correct alignment, secure fixing, and regular maintenance. Following practical CARBOCHON Trench Grate installation & safety tips can help reduce installation problems while supporting safe access and effective drainage.
Before completing any installation, confirm the product specifications, load requirements, fixing method, and site conditions. Careful measurement and routine inspection can help the drainage system remain functional and secure over time.
