Exterior drainage is important for protecting paved areas, landscapes, building entrances, walkways, and outdoor gathering spaces. When rainwater is not collected and redirected efficiently, it can create standing water, slippery surfaces, soil erosion, staining, and gradual damage to surrounding materials.
A trench drain provides a continuous channel that collects surface water across a wider area than a single drain outlet. The grate placed over the channel allows water to enter while helping prevent larger debris, footwear, and other objects from entering the drainage system.
CARBOCHON trench grates are designed to combine drainage functionality with a decorative geometric appearance. However, the grate alone does not determine the performance of an exterior drainage system. Drainage capacity also depends on channel dimensions, surface slope, outlet placement, installation quality, and routine maintenance.
How Trench Grates Support Exterior Drainage
Trench drains are commonly installed across driveways, patios, courtyards, pedestrian areas, pool surroundings, building entrances, and other surfaces where water needs to be intercepted before it reaches a vulnerable location.
The grate serves several practical purposes. It creates an opening through which runoff can enter the channel, limits the entry of larger debris, and provides a more stable surface over the drainage trench. Decorative trench grates may also help drainage features fit more naturally into the surrounding hardscape.
CARBOCHON grates are available in different configurations designed to fit compatible trench drain systems. Product specifications vary by size, but available models may include ductile iron construction, ADA-compliant designs, recycled material content, and optional material or finish choices.
Surface Water Collection
A linear trench drain can collect water along an extended section of pavement. This makes it useful in locations where runoff moves across a broad surface rather than toward one small drainage point.
For example, a trench drain placed across the lower end of a sloped driveway can intercept water before it reaches a garage. A channel installed beside a patio or building entrance can help direct rainwater away from doors, walls, and frequently used pedestrian areas.
The grate’s open area influences how easily water can enter the channel. However, the full system must be sized for the expected volume of runoff. A grate with suitable inlet capacity cannot compensate for a channel, pipe, or outlet that is too small.
Debris Management
Leaves, twigs, mulch, litter, and sediment can enter exterior drainage systems during storms. A trench grate helps block larger materials while allowing water to pass into the channel.
This does not eliminate the need for cleaning. Smaller particles can still pass through the openings, while leaves may collect on the grate surface. Regular inspection is therefore necessary, particularly during wet seasons or in areas surrounded by trees.
Removing surface debris helps preserve the grate’s open area and reduces the likelihood of water bypassing the drain.

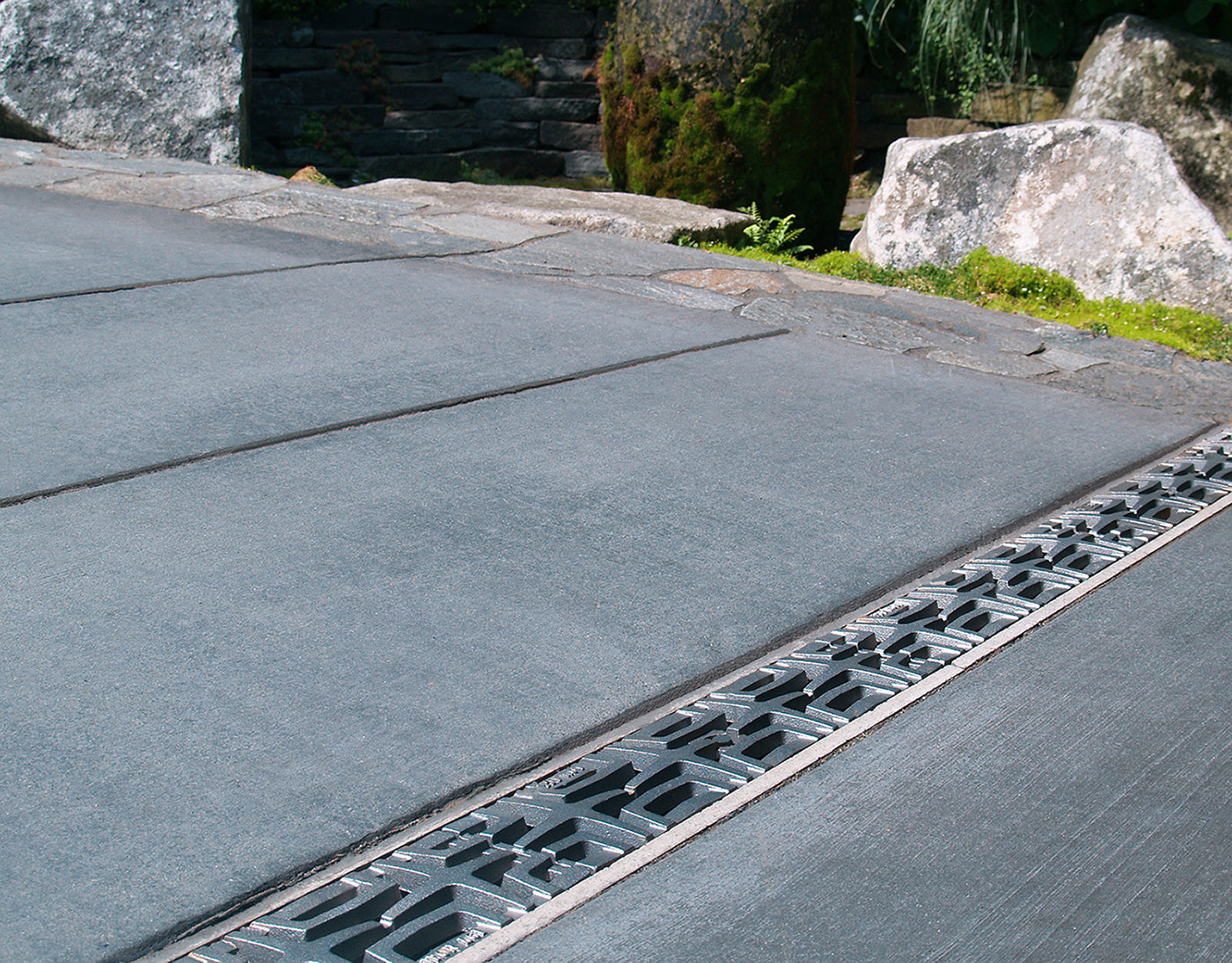

Can CARBOCHON Trench Grates Improve Exterior Drainage Performance?
The answer depends on how the product is selected and incorporated into the overall drainage plan.
CARBOCHON trench grates can support drainage performance when their dimensions, open area, material, and load suitability match the intended application. Their design allows them to cover compatible trench channels while providing an entry point for surface water.
The manufacturer lists several drain-system compatibility options for specific CARBOCHON grate sizes. It also provides measurements, drainage data, material information, and finish choices that can help specifiers compare the grate with project requirements.
Nevertheless, improved drainage requires more than replacing a grate. The surrounding pavement must direct water toward the channel, and the channel must have sufficient fall toward an outlet. Poor grading can leave standing water even when a suitable grate is installed.
Suitable Material Selection
Exterior grates are exposed to rain, moisture, temperature changes, dirt, foot traffic, and sometimes vehicle loads. Material selection should therefore reflect the environment and expected use.
CARBOCHON models may be offered in cast ductile iron, with optional upgrades such as cast aluminium or cast bronze depending on the product configuration. Finish options may also be available.
Ductile iron may be appropriate where strength and durability are important. Aluminium can be considered where lower weight or corrosion resistance is a priority, while bronze may suit architectural applications requiring a distinct appearance. The final choice should be based on verified load ratings, exposure conditions, maintenance expectations, and compatibility with the selected drain body.
Factors That Determine Drainage Results
Correct Channel Sizing
The trench channel must accommodate the runoff generated by the surrounding drainage area. Designers should consider rainfall intensity, surface size, pavement type, slope, and discharge capacity.
If the channel is undersized, water may overflow during heavy rain regardless of the grate design.
Appropriate Surface Grading
Exterior surfaces should slope toward the trench drain. Low spots away from the channel can continue to collect water, while an incorrect slope may direct runoff around the grate instead of through it.
Accurate grading is one of the most important parts of drainage installation.
Secure Installation
The grate and frame should sit evenly within the finished surface. Loose, uneven, or poorly supported components may create movement, noise, trip points, or premature damage.
Installation requirements should follow the drain manufacturer’s technical specifications, particularly where the grate will experience regular pedestrian or vehicle traffic.
Routine Cleaning
Grates should be inspected for leaves, sediment, weeds, and other obstructions. The underlying channel and outlet should also be cleaned periodically.
Maintenance frequency will depend on the location. Landscaped areas and tree-lined properties may require more frequent attention than open paved spaces.
Balancing Drainage and Exterior Design
Drainage components are often visually prominent because they run across entrances, courtyards, paths, or paved landscape areas. A decorative grate can help the drainage system appear integrated rather than added as an afterthought.
The CARBOCHON pattern has a geometric surface that can complement contemporary paving, stonework, and architectural layouts. Decorative appearance should still be considered alongside practical factors such as drainage capacity, slip resistance, opening size, accessibility, load requirements, and ease of cleaning.
A visually suitable grate is most effective when it also matches the technical demands of the site.
Conclusion
CARBOCHON trench grates can contribute to better exterior drainage by allowing runoff to enter a linear drainage channel while covering and protecting the trench below. Their material options, compatible sizes, decorative pattern, and available drainage specifications make them suitable for consideration in a range of exterior projects.
However, overall performance depends on the complete system. Proper channel sizing, surface grading, outlet capacity, installation, material selection, and maintenance are all essential.
Property owners, designers, and contractors should review project-specific drainage calculations and manufacturer specifications before selecting a grate. When incorporated into a correctly designed system, CARBOCHON trench grates can support effective water management while maintaining a clean and coordinated exterior appearance.
