Surface water management is an important part of modern construction and landscape planning. Without a proper drainage system, water can accumulate on driveways, patios, walkways, and commercial surfaces, leading to structural damage, safety risks, and long-term maintenance issues.
A linear drainage system is often used to manage water flow efficiently across flat surfaces. One widely recognized option in this category is the ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge, designed to combine structural strength with reliable drainage performance.explains the design, materials, applications, and advantages of this trench drain system, helping contractors, architects, and property owners understand where it fits within drainage planning.

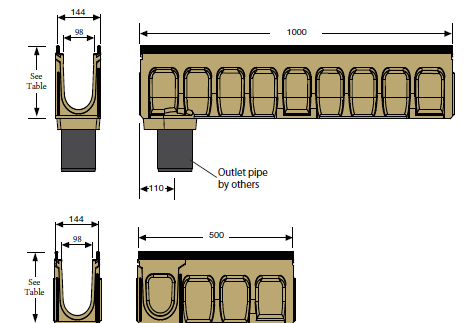

What Is the ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge?
The ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge is a linear drainage channel designed to collect and direct surface water away from paved or landscaped areas. It belongs to a category of drainage products commonly used in residential, commercial, and municipal environments.
This trench drain system typically includes a polymer concrete channel body reinforced with cast iron edges. The combination of these materials creates a durable structure that can handle both water flow and surface load from vehicles or pedestrian traffic.
Because it is modular in design, the trench drain channel can be installed in sections, allowing flexibility for projects of different sizes.
Key Structural Features
The design of trench drainage systems plays a significant role in their durability and efficiency. Several features define the performance of the ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge.
Polymer Concrete Channel Body
Polymer concrete is commonly used in drainage channels because it offers several structural advantages. It is dense, non-porous, and resistant to water penetration. This material helps prevent cracking and deterioration caused by repeated exposure to moisture and environmental changes.
The polymer concrete structure also provides strong compressive strength, which helps support surface loads without deforming.
Cast Iron Reinforced Edge
One of the most important structural elements of this trench drain is the cast iron edge reinforcement. Cast iron edges help protect the channel opening from wear caused by traffic, equipment movement, or repeated grate removal during maintenance.
By reinforcing the channel edges, the system maintains its structural integrity over time.
Modular Channel Sections
Trench drain channels are typically installed in connected sections. This modular design allows installers to extend the drainage line across long surfaces such as driveways, parking areas, or commercial walkways.
The modular approach also simplifies repairs and replacements if a section needs maintenance.
Common Installation Areas
Linear trench drains are used in many environments where surface water needs to be redirected efficiently. The ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge is commonly installed in the following areas.
Residential Driveways
Driveways often collect rainwater during heavy rainfall. Installing a trench drain near garage entrances or driveway slopes helps prevent water from flowing toward buildings.
Patios and Outdoor Living Spaces
Outdoor patios and pool areas benefit from drainage systems that quickly remove standing water. A trench drain placed along the edge of a patio helps maintain a dry and safe surface.
Commercial Walkways
Commercial buildings and public spaces require drainage systems that can handle both pedestrian traffic and occasional service vehicles. The reinforced design of this channel supports these conditions.
Parking Areas
Parking lots and vehicle access zones often need durable drainage channels that withstand frequent traffic. Cast iron reinforced edges help maintain the structural stability of the channel in such environments.
Benefits of Using a Cast Iron Reinforced Drain Channel
Drainage systems must withstand both environmental exposure and structural pressure. The reinforced construction of the ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge provides several advantages.
Structural Durability
The combination of polymer concrete and cast iron reinforcement creates a drainage channel that resists cracking, corrosion, and long-term wear.
Reliable Surface Protection
Cast iron edges prevent damage that might occur if heavy loads or repeated traffic impact the channel opening.
Efficient Water Flow
The internal channel design allows water to move efficiently toward drainage outlets, reducing the likelihood of pooling or overflow.
Long Service Life
Durable materials and reinforced edges help extend the lifespan of the drainage system, reducing maintenance requirements.
Maintenance and Long-Term Performance
Like any drainage system, trench drains require occasional maintenance to remain effective.
Routine cleaning removes debris such as leaves, dirt, or sediment that may accumulate inside the channel. Periodic inspection of grates and channel sections also helps identify wear or damage early.
Because of its reinforced design, the ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge typically requires less structural maintenance compared with standard plastic drainage channels.
Conclusion
Efficient surface drainage helps protect buildings, outdoor spaces, and paved surfaces from water damage. Linear trench drains provide a reliable method of managing runoff in residential and commercial environments.
The ANRIN KF100 4" Trench Drain Channel with Cast Iron Edge combines polymer concrete construction with cast iron reinforcement to create a durable drainage channel suitable for a variety of applications. With proper installation and periodic maintenance, this type of trench drain system supports effective water management while maintaining structural stability over time.
