Effective surface drainage is essential in modern infrastructure projects, particularly in areas exposed to heavy vehicular traffic and high load conditions. The ANRIN KE100 D Load Longitudinal Bar Grating Overview provides a detailed look at a drainage solution designed to meet structural durability, safety standards, and long-term performance requirements. the system’s structural features, load classification, material specifications, installation benefits, and common applications in commercial and industrial environments.
Understanding the ANRIN KE100 Drainage System
The ANRIN KE100 channel system is engineered for surface water management in heavy-duty zones. It is typically used in roadways, loading areas, logistics parks, parking facilities, and industrial premises where structural integrity is critical.
The D load classification indicates that the system is designed to withstand substantial vehicular weight. In European load standards, Class D corresponds to areas exposed to heavy traffic, such as carriageways and industrial access roads.
What Does D Load Classification Mean?
D load (Class D 400) generally supports loads up to 400 kN. This makes it suitable for:
-
Urban roads
-
Service stations
-
Industrial yards
-
Delivery bays
-
Public infrastructure zones
Selecting a grating with the appropriate load classification ensures long-term structural stability and minimizes maintenance requirements.
Longitudinal Bar Grating Design

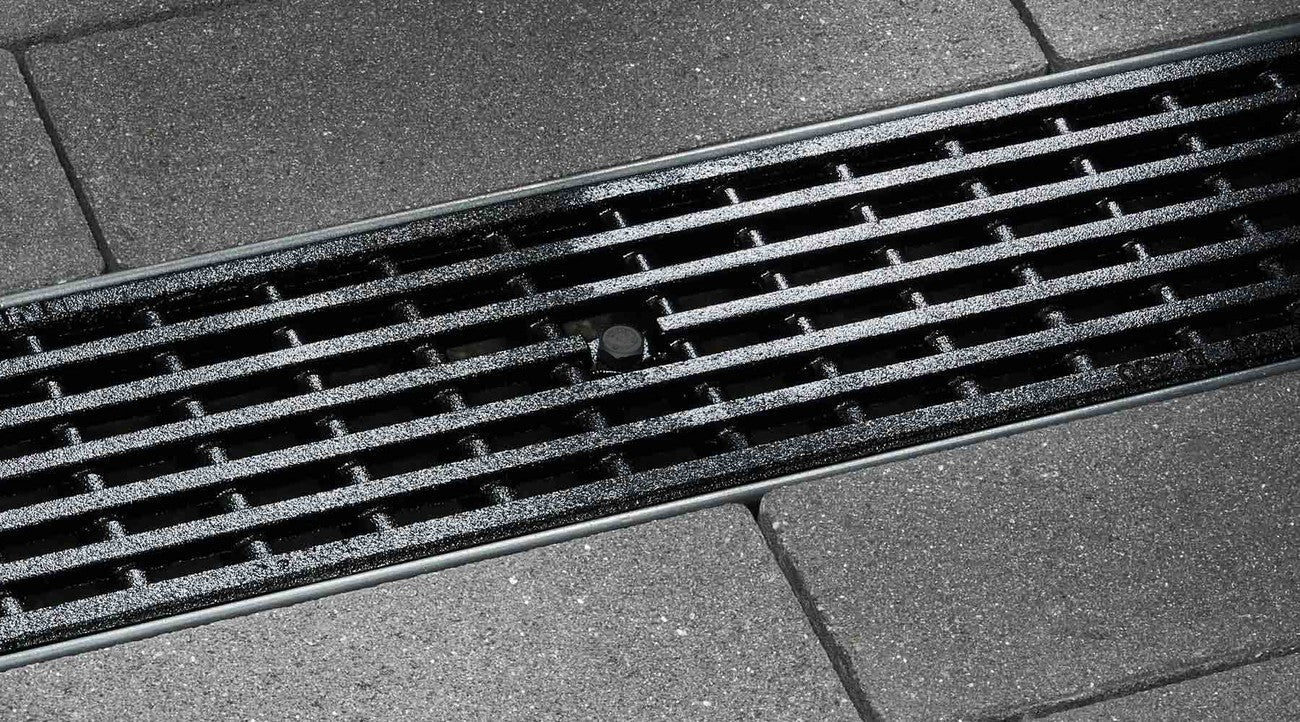

One of the defining features in the ANRIN KE100 D Load Longitudinal Bar Grating Overview is its longitudinal bar configuration. Unlike cross-pattern or mesh gratings, longitudinal bars run parallel to the drainage channel.
Key Design Advantages
1. Improved Drainage Flow
The longitudinal orientation allows efficient water intake while directing debris toward the flow path. This helps maintain consistent drainage performance.
2. Enhanced Structural Strength
The alignment of bars supports load distribution along the channel’s axis, improving resistance against heavy vehicle movement.
3. Safety and Traction
The surface design reduces slip risks for both pedestrians and vehicles. It also minimizes vibration and noise during traffic movement.
4. Reduced Wheel Impact
Longitudinal bars create smoother transitions for tires, which is especially important in logistics and industrial environments.
Materials and Construction Quality
The durability of a drainage system largely depends on its material composition. The ANRIN KE100 system is commonly manufactured using reinforced concrete or polymer concrete channels combined with galvanized steel or ductile iron gratings.
Corrosion Resistance
Galvanized or coated steel gratings offer corrosion resistance in outdoor and exposed environments. This is essential for installations subject to moisture, chemicals, and temperature variation.
Structural Stability
Polymer concrete channels provide high compressive strength and resistance to freeze-thaw cycles. This makes them suitable for long-term infrastructure projects.
Material selection directly influences maintenance frequency and lifecycle costs, making it a critical consideration in project planning.
Installation Considerations
Proper installation is necessary to achieve full performance from any load-rated drainage system. The ANRIN KE100 channel requires:
-
Stable sub-base preparation
-
Concrete bedding appropriate for D load rating
-
Accurate leveling to ensure proper water flow
-
Secure grating fixation to prevent displacement
Incorrect installation may reduce load-bearing capacity or cause premature wear.
Maintenance Requirements
Routine inspection and cleaning are recommended to prevent debris accumulation. However, the longitudinal bar structure typically allows easier maintenance compared to mesh-style alternatives.
Applications in Infrastructure Projects
The ANRIN KE100 D Load Longitudinal Bar Grating Overview highlights its suitability across multiple sectors.
Road and Transport Infrastructure
Urban streets and carriageways require drainage systems that can withstand continuous traffic loads. Class D systems provide the required safety margin.
Industrial and Logistics Facilities
Warehouses and distribution centers involve heavy trucks, forklifts, and equipment. Longitudinal bar gratings reduce impact stress and provide stable surface performance.
Public and Commercial Areas
Parking structures, commercial complexes, and public transport terminals benefit from durable drainage solutions that balance strength and surface safety.
Compliance and Safety Standards
Drainage systems installed in traffic zones must meet regulatory standards. The KE100 D load classification aligns with EN 1433 standards for drainage channels used in vehicular areas.
Compliance ensures:
-
Structural safety
-
Load performance verification
-
Standardized quality benchmarks
-
Reduced liability risks
For engineers and contractors, certified load classes simplify specification and procurement decisions.
Why Load Classification Matters in Drainage Planning
Choosing a drainage system without proper load evaluation can lead to structural failure, cracking, or grating displacement. The ANRIN KE100 D Load Longitudinal Bar Grating Overview emphasizes the importance of aligning product selection with traffic type, frequency, and environmental exposure.
Factors to assess include:
-
Maximum axle loads
-
Traffic intensity
-
Environmental conditions
-
Surface material compatibility
Proper planning reduces repair costs and ensures consistent water management.
Performance and Long-Term Value
Heavy-duty drainage systems are long-term infrastructure investments. The KE100 system combines structural strength with efficient water management.
Key performance considerations include:
-
High load resistance
-
Corrosion protection
-
Efficient water intake
-
Minimal maintenance disruption
-
Compatibility with large-scale construction projects
When installed correctly, a Class D longitudinal bar grating can operate effectively for years under demanding conditions.
Conclusion
The ANRIN KE100 D Load Longitudinal Bar Grating Overview provides insight into a drainage solution engineered for strength, durability, and functional efficiency. Its D load classification ensures suitability for heavy traffic environments, while the longitudinal bar design supports stable water flow and structural reliability.
For infrastructure planners, contractors, and engineers, selecting the correct load-rated drainage system is a critical decision. The KE100 system offers a balanced approach between load capacity, corrosion resistance, and long-term operational performance.
Understanding its design features, compliance standards, and application scope helps ensure that drainage infrastructure meets both safety requirements and project durability expectations.
