A Buyer’s Guide to 3m and 9m Complete Trench Drain Kits

Efficient water management plays a crucial role in maintaining the durability and safety of outdoor and indoor spaces. Whether it’s a residential driveway, an industrial site, or a commercial property, controlling surface runoff prevents damage and ensures a safe, dry environment. Trench drain systems are one of the most effective solutions for this purpose. In this guide, we’ll explore 3m and 9m complete trench drain kits, helping you understand what they include, how they differ, and which one best fits your needs.

Understanding Trench Drain Systems

Trench drains are long, narrow channels installed in the ground to collect and redirect surface water. They are commonly found in areas where heavy water flow occurs, such as driveways, patios, parking lots, garages, and pool decks.

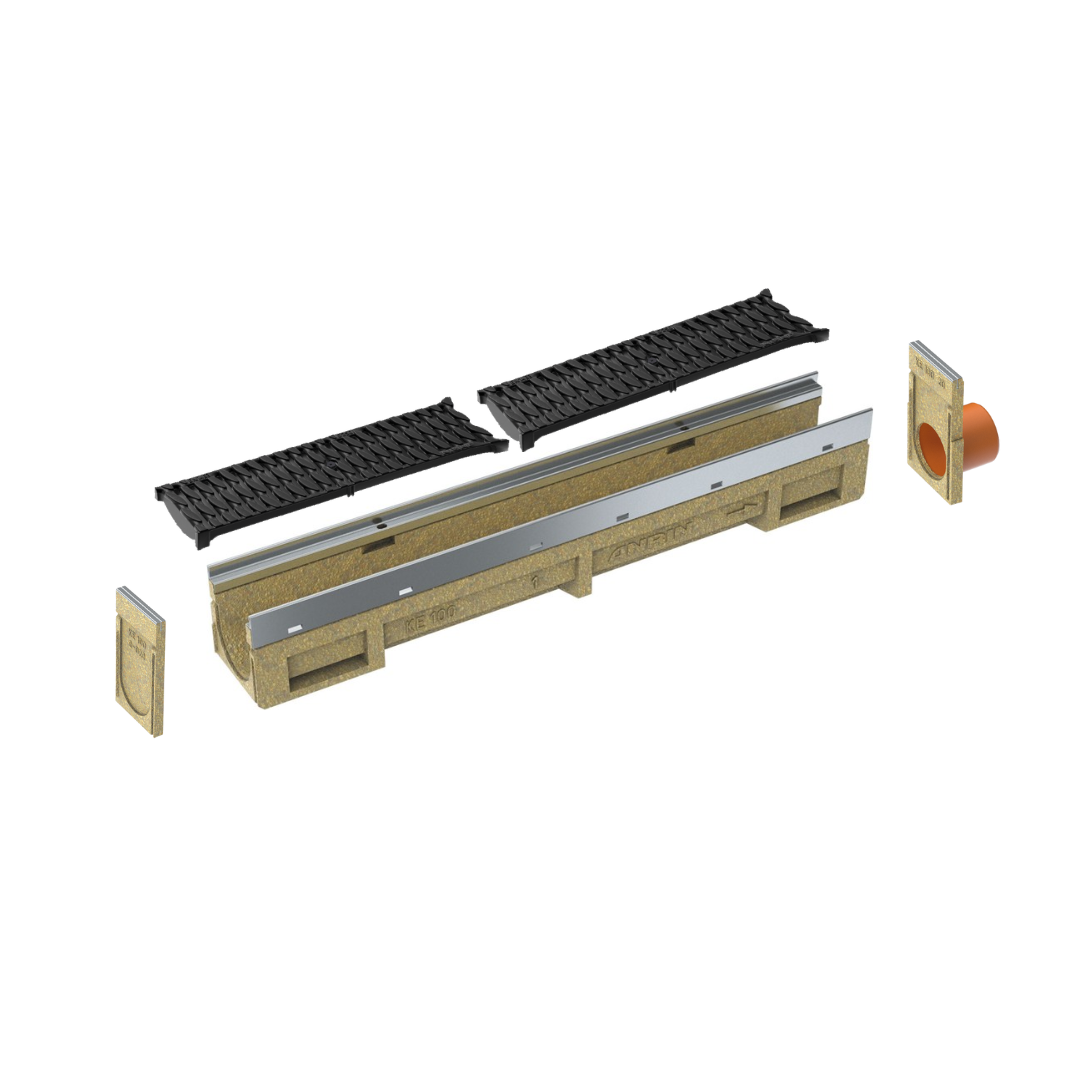

Each trench drain consists of a few essential components:

• Channel sections that guide the water.



• Grates that cover the top for protection and aesthetics.



• End caps and outlets that connect to discharge pipes or underground drainage lines.

A complete trench drain kit includes all these parts in one package, making installation more convenient and ensuring compatibility between components.

What Are 3m and 9m Complete Trench Drain Kits?

Trench drain kits are typically categorized by their total length. The 3m kit covers smaller projects, while the 9m kit suits larger installations. Both kits are designed to provide reliable surface water drainage, but their scale and intended uses differ.

3m Complete Trench Drain Kit

The 3m trench drain kit usually contains:

• Three 1m channel sections



• Interlocking grates



• End caps and outlet adaptors



• Screws and accessories for assembly



It’s suitable for smaller spaces such as:

• Driveway entrances



• Residential garages



• Patio edges



• Garden paths



This kit offers a balance between efficiency and simplicity, ideal for homeowners who want a quick installation without the need for specialized tools.

9m Complete Trench Drain Kit

The 9m trench drain kit includes nine 1m channel sections with all necessary fittings. It provides extended coverage, making it suitable for:

• Commercial parking lots



• Long driveways



• Industrial loading areas



• Warehouse entrances



The 9m system allows continuous drainage over a larger area, reducing pooling and erosion caused by heavy rainfall or vehicle runoff.

Comparing 3m vs 9m Trench Drain Kits

When deciding between a 3m or 9m complete trench drain kit, the choice depends on your project’s size, water flow, and budget. Here are the main comparison points:

A 3m kit is ideal for short drainage runs, while a 9m kit is more efficient for continuous or high-volume water management.

Material and Grate Options

Trench drain kits come in various materials that affect durability, appearance, and maintenance.

Channel Materials

1. Polypropylene (Plastic) – Lightweight, corrosion-resistant, and easy to install. Common for residential projects.



2. Polymer Concrete – Offers excellent strength and resistance to chemicals, ideal for driveways or light industrial use.



3. Stainless Steel – Suitable for commercial kitchens or chemical areas due to corrosion resistance.

Grate Materials

1. Plastic Grates – Affordable and sufficient for low-traffic areas.



2. Galvanized Steel Grates – Provide strength and are suitable for medium-duty applications.



3. Cast Iron Grates – Withstand heavy loads, perfect for driveways or industrial zones.

Choosing the right combination of channel and grate materials ensures long-lasting performance and minimal maintenance.

Installation Tips for Trench Drain Kits

Installing a trench drain system may look complex, but complete kits simplify the process. Below are general installation steps:

1. Plan the Layout:
   Measure the total drainage length and identify where the collected water will exit.



2. Excavate the Trench:
   Dig a channel slightly wider and deeper than the trench drain sections.



3. Prepare the Base:
   Add a stable gravel or concrete base to support the channels.



4. Assemble and Position the Channels:
   Connect the 1m sections using the provided connectors. Ensure they slope slightly toward the outlet for smooth water flow.



5. Secure and Level:
   Pour concrete around the edges to stabilize the channels, ensuring the top grates are level with the surrounding surface.



6. Finish and Test:
   Replace grates after installation and pour water to confirm efficient flow toward the outlet.

These steps can be applied to both 3m and 9m trench drain kits, though larger installations may require additional support or multiple outlets.

Maintenance and Longevity

Regular maintenance ensures your trench drain functions effectively for years.

• Remove debris: Clear leaves, dirt, or stones from grates.



• Flush the channels: Occasionally run water through to remove sediment.



• Inspect fittings: Check for cracks or dislodged end caps, especially after heavy rainfall.

A well-maintained system prevents water stagnation, odors, and potential surface damage.

Cost Considerations

The cost of trench drain kits varies based on length, material, and brand.

• 3m kits are more budget-friendly, typically ranging from $60–$120 depending on material quality.



• 9m kits can cost $150–$350, reflecting their longer length and additional components.

Installation costs may increase for concrete embedding or extended underground piping, but pre-packaged kits minimize waste and simplify ordering.

Choosing Between 3m and 9m Trench Drain Kits

Selecting the right trench drain kit depends on your specific requirements:

• Choose a 3m trench drain kit if you’re managing light runoff in small areas such as patios or garage entrances.



• Opt for a 9m trench drain kit for larger spaces with high water flow or heavy vehicle traffic.

Both kits provide durable solutions when installed correctly and maintained regularly.

Conclusion

Trench drain systems are vital for maintaining clean, dry, and safe outdoor spaces. Understanding the difference between 3m and 9m complete trench drain kits helps you make an informed decision based on your project’s size, water flow, and budget.

By selecting the appropriate materials, following correct installation steps, and performing routine maintenance, your trench drain system can deliver reliable water management for years to come
